Toyota COROLLA 车侧通风装置 — Figure 6102

Toyota COROLLA EPC diagram 6102, 车侧通风装置, with 2 images and 9 PNC and OE references.

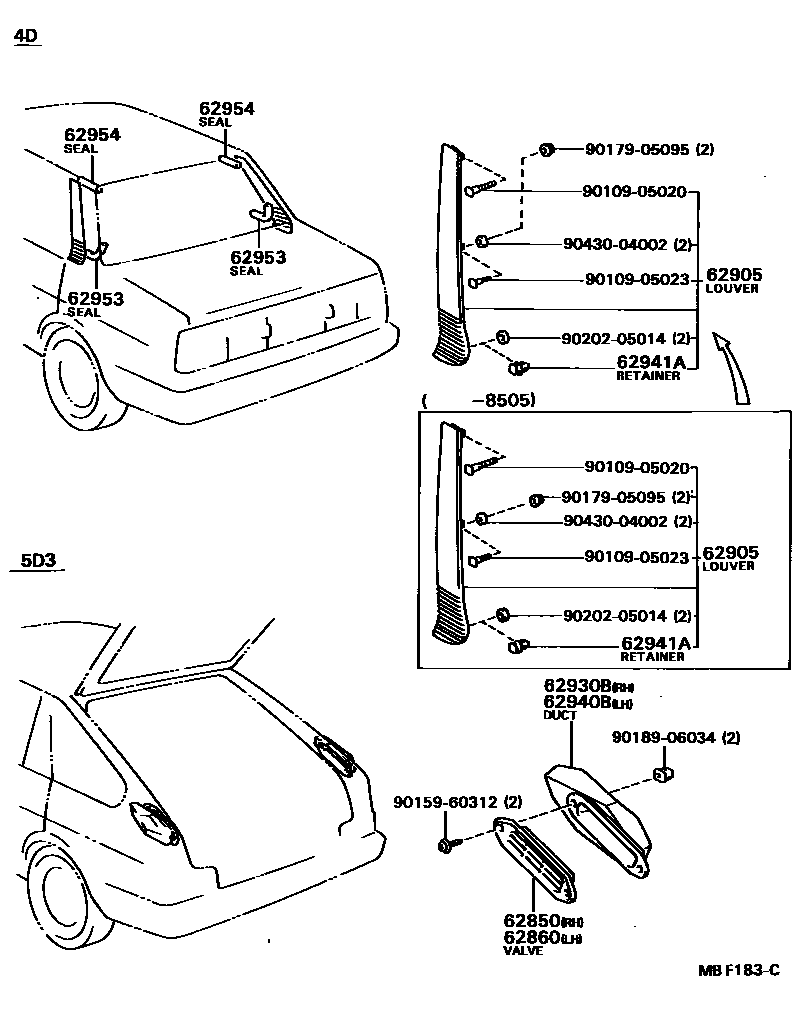

Toyota COROLLA 车侧通风装置 EPC diagram — MBF183C
车侧通风装置 — MBF183C (198305 – 999999)

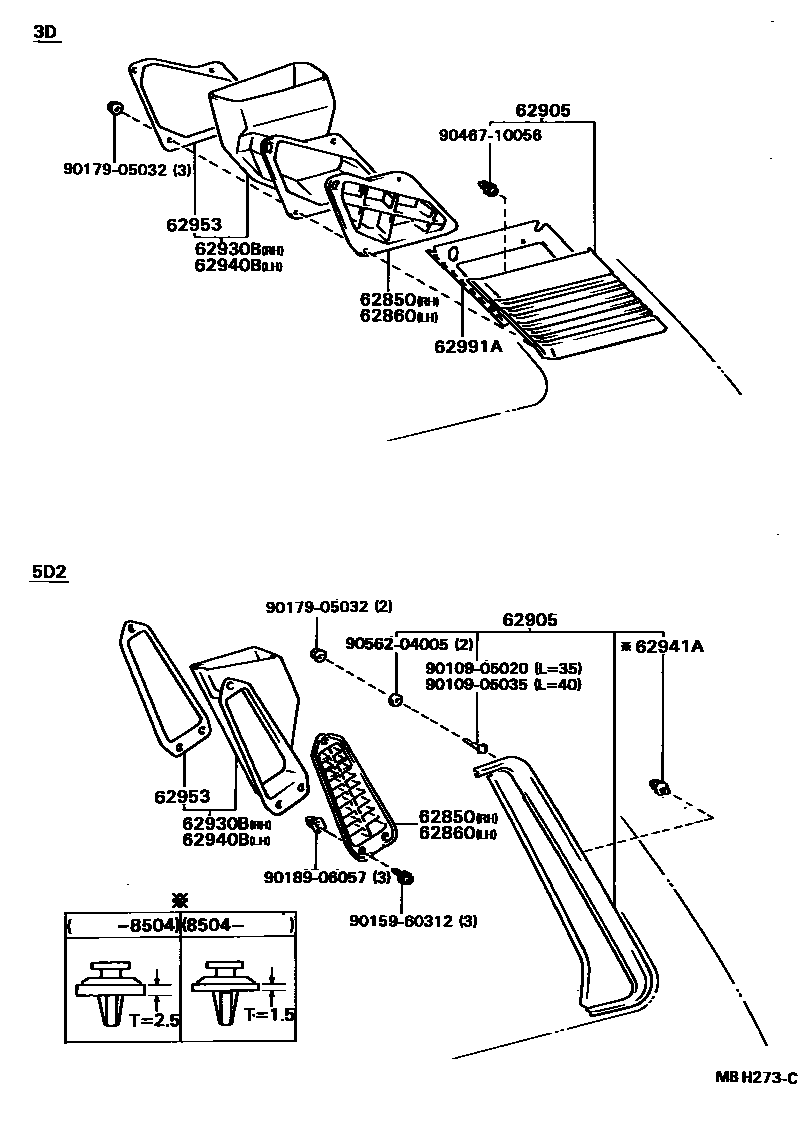

Toyota COROLLA 车侧通风装置 EPC diagram — MBH273C
车侧通风装置 — MBH273C (198410 – 999999)

PNC and OE references

PNCPart nameOE numbers
62850Right compartment pressure reducing valve assembly62850-12050 · 62850-12060 · 62850-12070
62860Left compartment pressure reducing valve assembly62850-12050 · 62850-12070 · 62860-12060
62905Side ventilation grilles62905-12260 · 62905-12270 · 62905-12280 · 62905-12290 · 62905-12300 · 62905-19335 · 62906-12260 · 62906-12270 · 62906-12280 · 62906-12290 · 62906-12300 · 62906-19315
62930BRight side ventilation duct assembly62931-12180 · 62931-12190 · 62931-12200
62940BLeft side ventilation duct assembly62932-12180 · 62932-12190 · 62932-12200
62941ASide ventilation duct fixings62955-12010 · 62955-20020
62953Side ventilation duct No. 1 seal62957-12050 · 62957-12080 · 62957-12090
62954Side ventilation duct No. 2 seal62958-12010
62991ASide ventilation grille lining62991-12080
