Toyota COROLLA 前围板和挡风玻璃 — Figure 5503

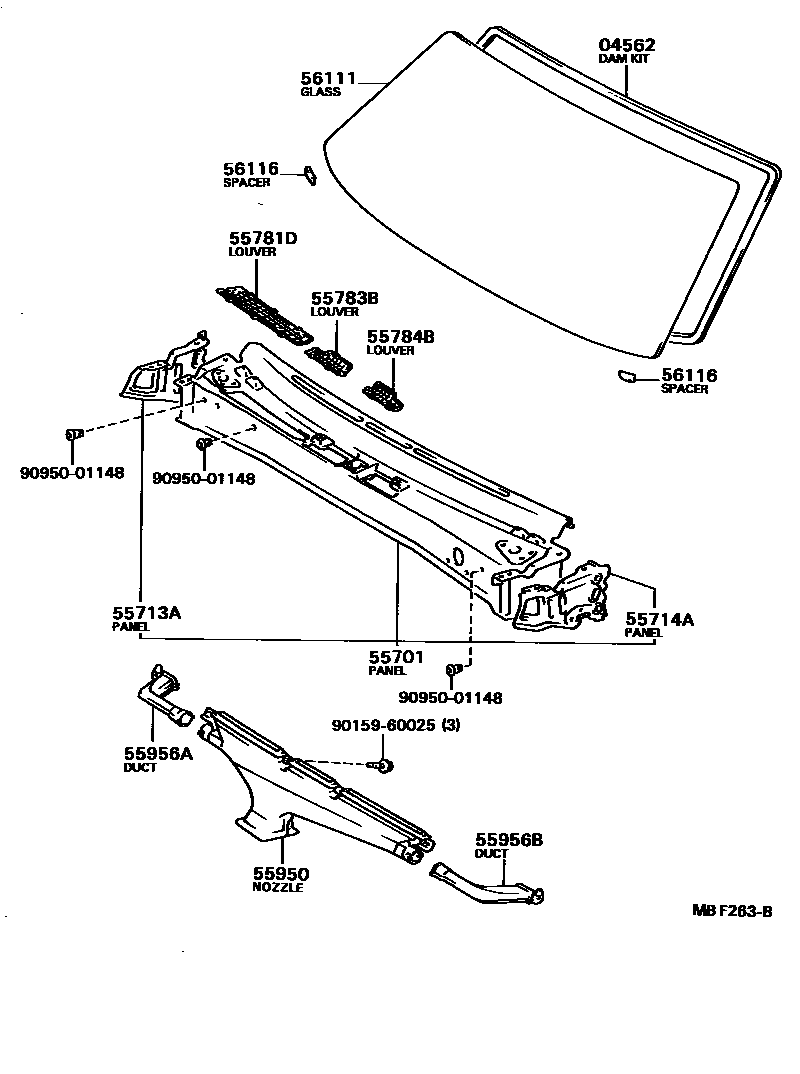

Toyota COROLLA EPC diagram 5503, 前围板和挡风玻璃, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04562 | Windshield sealing strip assembly | 04562-30030 · 04562-30040 |
| 55701 | Front apron sub-assembly | 55700-12270 · 55700-12280 · 55700-12310 · 55700-12340 |
| 55713A | Right front wall upper side panel | 55713-12060 |
| 55714A | Left front wall upper side panel | 55714-12060 |
| 55781D | Ventilation grille on right front apron | 55781-12130 |
| 55783B | Ventilation grille on center cowl No. 1 | 55783-12160 · 55783-12190 |
| 55784B | Ventilation grille on center cowl No. 2 | 55784-12030 · 55784-12060 |
| 55950 | Defroster nozzle assembly | 55950-12060 |
| 55956A | Side defroster No. 1 nozzle air duct | 55970-12040 |
| 55956B | Side defroster No. 2 nozzle air duct | 55980-12030 |
| 56111 | windshield | 56111-12530 · 56111-12540 · 56111-12550 · 56111-12560 · 56111-12570 · 56111-12600 · 56111-12610 · 56111-12620 · 56111-12660 · 56111-12720 · 56111-12770 · 56111-12780 |
| 56116 | windshield spacer | 56116-24010 |
