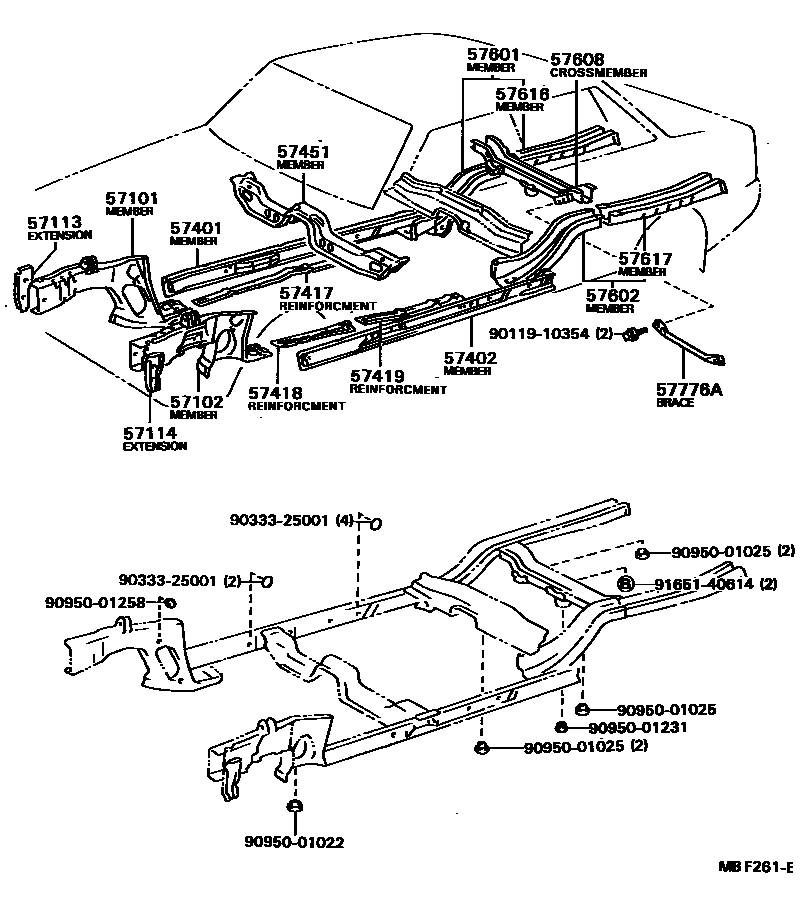

Toyota COROLLA Floor stringers — Figure 5305
Toyota COROLLA EPC diagram 5305, Floor stringers, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57101 | Right front longitudinal beam sub-assembly | 57101-12230 · 57101-12291 · 57101-20330 |
| 57102 | Left front longitudinal beam sub-assembly | 57102-12230 · 57102-12291 · 57102-20310 |
| 57113 | Right front longitudinal beam extension | 57113-12090 |
| 57114 | Left front longitudinal beam extension | 57114-12090 |
| 57401 | Main floor right longitudinal beam sub-assembly | 57401-12180 · 57401-12200 · 57401-12220 · 57401-12230 |
| 57402 | Main floor left longitudinal beam sub-assembly | 57402-12180 · 57402-12200 · 57402-12220 · 57402-12230 |
| 57417 | Front floor lower right reinforcement | 57417-12060 · 57417-12070 |
| 57418 | Front floor lower left reinforcement | 57418-20030 · 57418-20040 |
| 57419 | Front floor No. 2 lower left reinforcement | 57419-12010 · 57419-12020 |
| 57451 | front floor cross member | 57408-12040 |
| 57601 | Rear floor right longitudinal beam sub-assembly | 57601-12340 · 57601-12350 · 57601-12370 · 57601-12400 · 57601-12410 · 57601-12420 · 57601-12450 · 57601-12460 |
| 57602 | Rear floor left longitudinal beam sub-assembly | 57602-12310 · 57602-12320 · 57602-12360 · 57602-12390 |
| 57608 | Rear floor No. 2 cross member sub-assembly | 57606-12050 · 57606-12070 |
| 57616 | Rear floor right rear longitudinal member | 57615-16900 · 57615-16902 |
| 57617 | Rear floor left rear longitudinal member | 57616-16900 · 57616-16902 |
| 57776A | Rear lower arm bracket | 57776-12010 |
