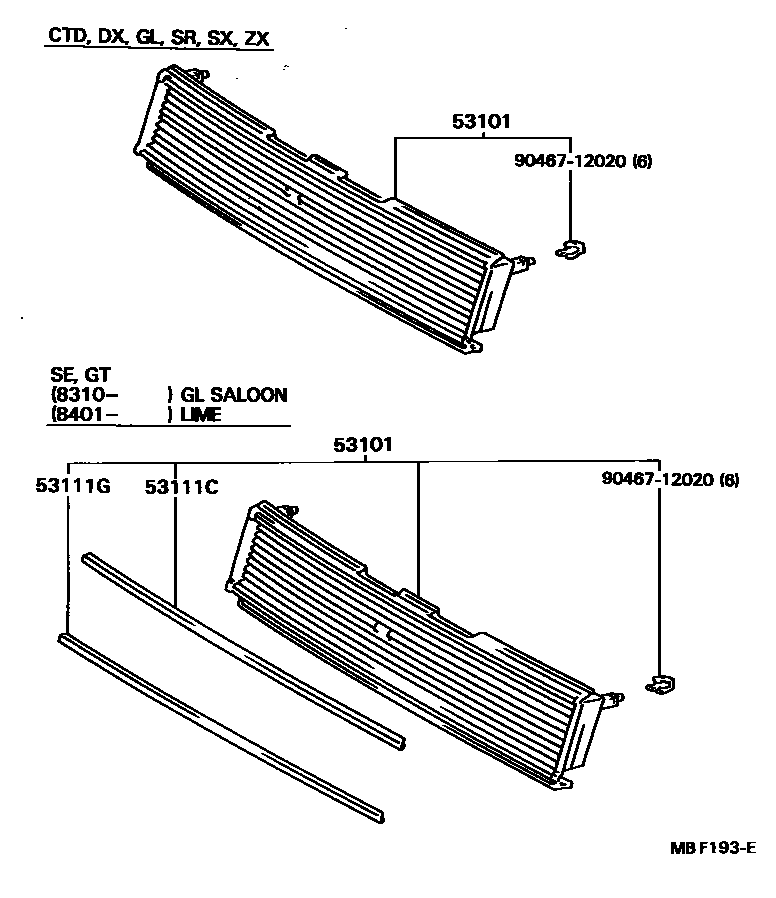

Toyota COROLLA radiator grille — Figure 5301
Toyota COROLLA EPC diagram 5301, radiator grille, with 3 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53101 | Radiator grille sub-assembly | 53101-12500 · 53101-12520 · 53101-12530 · 53101-12560 · 53101-12580 · 53101-12590 |
| 53111C | Protective strips on radiator grille | 53121-12150 |
| 53111G | Radiator grille lower protective strip | 53122-12130 |

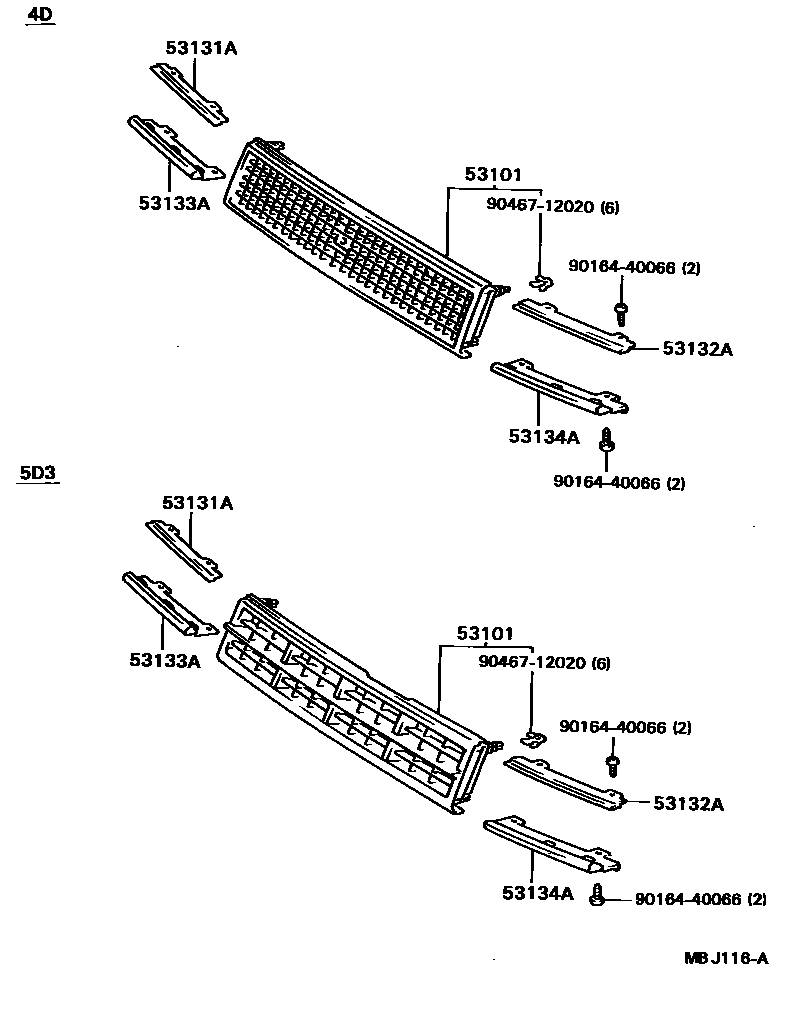

| 53131A | Right headlight lampshade | 53131-12340 · 53131-12350 |
| 53132A | Left headlight lampshade | 53132-12250 · 53132-12260 |
| 53133A | Lower right headlight lampshade | 53133-12030 · 53133-12031 · 53133-12040 |
| 53134A | Lower left headlight lampshade | 53134-12040 · 53134-12041 · 53134-12050 |
