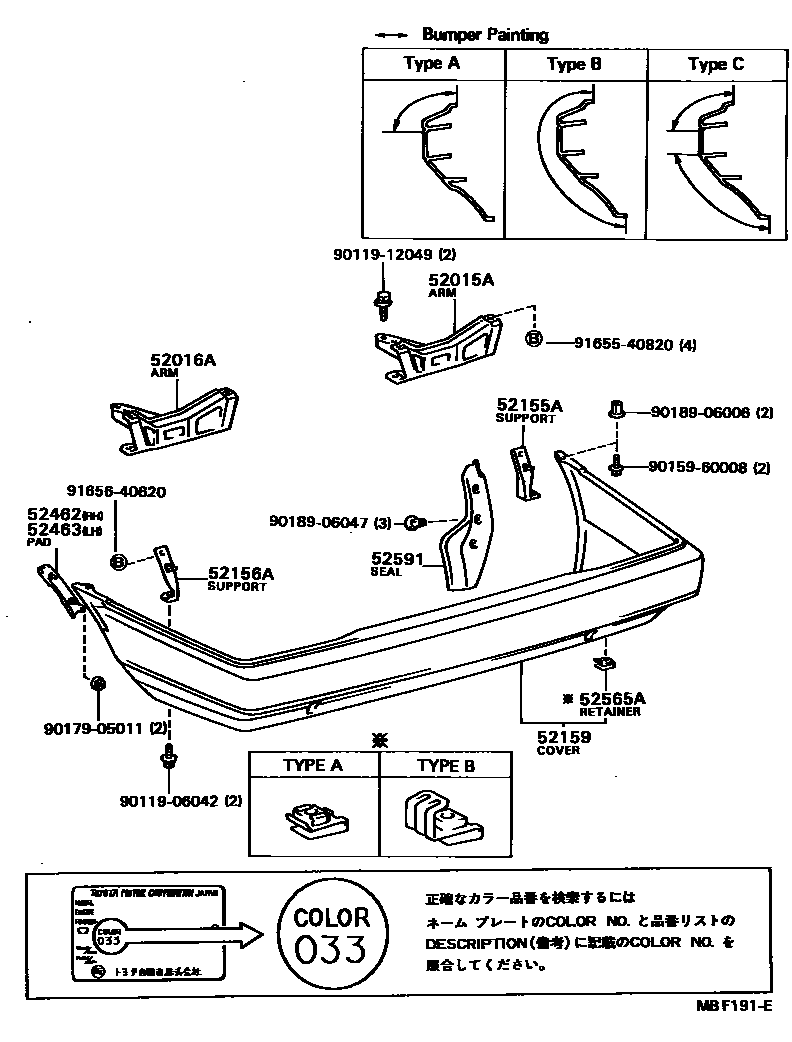

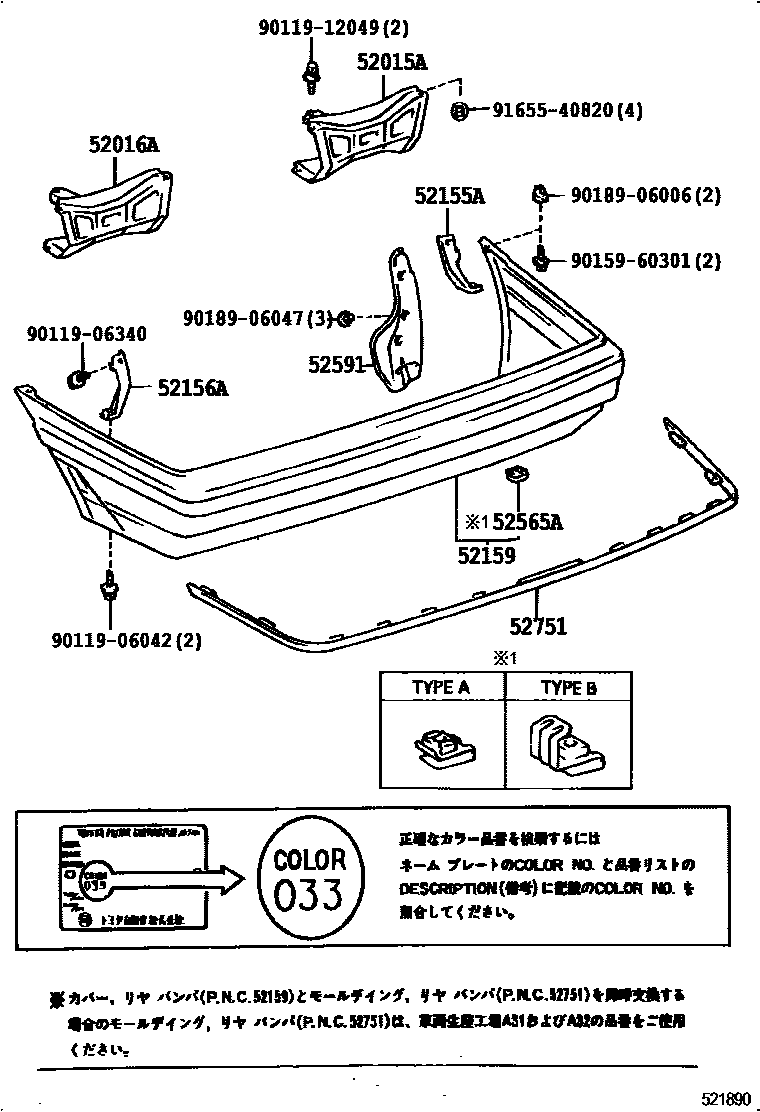

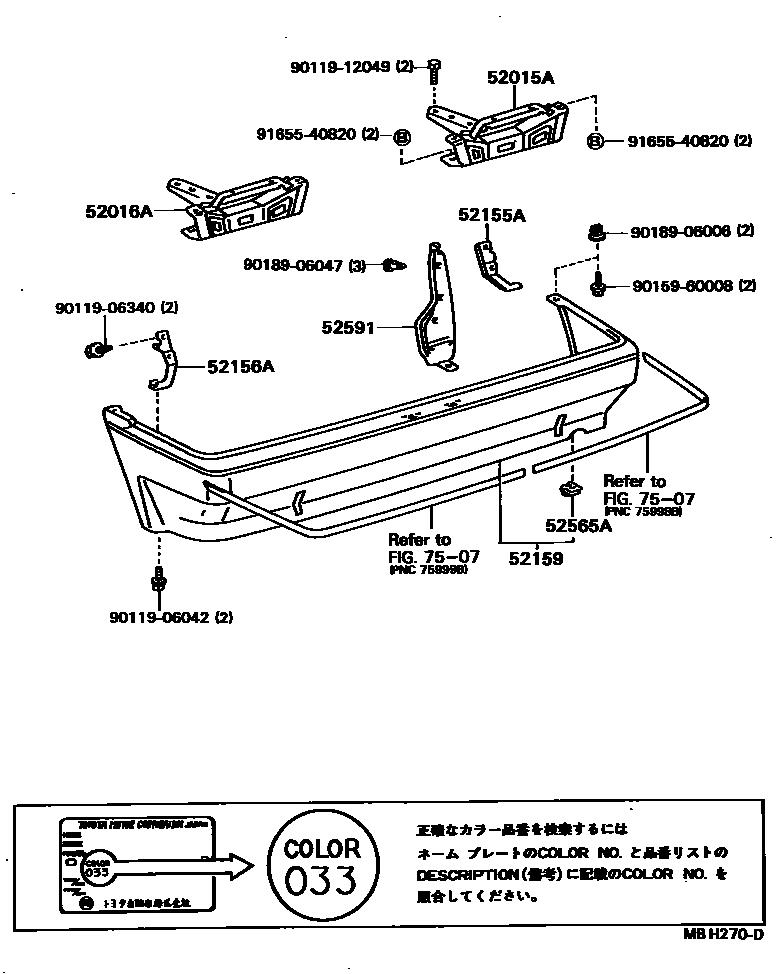

Toyota COROLLA 后保险杠及附件 — Figure 5202
Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 3 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52015A | Rear bumper right arm sub-assembly | 52015-12140 · 52015-12141 · 52015-12180 |
| 52016A | Rear bumper left arm sub-assembly | 52016-12140 · 52016-12141 · 52016-12170 |
| 52155A | Rear bumper right side bracket | 52155-12120 · 52155-12130 · 52155-12140 |
| 52156A | Rear bumper left bracket | 52156-12100 · 52156-12110 · 52156-12120 |
| 52159 | rear bumper cover | 52159-12130 · 52159-12131 · 52159-12140 · 52159-12141 · 52159-12200 · 52159-12280 · 52159-12500 · 52159-12520 |
| 52462 | Rear bumper right side lining | 52462-12020 |
| 52463 | Rear bumper left lining | 52463-12020 |
| 52565A | Rear bumper lower fixing bracket | 52565-12040 · 52565-12050 |
| 52591 | Rear bumper right seal | 52591-12020 · 52591-12030 · 52591-12040 |
| 52751 | Rear bumper protection strip | 52751-12030 · 52751-12060 · 52751-12070 · 52751-12090 · 52751-12100 · 52751-12110 |
