Toyota COROLLA 前保险杠及附件 — Figure 5201

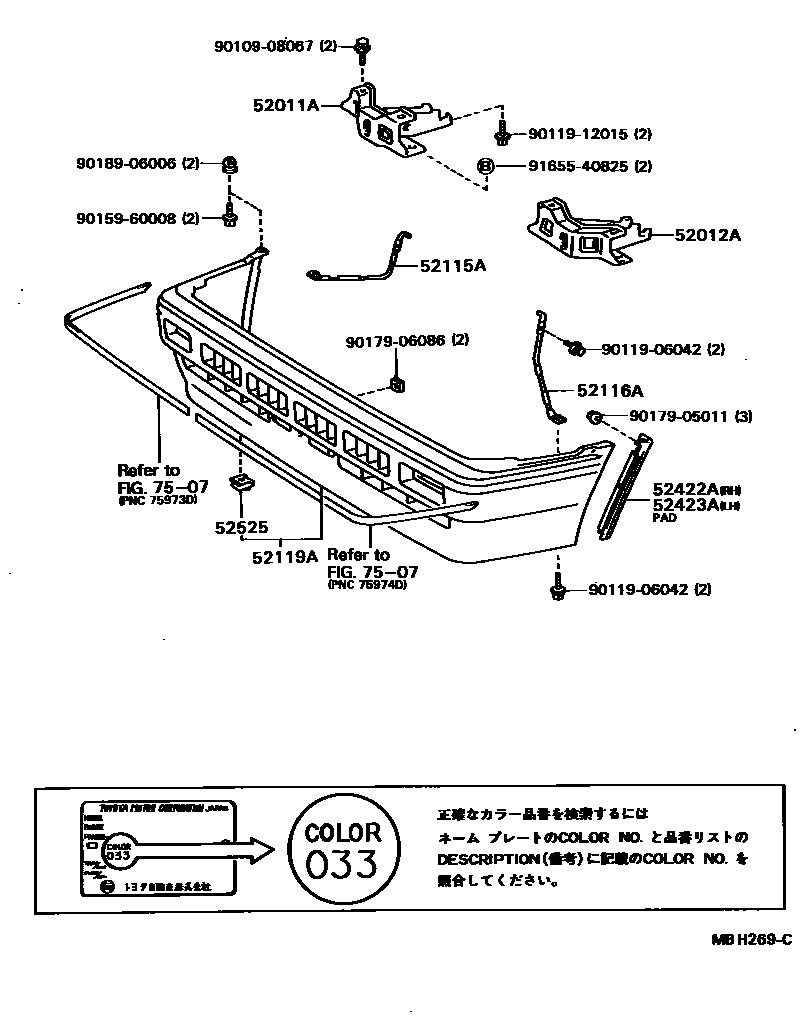

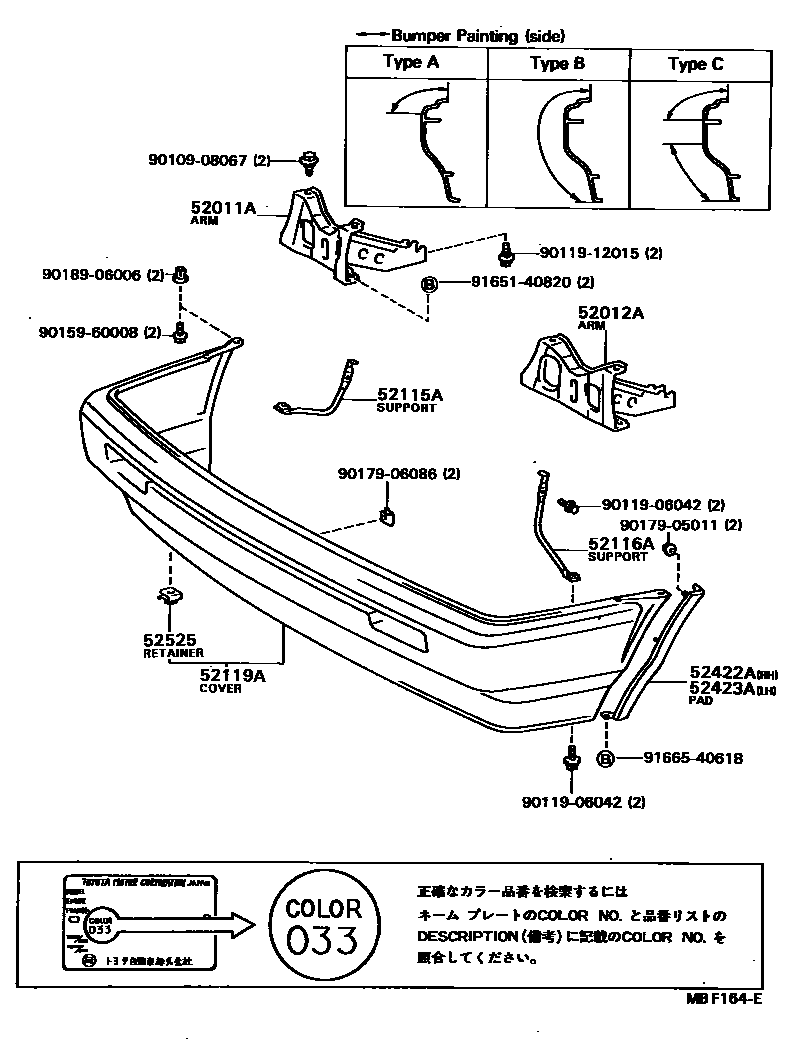

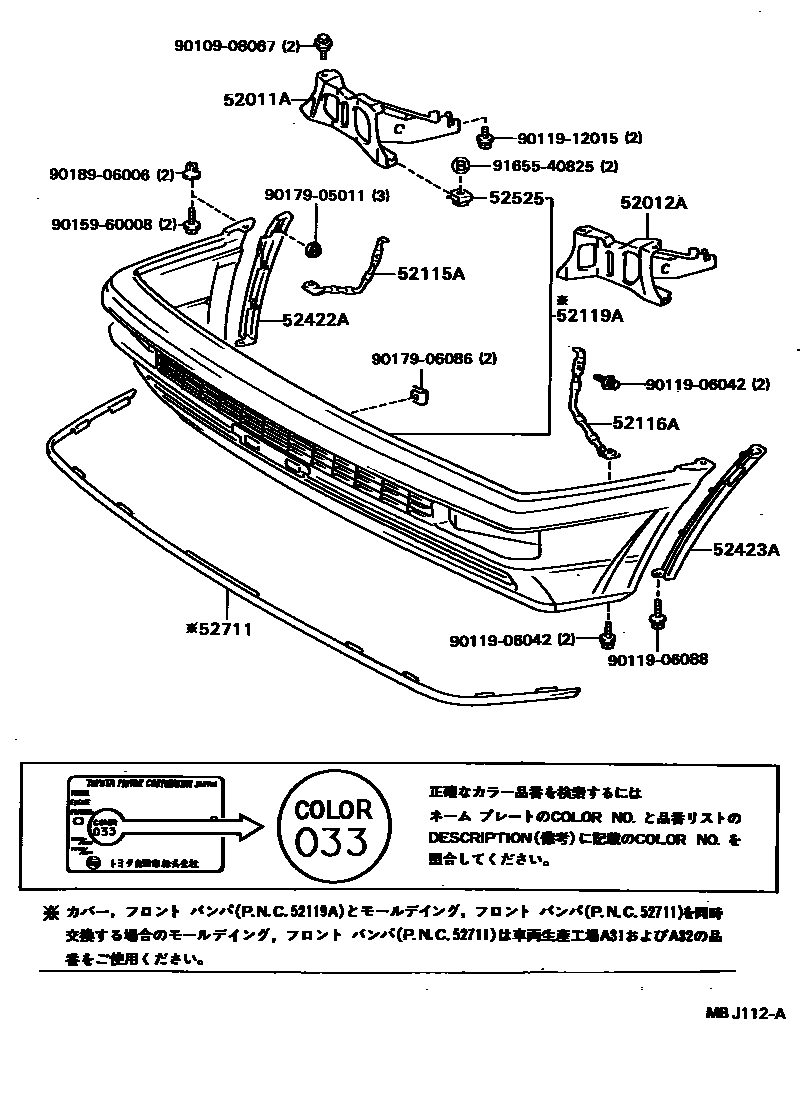

Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52011A | Front bumper right arm sub-assembly | 52011-12250 · 52011-12310 · 52011-12330 |
| 52012A | Front bumper left arm sub-assembly | 52012-12250 · 52012-12310 · 52012-12340 |
| 52115A | Front bumper right side bracket | 52115-12180 · 52115-12200 · 52115-12220 |
| 52116A | Front bumper left bracket | 52116-12130 · 52116-12150 · 52116-12170 |
| 52119A | front bumper cover | 52119-12180 · 52119-12181 · 52119-12270 · 52119-12410 · 52119-12680 |
| 52422A | Front bumper right side lining | 52422-12040 · 52422-12050 · 52422-12100 |
| 52423A | Front bumper left lining | 52423-12030 · 52423-12040 · 52423-12090 |
| 52525 | Front bumper lower center fixing bracket | 52565-12040 |
| 52711 | Front bumper protection strip | 52711-12050 · 52711-12070 · 52711-12090 · 52711-12100 |
