Toyota COROLLA 制动配管和卡箍 — Figure 4708

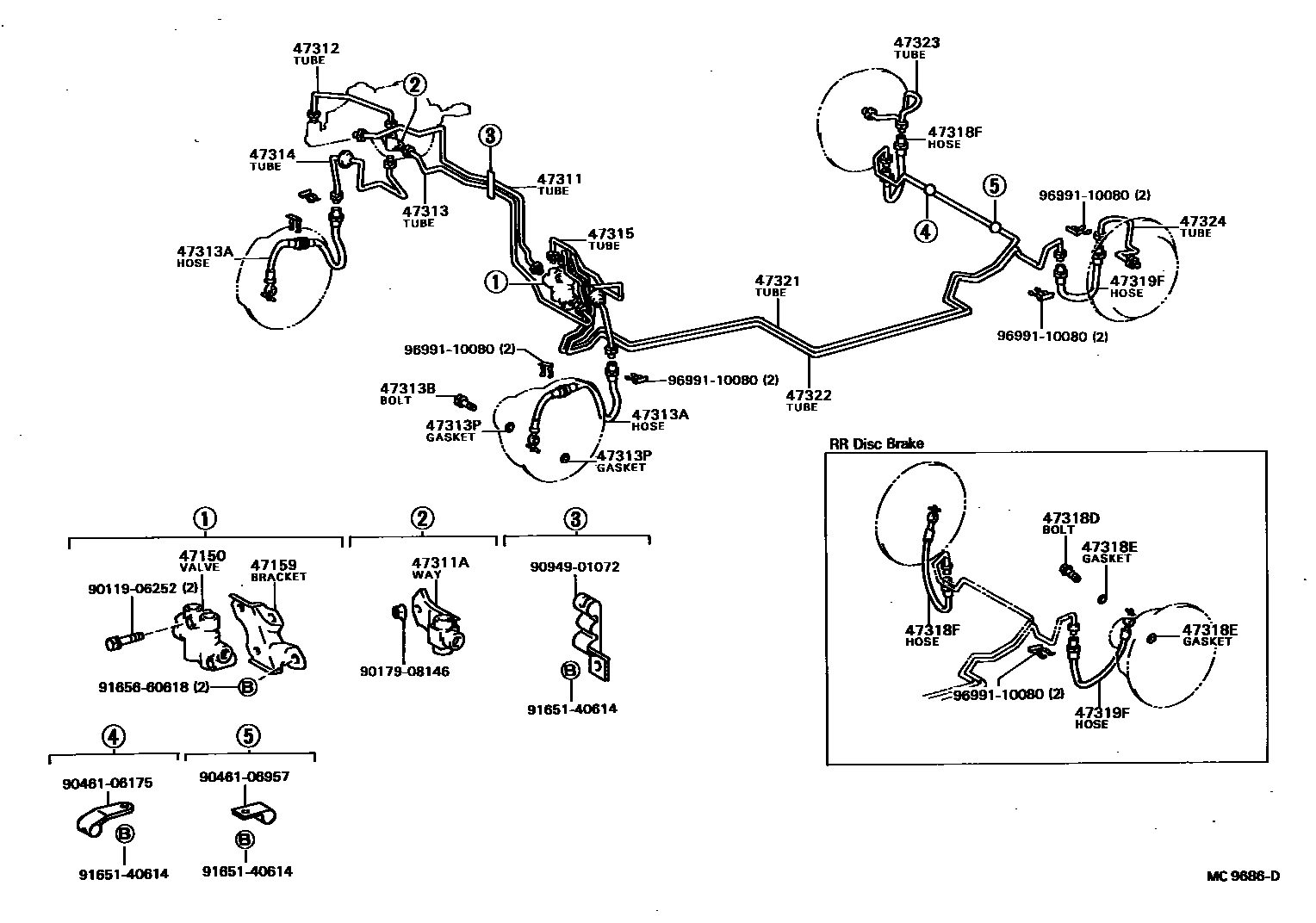

Toyota COROLLA EPC diagram 4708, 制动配管和卡箍, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47150 | Proportional valve assembly | 47150-12050 · 47150-12070 |
| 47159 | Proportional valve bracket | 47159-12040 |
| 47311 | No. 1 front brake pipe | 47311-12340 |
| 47311A | Pipe fitting (for front brake pipe) | 90413-10164 |
| 47312 | No. 2 front brake pipe | 47312-12200 · 47312-12240 |
| 47313 | No. 3 front brake pipe | 47313-12150 |
| 47313A | No. 1 front flexible hose | 90947-02454 · 90947-02455 |
| 47313B | Connector bolt (for front flex hose) | 90401-10015 |
| 47313P | Gasket (for front flex hose) | 90430-10074 |
| 47314 | No. 4 front brake pipe | 47314-12190 |
| 47315 | No. 5 front brake pipe | 47315-12330 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10015 |
| 47318E | Gasket (for rear flex hose) | 90430-10074 |
| 47318F | Right rear flexible hose | 90947-02463 · 90947-02465 · 96950-33505 |
| 47319F | Left rear flexible hose | 90947-02463 · 90947-02465 · 96950-33505 |
| 47321 | No. 1 rear brake pipe | 47321-12010 |
| 47322 | No. 2 rear brake pipe | 47322-12120 |
| 47323 | No. 3 rear brake pipe | 47323-12140 · 47323-12200 |
| 47324 | No. 4 rear brake pipe | 47324-12100 · 47324-12160 |
