Toyota COROLLA Steering Column & Shaft — Figure 4501

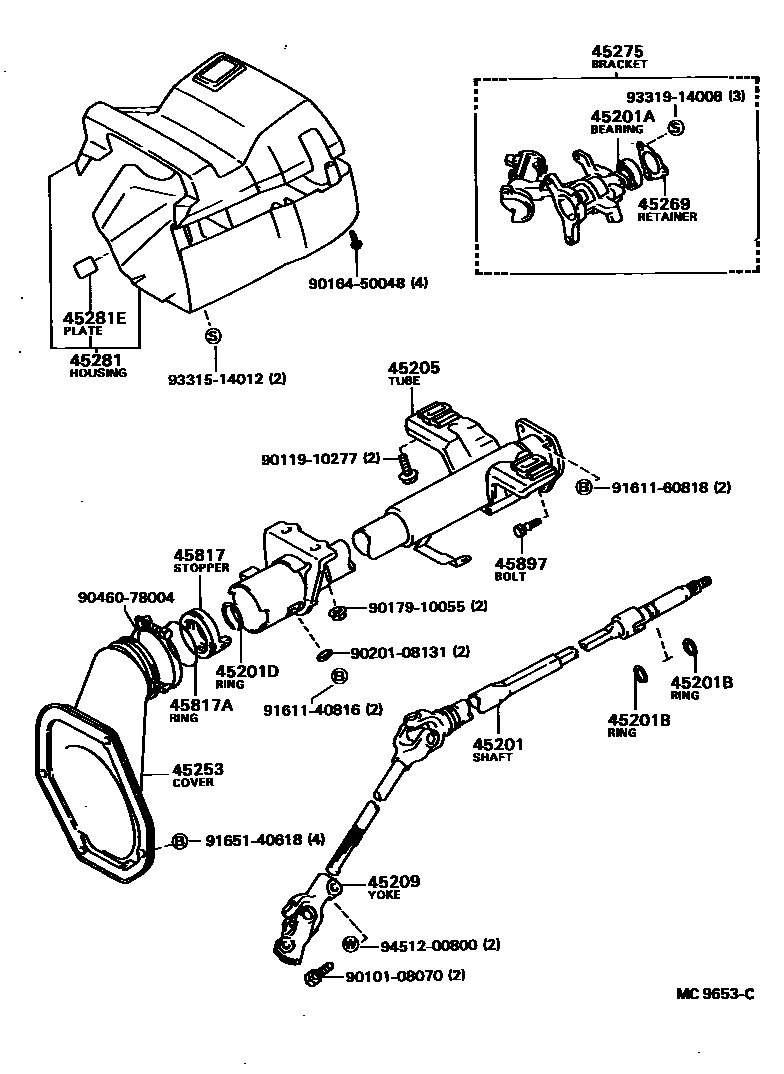

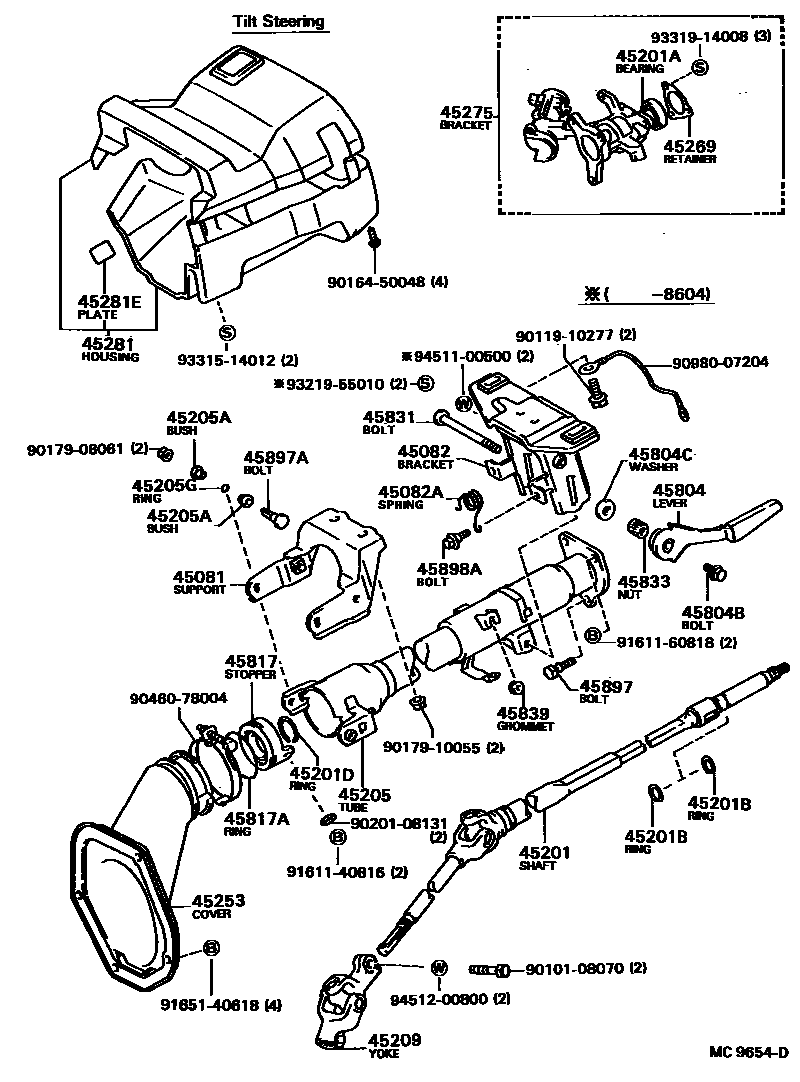

Toyota COROLLA EPC diagram 4501, Steering Column & Shaft, with 2 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45081 | Tilt-adjustable steering bracket sub-assembly | 45081-20010 |
| 45082 | Separate bracket sub-assembly with enclosure | 45082-12020 · 45082-12021 |
| 45082A | Torsion spring (for tilt-adjustable steering column return) | 90508-29015 |
| 45201 | Steering spindle sub-assembly | 45210-12200 · 45210-12220 |
| 45201A | Bearings (for steering spindle) | 90363-18038 |
| 45201B | Shaft snap ring (for steering spindle) | 90520-17042 · 90520-17196 |
| 45201D | Ring (for steering spindle) | 96152-00300 |
| 45205 | Steering column tube sub-assembly | 45870-12180 · 45870-12200 |
| 45205A | Bushing (for steering column tube) | 90389-11005 |
| 45205G | O-ring (for steering column tube) | 90301-11005 |
| 45209 | Steering slip fork sub-assembly | 45209-32010 · 45209-32020 |
| 45253 | Steering column hole cover | 45025-12120 |
| 45269 | Spindle bearing retainer | 45269-10010 |
| 45275 | Steering column upper bracket | 45280-12090 · 45280-12092 |
| 45281E | Safety warning nameplate | 45283-22010 |
| 45804 | Steering tilt adjustment lever sub-assembly | 45804-12010 |
| 45804B | Bolt (for steering tilt adjustment lever) | 90105-08060 |
| 45804C | Flat washer (for steering tilt adjustment lever) | 90201-08029 |
| 45817 | Steering shaft thrust stop | 45808-20020 |
| 45817A | O-ring (for steering shaft thrust stop) | 90301-54002 · 96711-24056 |
| 45831 | No. 1 tilt adjustment lever locking bolt | 45831-20010 |
| 45833 | Tilt-adjustable steering column adjustment nut No. 1 | 45833-20010 |
| 45839 | return spring seal | 45839-20010 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
| 45897A | Tilt-adjustable steering pawl retaining bolt | 45897-26010 |
| 45898A | return spring fixing bolt | 45898-20020 |
