Toyota COROLLA 传动桥或变速器总成和衬垫组件(MTM) — Figure 3301

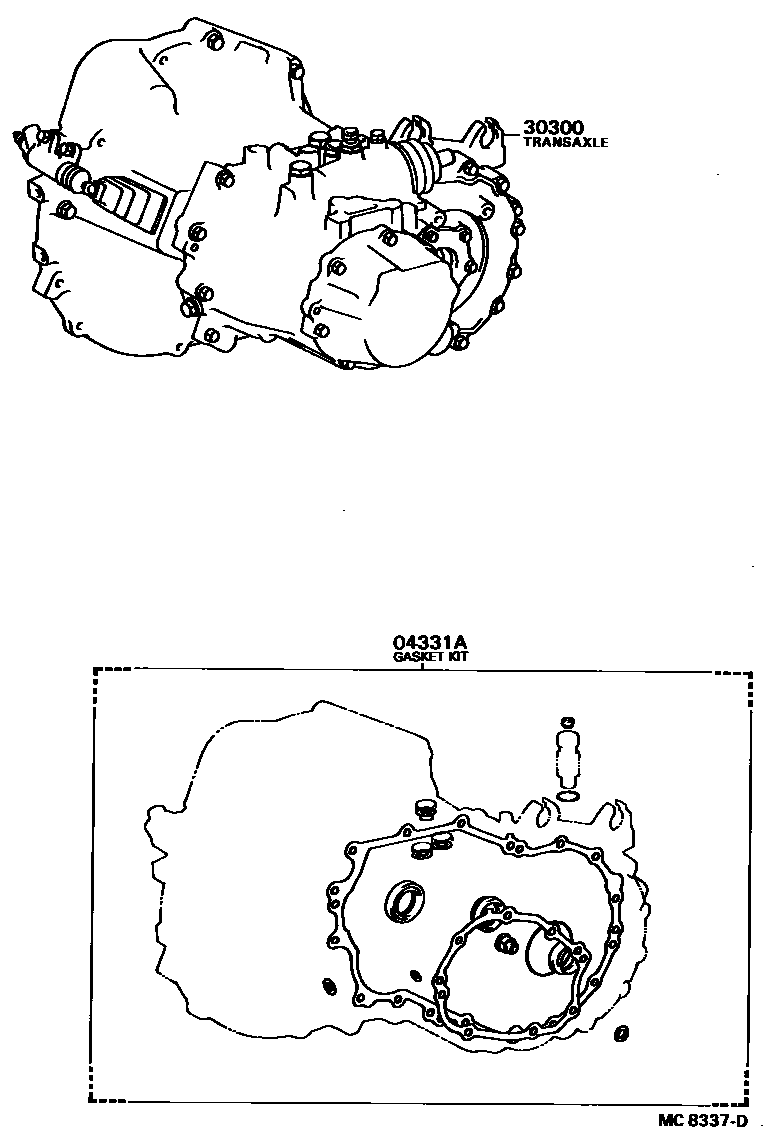

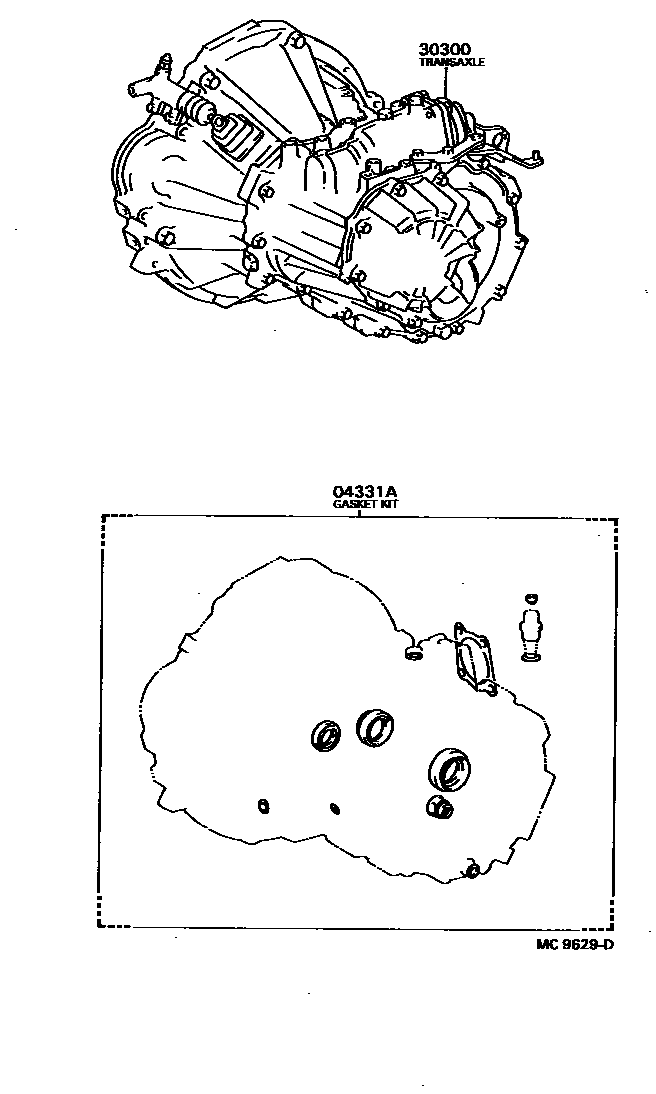

Toyota COROLLA EPC diagram 3301, 传动桥或变速器总成和衬垫组件(MTM), with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04331A | Transaxle overhaul pad assembly (MTM) | 04331-12080 · 04331-32010 |
| 30300 | Manual transmission axle assembly | 30300-12010 · 30300-12030 · 30300-12032 · 30300-12050 · 30300-12060 · 30300-12062 · 30300-12090 · 30300-12092 · 30300-12110 · 30300-12200 · 30300-12202 · 30300-12250 · 30300-12251 · 30300-12252 · 30300-12260 · 30300-12261 · 30300-12262 · 30300-20130 · 30300-20290 |
