Toyota COROLLA 废气再循环系统 — Figure 2501

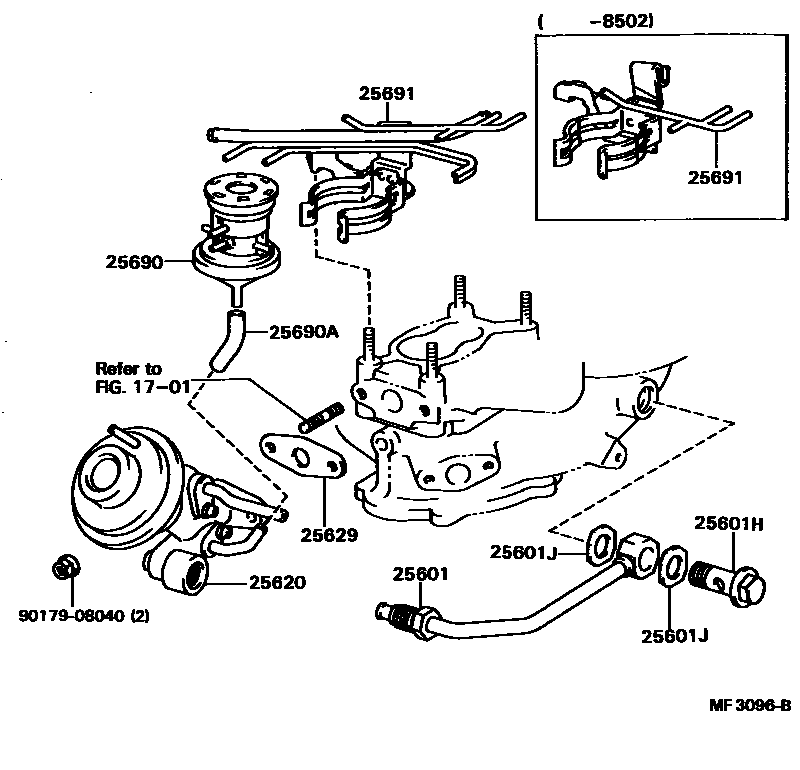

Toyota COROLLA EPC diagram 2501, 废气再循环系统, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 25601 | No. 1 EGR pipe assembly | 25601-11010 · 25601-15030 |
| 25601A | No. 1 EGR tube ball sleeve | 90410-14005 |
| 25601B | No. 1 EGR pipe connecting nut | 90402-22011 |
| 25601H | Joint bolt (for No. 1 EGR tube) | 90401-20003 |
| 25601J | Gasket (for No. 1 EGR tube) | 90430-20005 |
| 25620 | EGR valve assembly | 25620-11020 · 25620-15230 |
| 25627 | EGR valve gasket | 25627-11010 |
| 25628 | EGR air intake gasket | 25628-11010 |
| 25629 | EGR valve adapter gasket | 25629-15011 |
| 25690 | EGR vacuum regulator assembly | 25870-15080 |
| 25690A | Hoses (for EGR vacuum regulator) | 90445-11041 |
| 25691 | EGR vacuum regulator bracket | 25691-15130 · 25691-15131 · 25691-15190 · 25691-15200 |
