Toyota COROLLA 燃油泵和燃油管 — Figure 2301

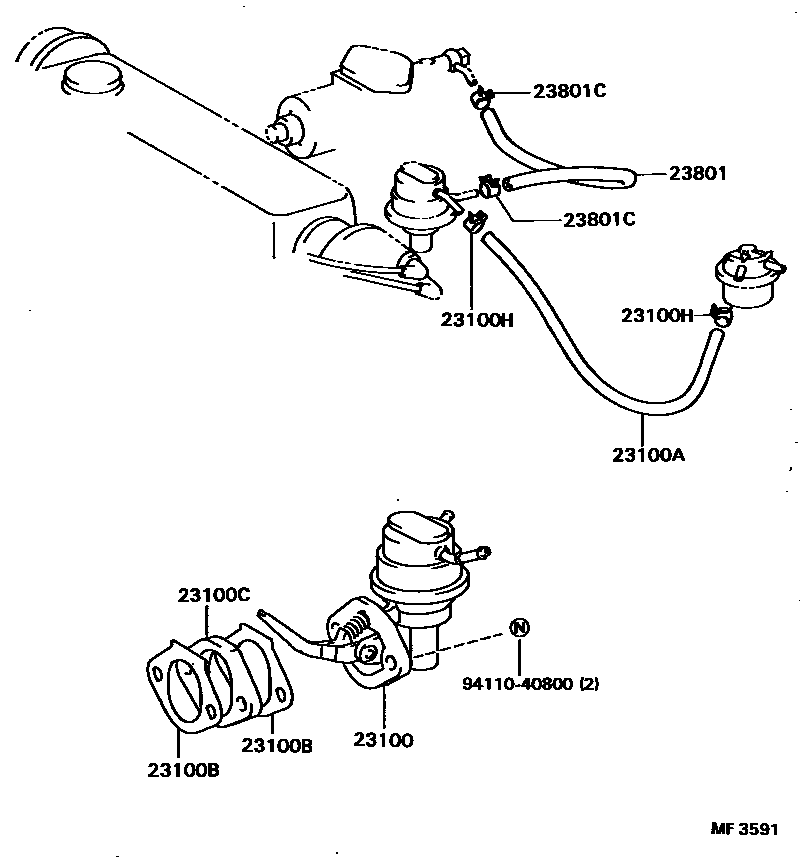

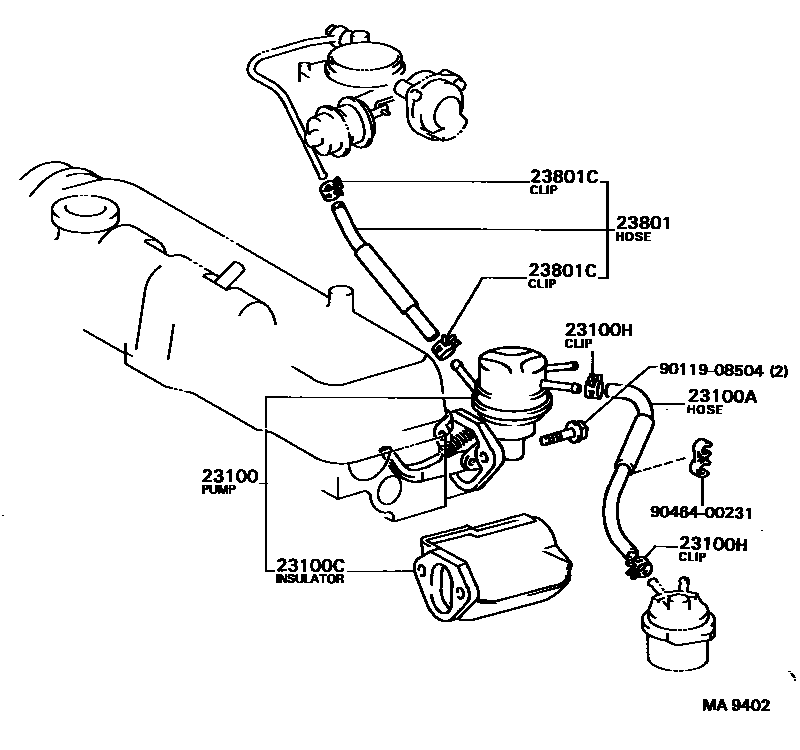

Toyota COROLLA EPC diagram 2301, 燃油泵和燃油管, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23100 | fuel pump assembly | 23100-11030 · 23100-19195 |
| 23100A | fuel hose | 23271-15070 · 95332-06040 · 95333-06036 · 95333-06040 |
| 23100B | fuel pump gasket | 90923-05017 |
| 23100C | Fuel pump vibration isolation pad | 23915-10020 · 23915-15010 · 23915-15011 |
| 23100H | Clamp (for fuel hose) | 96132-30600 |
| 23801 | No. 1 carburetor fuel pipe or hose sub-assembly | 23271-15010 · 95333-06022 · 95333-06030 |
| 23801C | Clamp (for carburetor fuel hose) | 96132-30600 |
