Toyota COROLLA carburetor assembly — Figure 2102

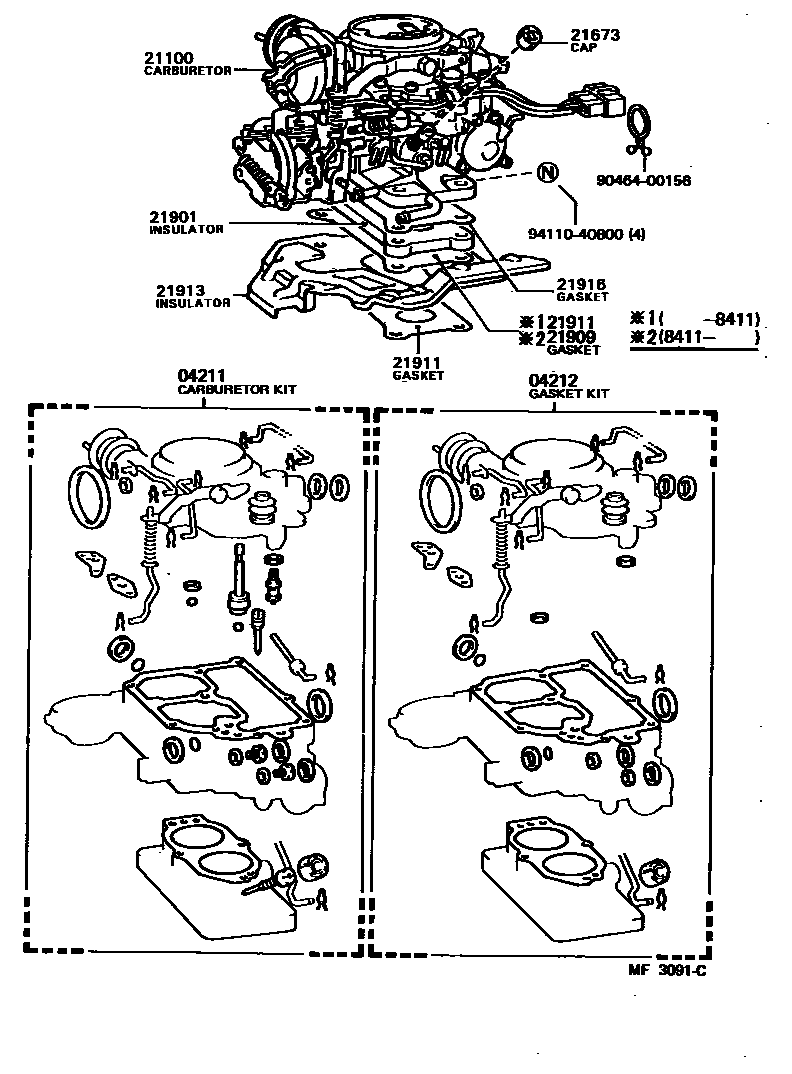

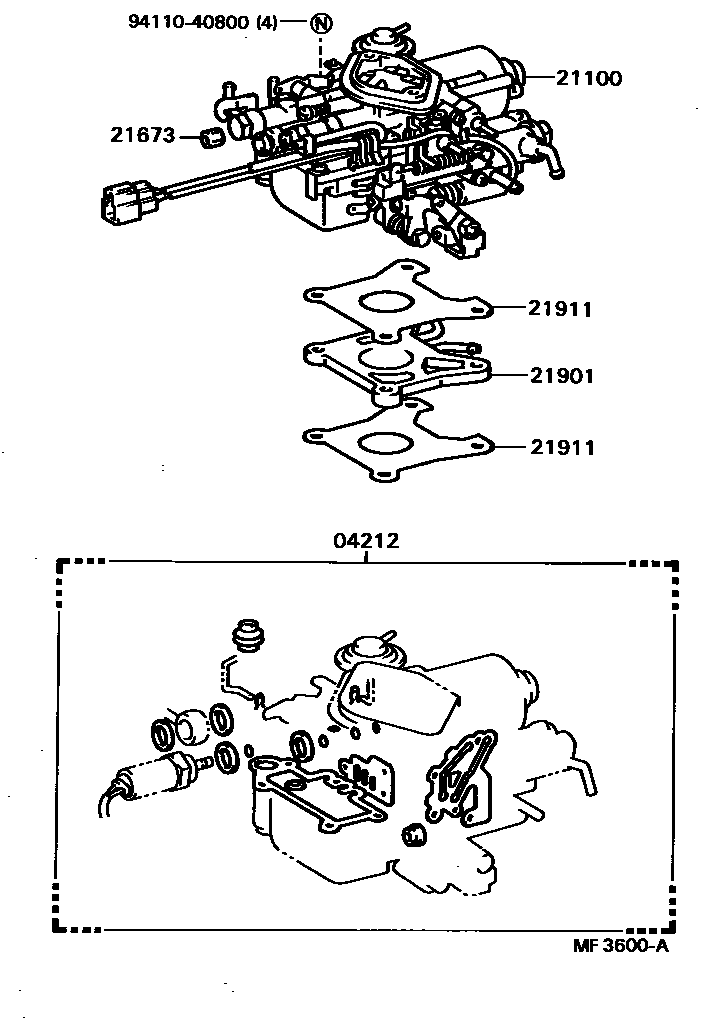

Toyota COROLLA EPC diagram 2102, carburetor assembly, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04211 | carburetor components | 04211-15110 · 04211-15130 · 04211-15150 · 04211-15170 |
| 04212 | carburetor gasket assembly | 04212-15070 · 04212-15080 · 04212-15090 · 04212-15091 |
| 21100 | carburetor assembly | 21100-11110 · 21100-11230 · 21100-11240 · 21100-15320 · 21100-15321 · 21100-15322 · 21100-15330 · 21100-15331 · 21100-15332 · 21100-15440 · 21100-15450 · 21100-15451 |
| 21673 | Idle speed limit cap | 21673-13280 |
| 21901 | No. 1 carburetor heat insulation pad sub-assembly | 21901-11010 · 21901-15012 |
| 21909 | No. 3 carburetor heat insulation pad sub-assembly | 21909-15010 · 21909-15011 |
| 21911 | carburetor gasket | 21911-11020 · 21916-15030 |
| 21913 | No. 2 carburetor insulation pad | 21913-15040 |
| 21916 | No. 2 carburetor gasket | 21914-15020 |
