Toyota COROLLA 点火线圈和火花塞 — Figure 1901
Toyota COROLLA EPC diagram 1901, 点火线圈和火花塞, with 4 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100P | spark plug | 90919-01085 · 90919-01094 · 90919-01121 · 90919-01122 · 90919-01125 · 90919-01126 · 90919-01139 |
| 19500 | Ignition coil assembly | 90919-02113 |

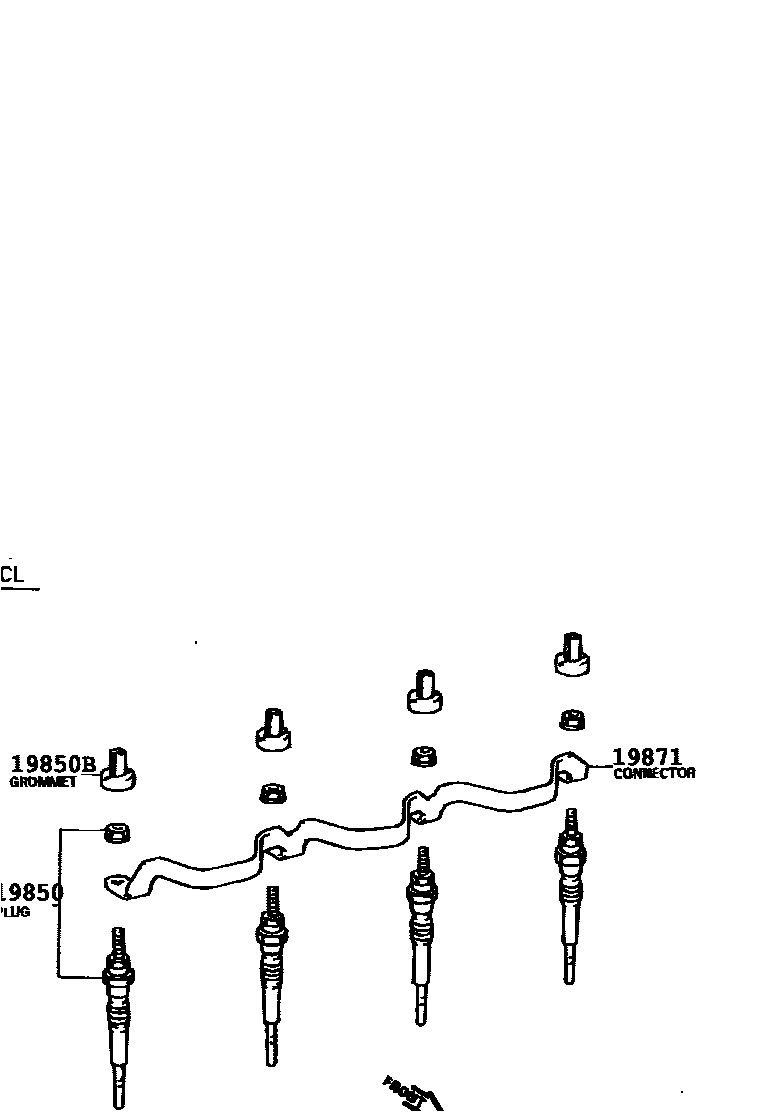

| 19850 | Glow plug assembly | 19850-64010 |
| 19850B | Screw seal (for glow plug) | 90189-04024 |
| 19871 | Glow plug connector No. 1 | 19871-64020 · 19871-64021 |

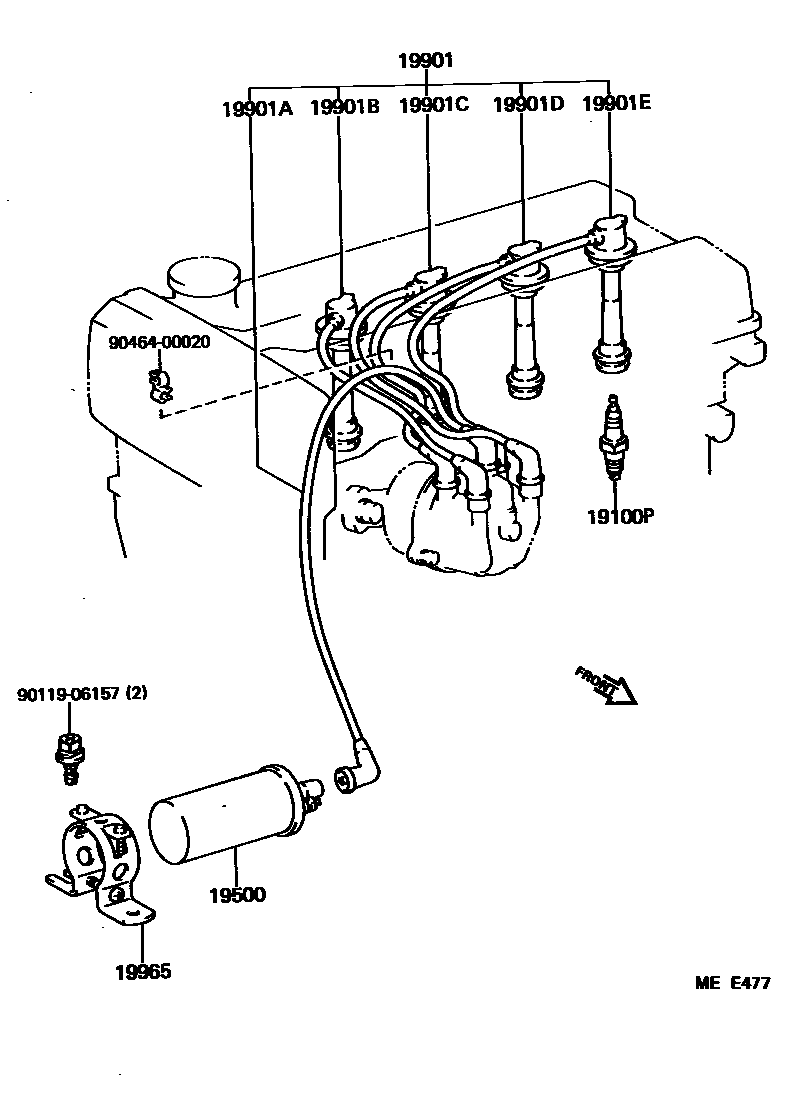

| 19901 | Coil and spark plug assembly with damper wire | 90919-21350 · 90919-22105 · 90919-22168 |
| 19901A | coil damping line | 90919-13245 |

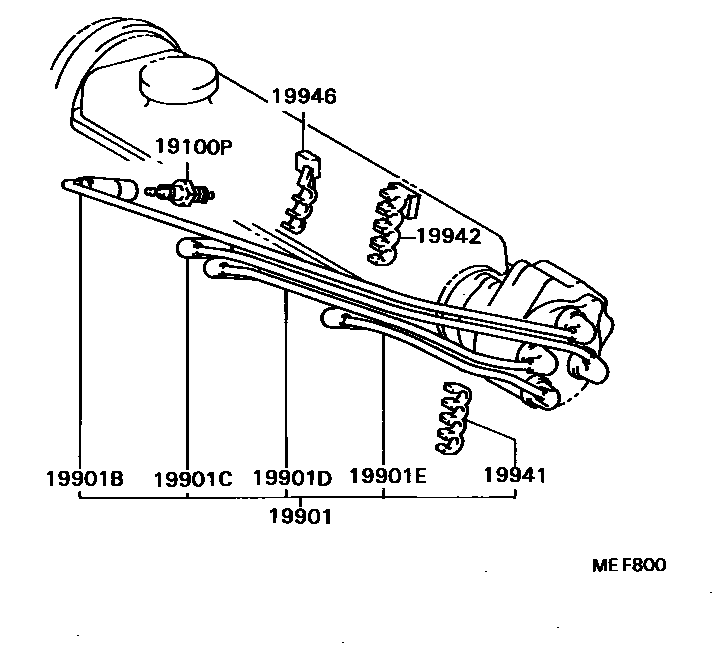

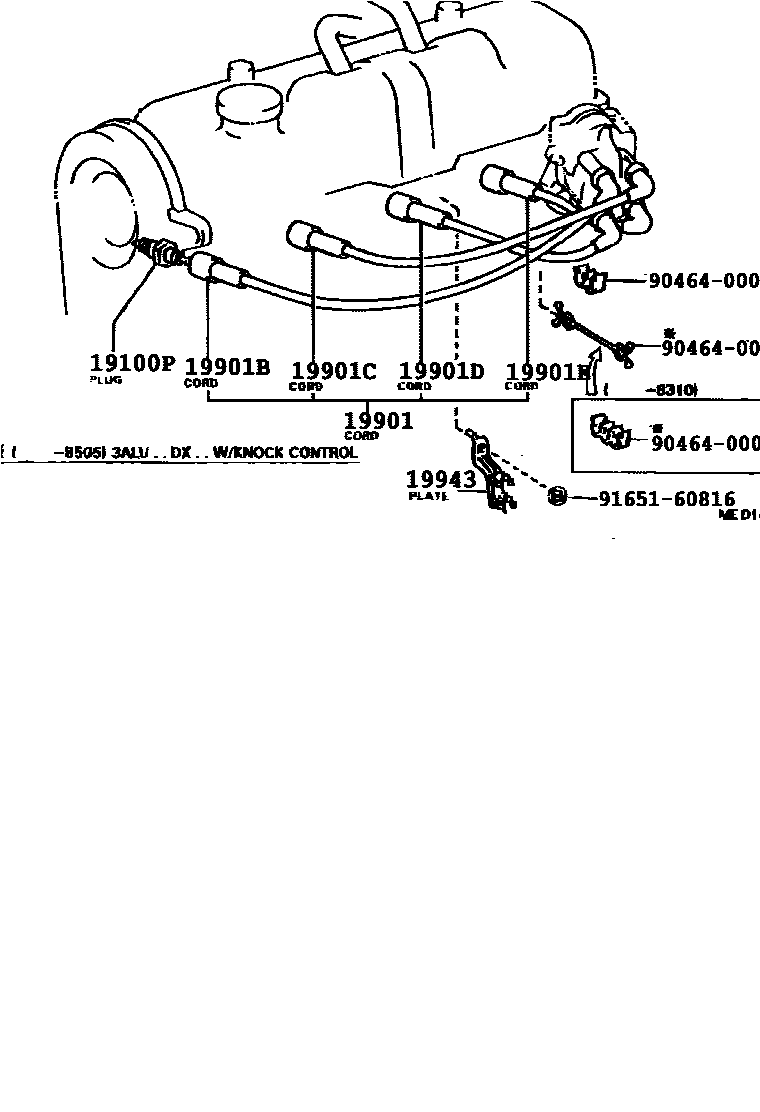

| 19901B | No. 1 spark plug damper wire | 90919-12356 · 90919-12550 · 90919-12606 · 90919-12607 |
| 19901C | No. 2 spark plug damper wire | 90919-12357 · 90919-12551 · 90919-12569 · 90919-12573 |
| 19901D | No. 3 spark plug damper wire | 90919-12358 · 90919-12552 · 90919-12570 · 90919-12574 |
| 19901E | No. 4 spark plug damper wire | 90919-12359 · 90919-12553 · 90919-12571 · 90919-12575 |
| 19941 | No. 1 damping wire clip | 90464-00358 |
| 19942 | No. 2 damping wire clip | 90464-00372 |
| 19943 | No. 1 damping wire clip support plate | 19943-15020 |
| 19946 | No. 3 impedance wire clip | 90464-00404 |
| 19965 | No. 1 ignition coil band | 90919-03086 |
