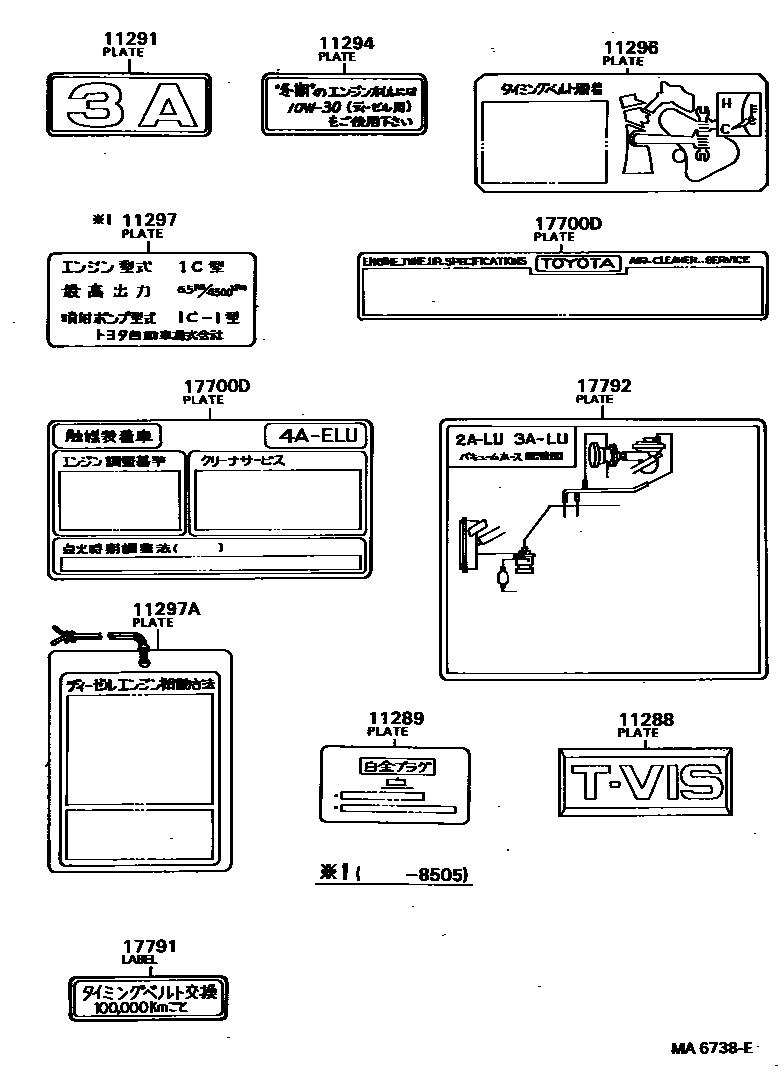

Toyota COROLLA 警示铭牌和名称铭牌(发动机) — Figure 1709
Toyota COROLLA EPC diagram 1709, 警示铭牌和名称铭牌(发动机), with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11288 | Engine system nameplate | 11288-88301 |
| 11289 | Spark plug warning nameplate | 11289-16010 · 11289-70010 |
| 11291 | Engine name plate | 11291-11010 · 11291-14020 · 11291-14030 · 11291-15080 · 11291-15100 · 11291-16030 · 11291-16040 · 11291-64010 · 11291-64040 · 11292-10010 |
| 11294 | Engine No. 2 warning plate | 11294-54040 · 11294-56010 |
| 11296 | Timing belt warning plate | 11296-54010 |
| 11297 | Engine No. 3 warning plate | 11283-64010 |
| 11297A | Engine start warning plate | 11297-64010 |
| 17700D | Engine warning plate | 11293-11030 · 11293-11080 · 11293-15120 · 11293-15190 · 11293-16021 · 11293-16022 · 11293-16040 · 11293-64030 · 11296-11020 · 11296-11050 |
| 17791 | Maintenance information label | 17791-64030 |
| 17792 | Engine vacuum hose information plate | 17792-11080 · 17792-11090 · 17792-15230 · 17792-15231 · 17792-15270 · 17792-15271 |
