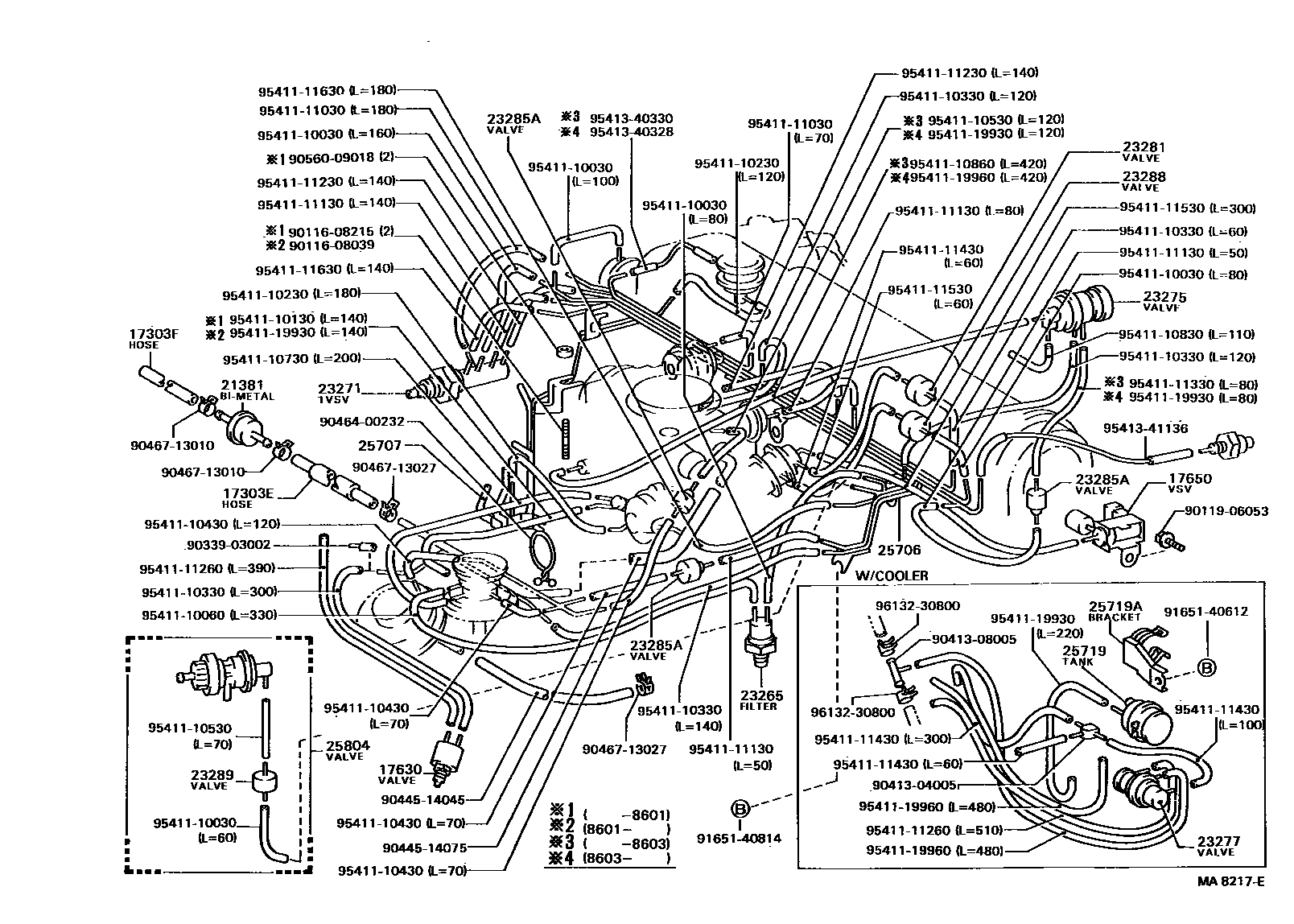

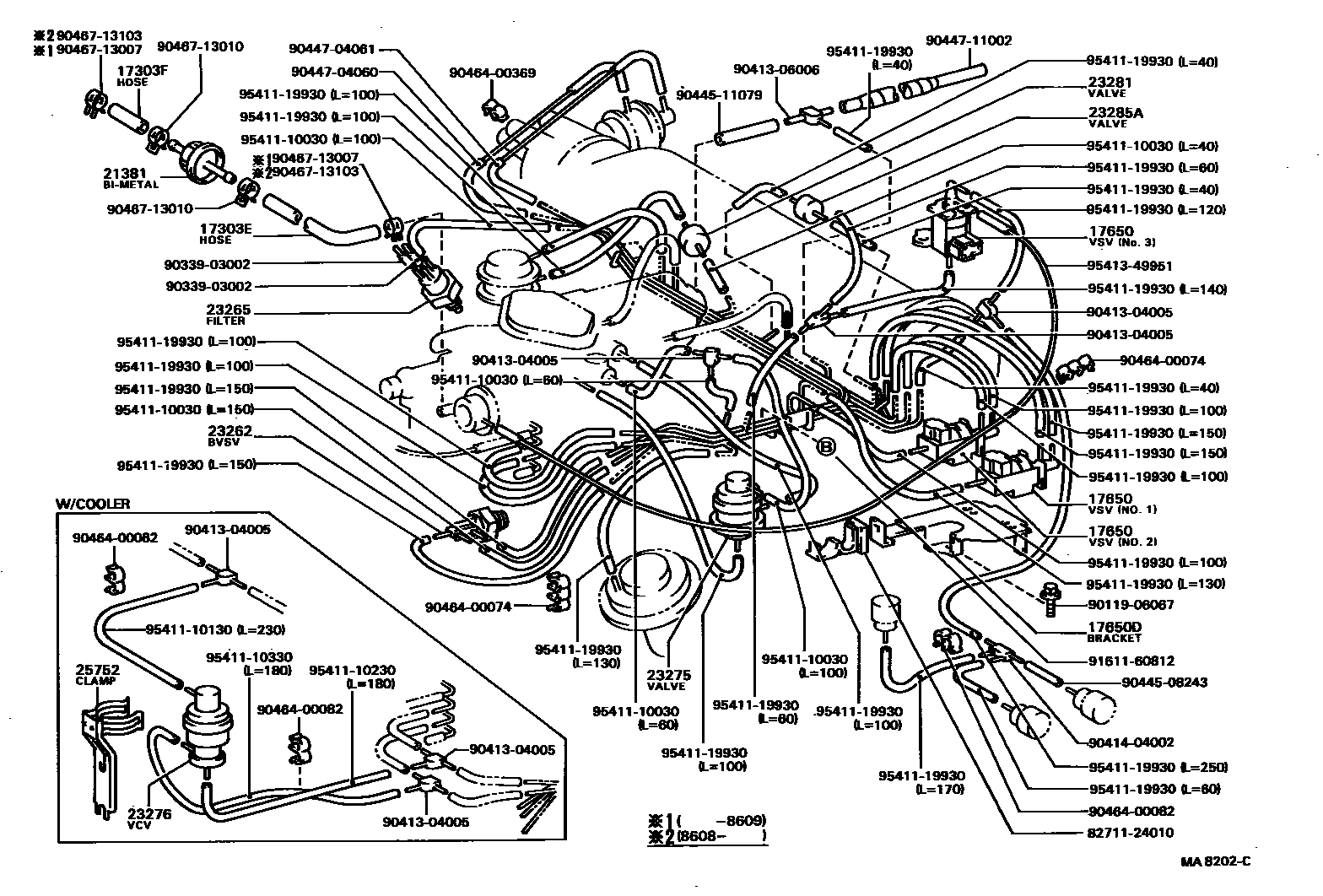

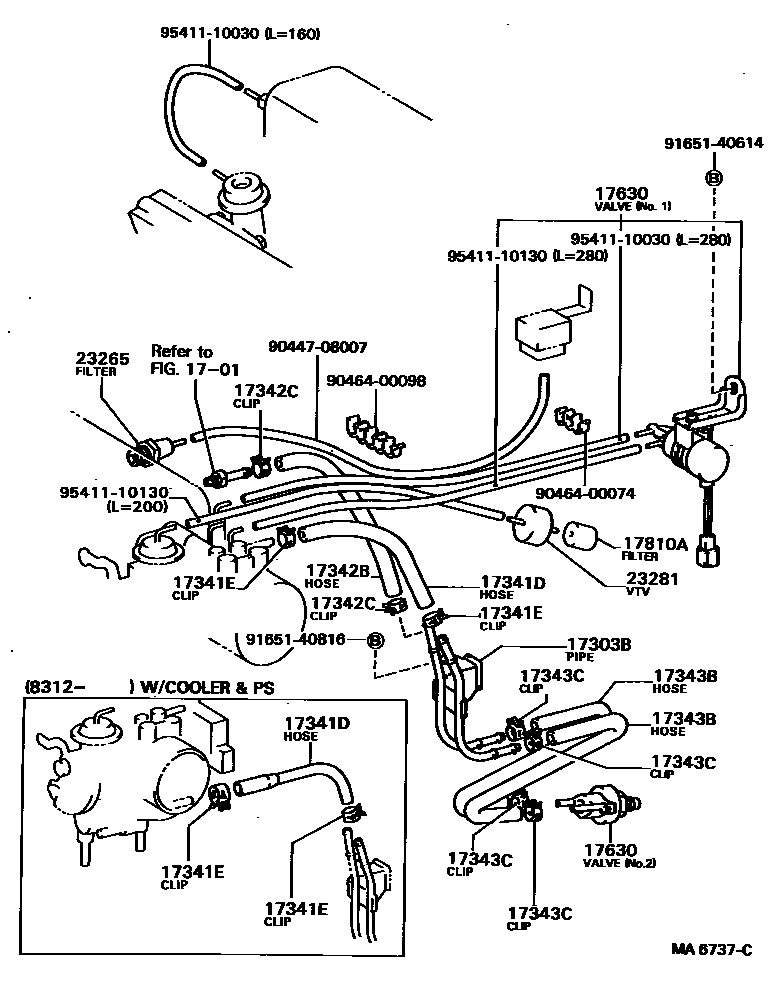

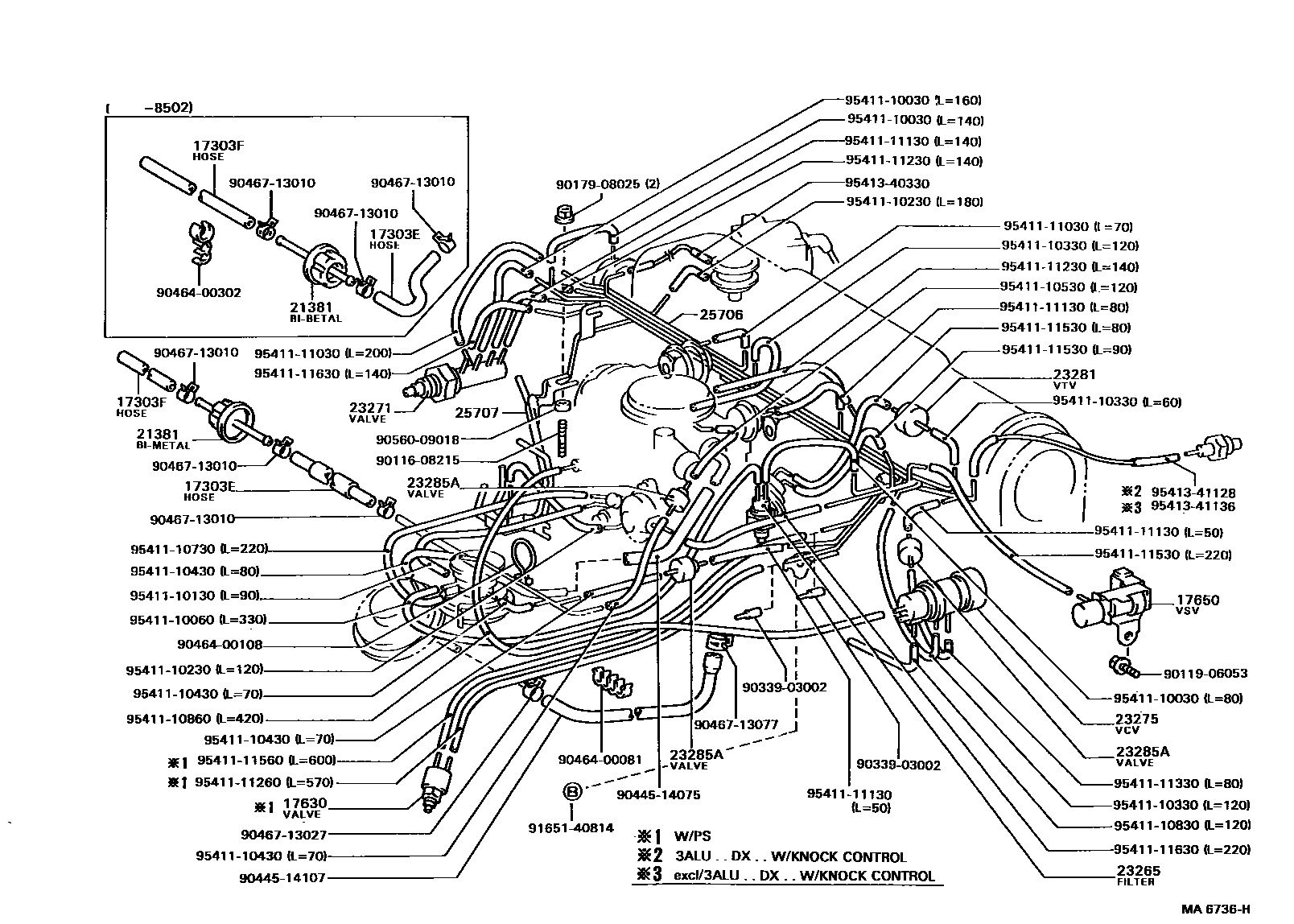

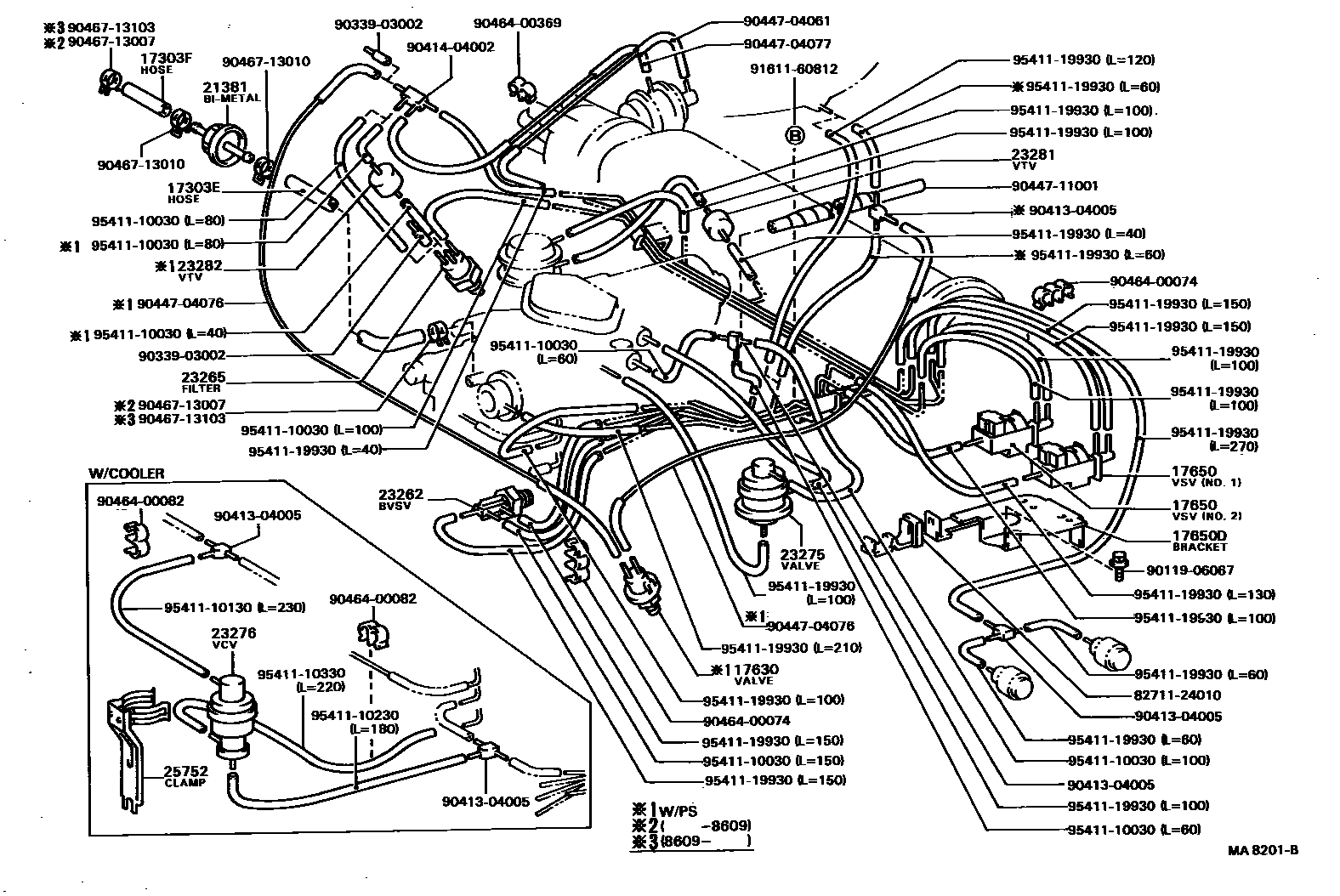

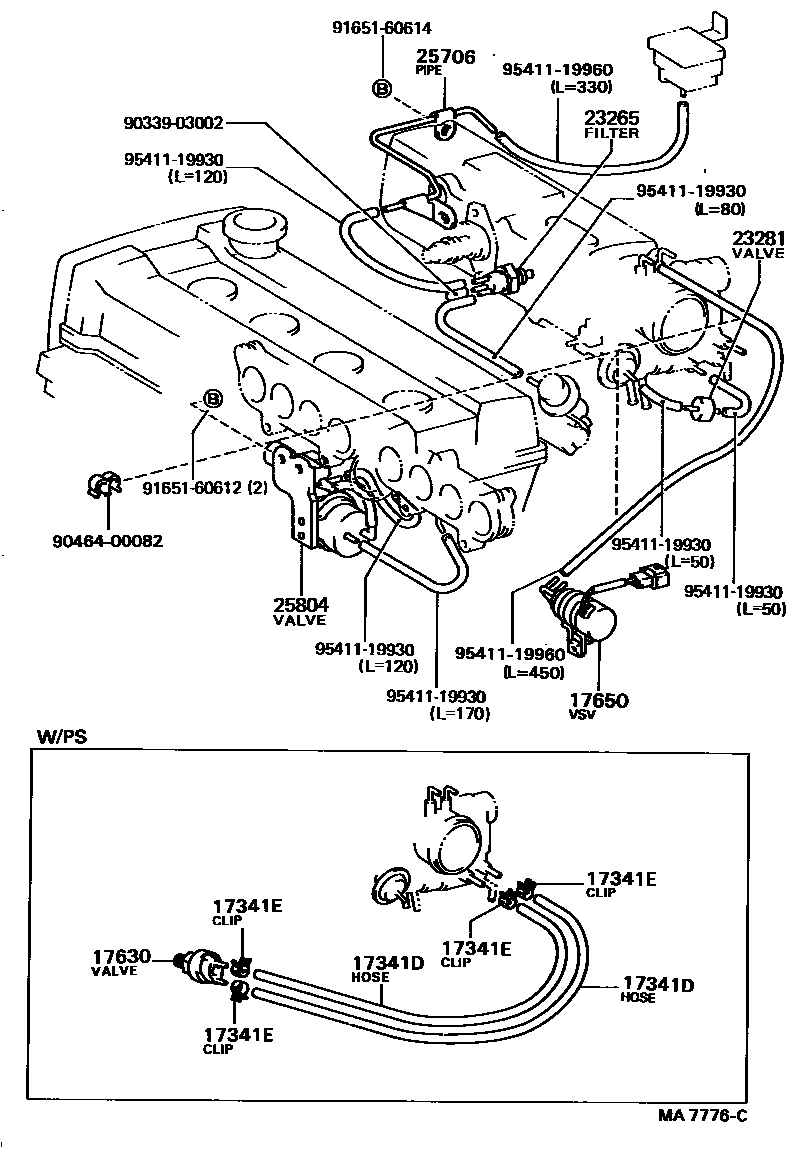

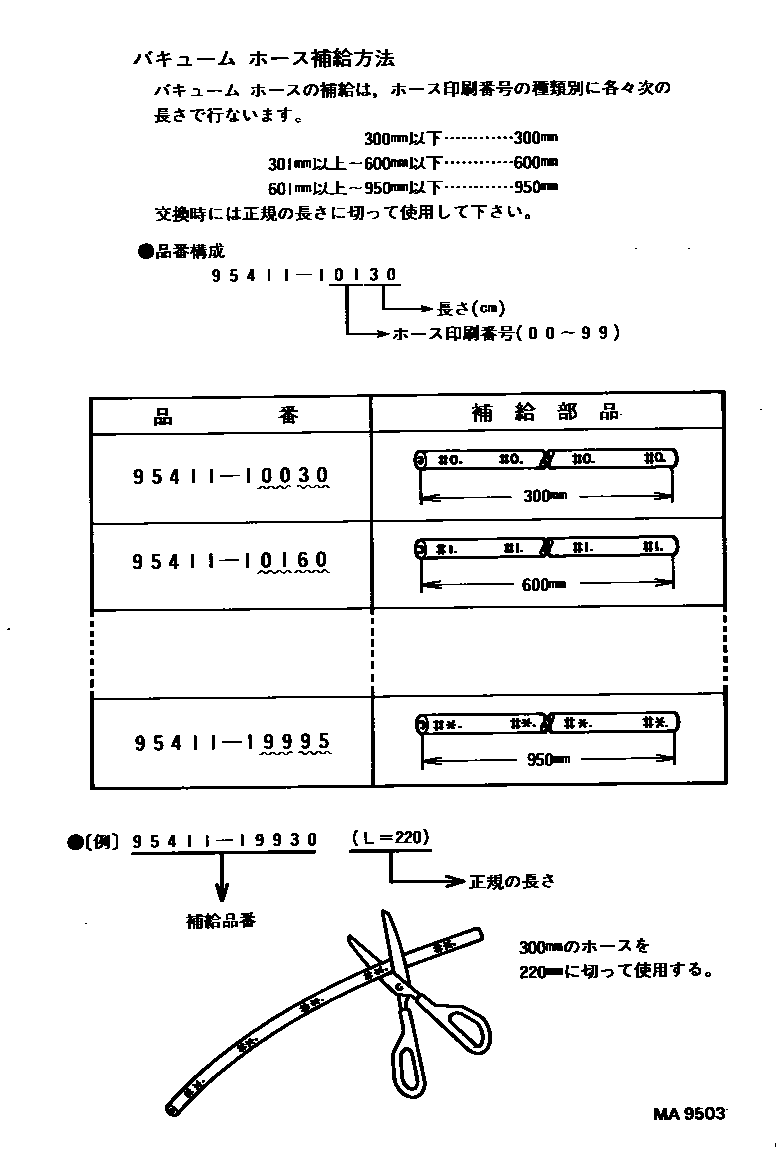

Toyota COROLLA vacuum tube — Figure 1708
Toyota COROLLA EPC diagram 1708, vacuum tube, with 7 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17303B | No. 1 air pipe sub-assembly | 17303-16010 |
| 17303E | No. 1 hose (for air pipe) | 77791-11030 · 77791-12040 · 77791-12041 · 90445-14084 · 90445-14151 |
| 17303F | No. 2 hose (for air pipe) | 77759-12060 · 90445-14069 · 90445-14097 · 90445-14108 |
| 17341D | No. 1 hose (for idle boost) | 17341-16020 · 17341-16060 · 17341-16070 |
| 17341E | Clamp No. 1 (for idle lift hose) | 96132-30400 · 96132-30600 |
| 17342B | No. 2 hose (for idle boost) | 17342-16010 |
| 17342C | Clamp No. 2 (for idle lift hose) | 96132-30400 |
| 17343B | No. 3 hose (for idle speed boost) | 17343-16020 |
| 17343C | Clamp No. 3 (for idle lifting hose) | 96132-30400 |
| 17630 | Air control valve assembly | 17630-15010 · 17630-15030 · 17630-16010 · 17630-16040 · 17630-70010 · 17630-70020 |
| 17650 | Vacuum switch valve assembly | 89570-11020 · 89570-12220 · 89570-12280 · 89570-12330 · 89570-16060 · 90910-12008 · 90910-12009 |
| 17650D | Vacuum switch valve bracket | 21999-11010 |
| 17810A | air filter assembly | 90925-06007 |
| 21381 | thermostat bimetal | 21381-11010 · 21381-15320 · 21381-71040 |
| 23262 | No. 1 bimetallic vacuum switch valve | 25810-24010 |
| 23265 | No. 1 gas filter | 90917-11022 · 90917-11023 · 90917-11024 · 90917-11027 |
| 23271 | No. 1 thermostatic vacuum switching valve | 90925-02076 |
| 23275 | Vacuum control valve No. 1 | 90925-03145 · 90925-03155 · 90925-03156 |
| 23276 | Vacuum control valve No. 2 | 90925-03136 |
| 23277 | No. 3 vacuum control valve | 90925-03153 |
| 23281 | Vacuum Transfer Valve No. 1 | 90925-01021 · 90925-01041 · 90925-01071 · 90925-01079 · 90925-01091 · 90925-01095 |
| 23282 | Vacuum Transfer Valve No. 2 | 90925-01021 |
| 23285A | No. 1 one-way valve | 90917-10049 |
| 23288 | Nozzle No. 1 | 90925-04013 |
| 23289 | Nozzle No. 2 | 90925-04012 |
| 25706 | No. 1 vacuum transfer tube sub-assembly | 25706-15150 · 25706-15151 · 25706-15200 · 25706-16090 |
| 25707 | No. 2 vacuum transfer pipe sub-assembly | 25707-15170 · 25707-16010 |
| 25719 | Vacuum pressure tank | 25719-15010 |
| 25719A | Vacuum tank clip holder | 44756-12020 |
| 25752 | No. 2 vacuum control valve clamp | 25751-11020 |
| 25804 | Vacuum control valve assembly | 25804-12010 · 25804-16010 |
