Toyota COROLLA Air Cleaner — Figure 1703

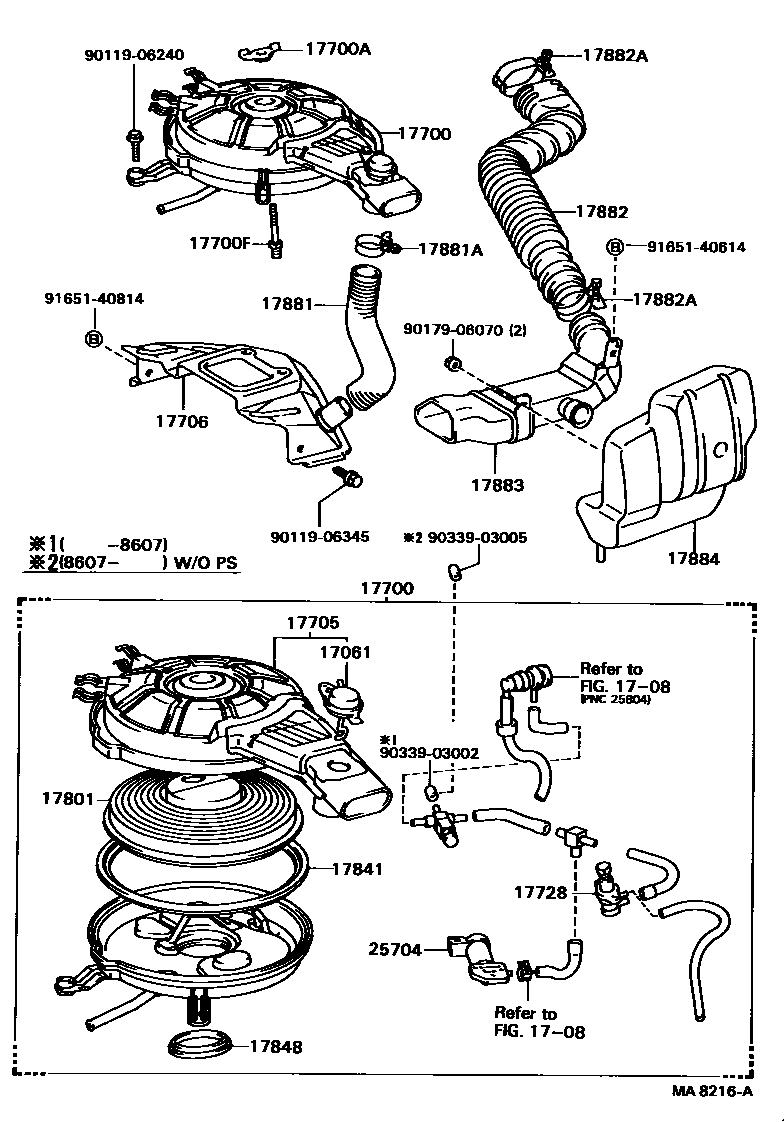

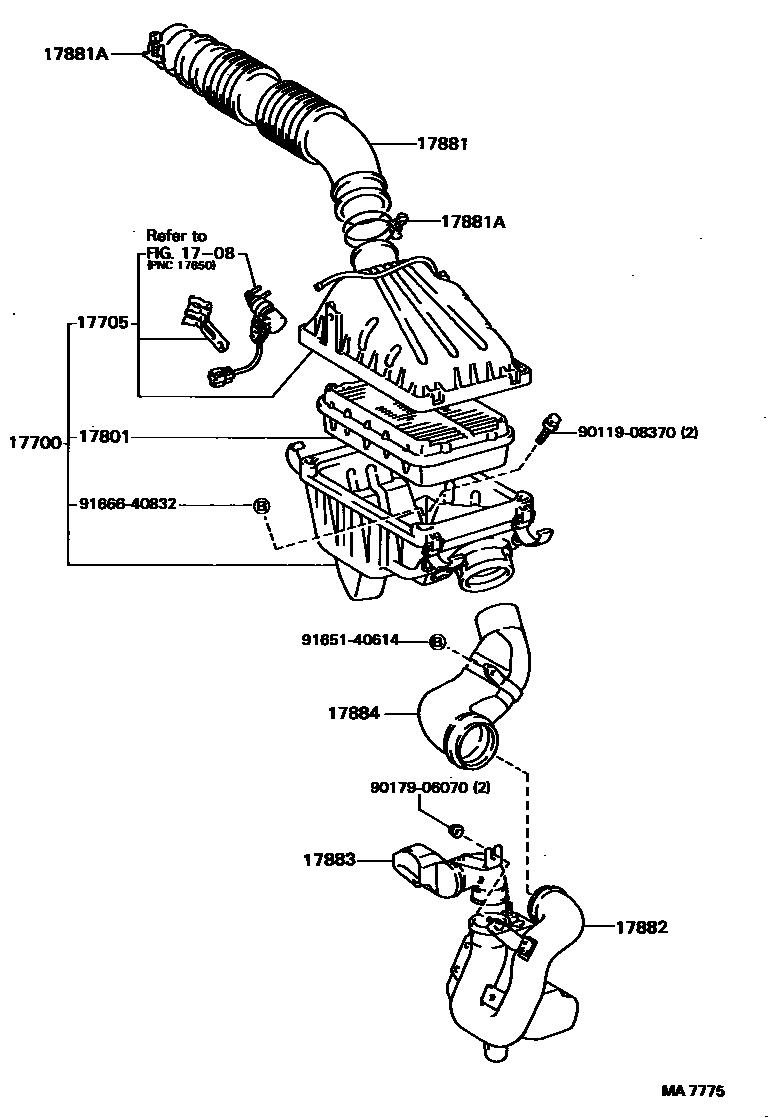

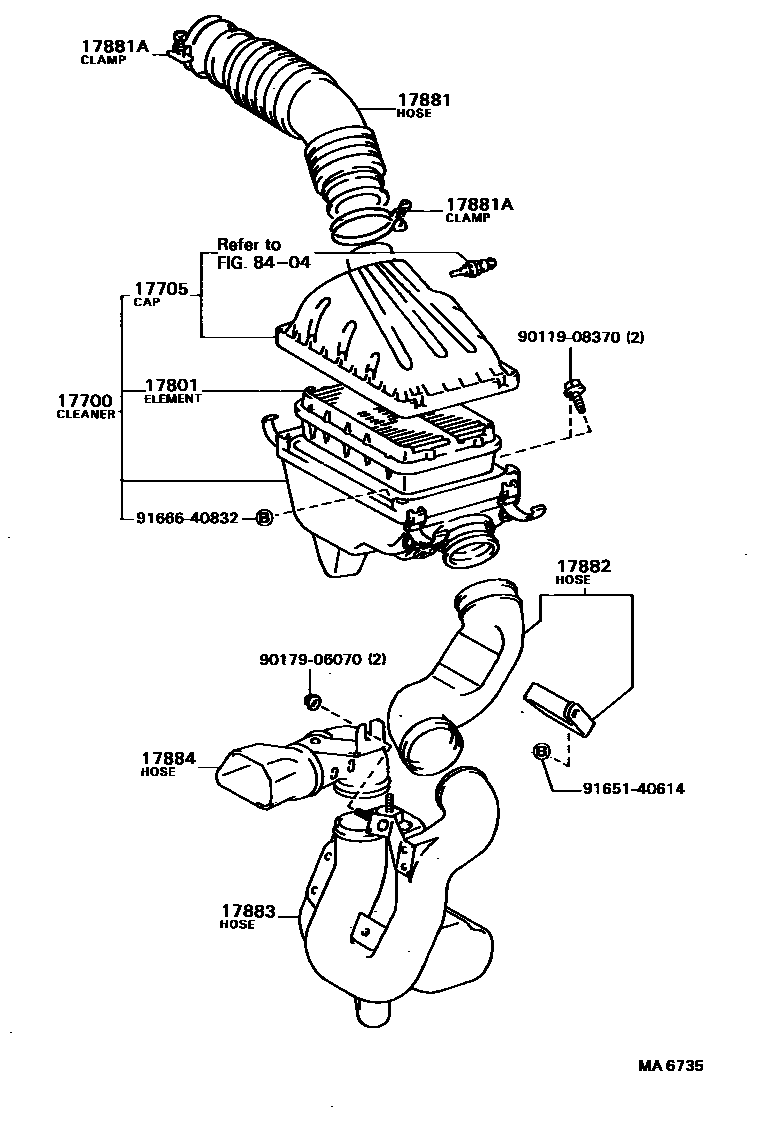

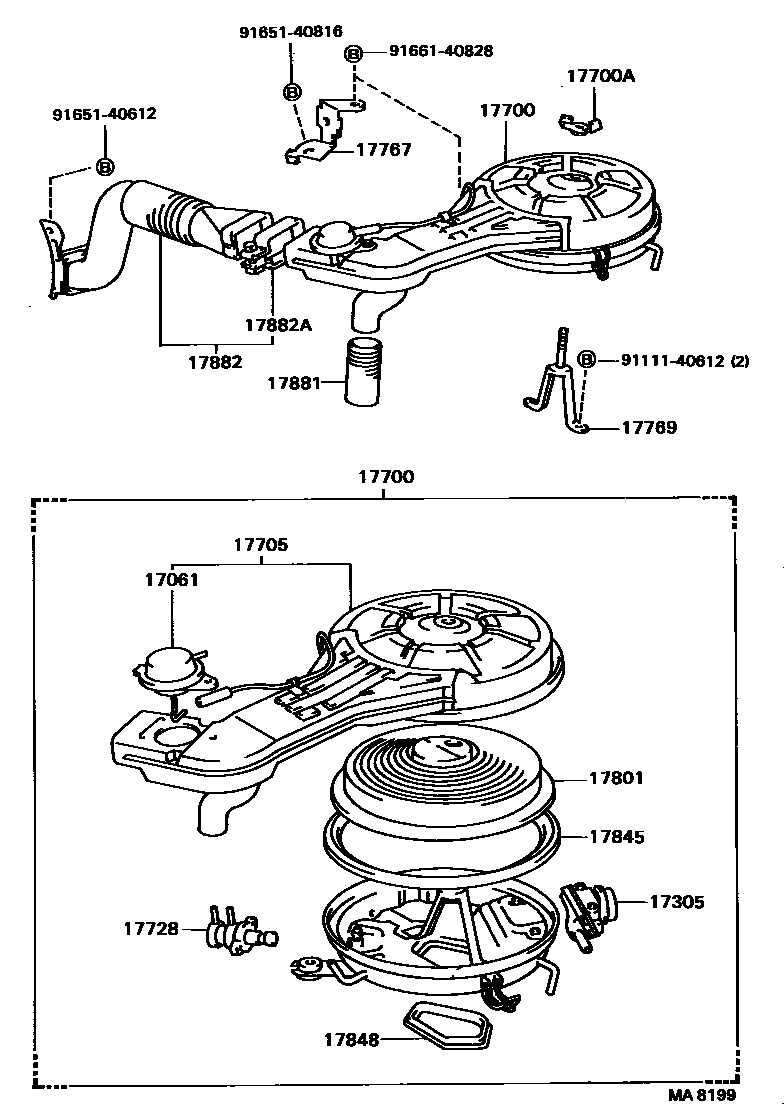

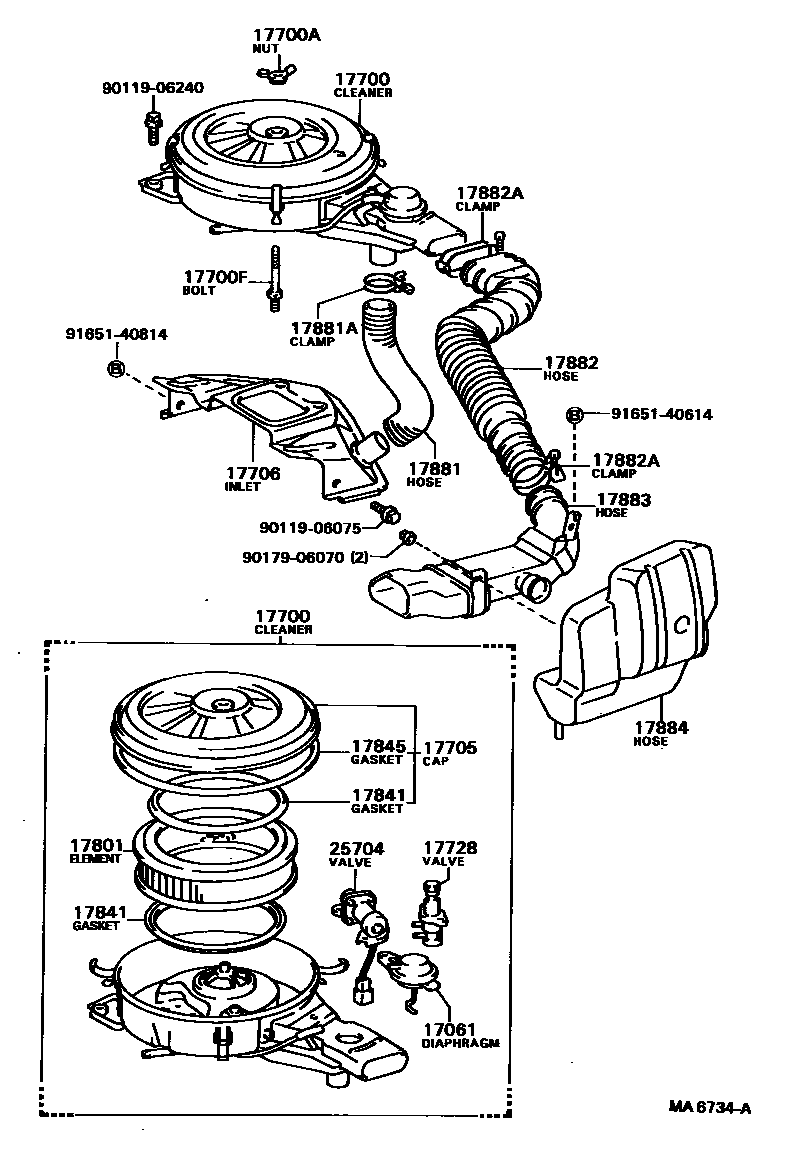

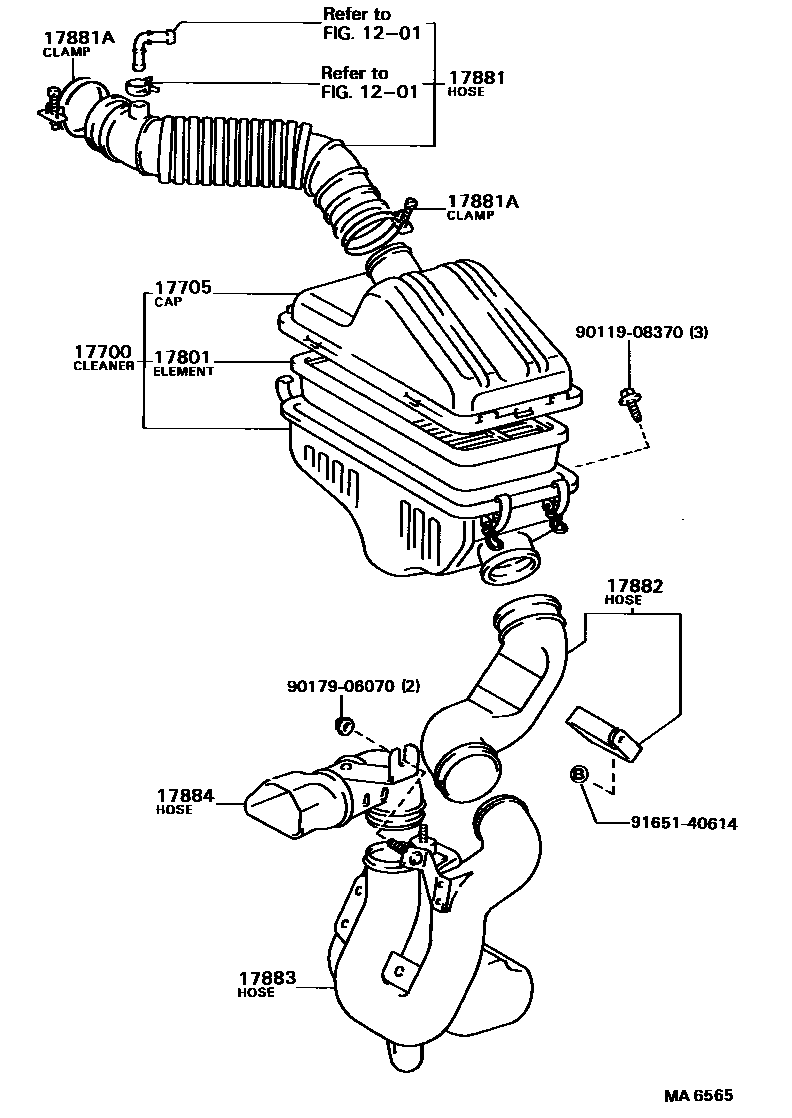

Toyota COROLLA EPC diagram 1703, Air Cleaner, with 6 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17061 | Diaphragm sub-assembly | 17061-11010 · 17061-15030 · 17061-15040 |
| 17305 | Reed valve sub-assembly | 17350-11011 · 17350-11040 |
| 17700 | air filter assembly | 17700-11231 · 17700-15160 · 17700-15161 · 17700-15210 · 17700-16080 · 17700-16280 · 17700-64040 · 17700-64041 · 17700-64080 |
| 17700A | Wing nut (for air cleaner) | 90175-06009 |
| 17700F | Stud bolt (for securing air filter) | 90116-06039 · 90116-06142 |
| 17705 | Air filter cover sub-assembly | 17705-11170 · 17705-15070 · 17705-15100 · 17705-16010 · 17705-16100 · 17705-64030 · 17705-64080 |
| 17706 | No. 2 air filter air inlet sub-assembly | 17902-15080 |
| 17728 | thermostat valve | 17728-11020 · 17728-15040 · 17728-15060 |
| 17767 | air filter bracket | 17771-11010 |
| 17769 | air filter bracket | 17769-11020 |
| 17801 | Air filter element sub-assembly | 17801-10030 · 17801-15010 · 17801-64010 · 17801-64020 · 17801-74010 |
| 17841 | filter liner | 17841-15010 · 17845-10020 |
| 17845 | air cleaner cover gasket | 17845-10020 · 17845-37020 |
| 17848 | Gasket from air cleaner to carburetor | 17848-10020 · 17848-15010 |
| 17881 | No. 1 air cleaner hose | 17880-64030 · 17881-10030 · 17881-16010 · 17881-16090 · 17881-16110 · 17881-63010 · 17881-74040 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 90929-01073 · 90929-01117 · 90929-01145 · 96111-10650 · 96111-10710 · 96111-10750 |
| 17882 | No. 2 air cleaner hose | 17880-12040 · 17880-12050 · 17881-12050 · 17881-12060 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 90460-01005 · 90460-01034 · 96111-10650 |
| 17883 | No. 3 air cleaner hose | 17880-12030 · 17882-12020 · 17884-12020 |
| 17884 | No. 4 air cleaner hose | 17881-12080 · 17883-12020 · 17884-12010 |
| 25704 | Electronic air control valve sub-assembly | 25704-15030 · 25704-15060 |
