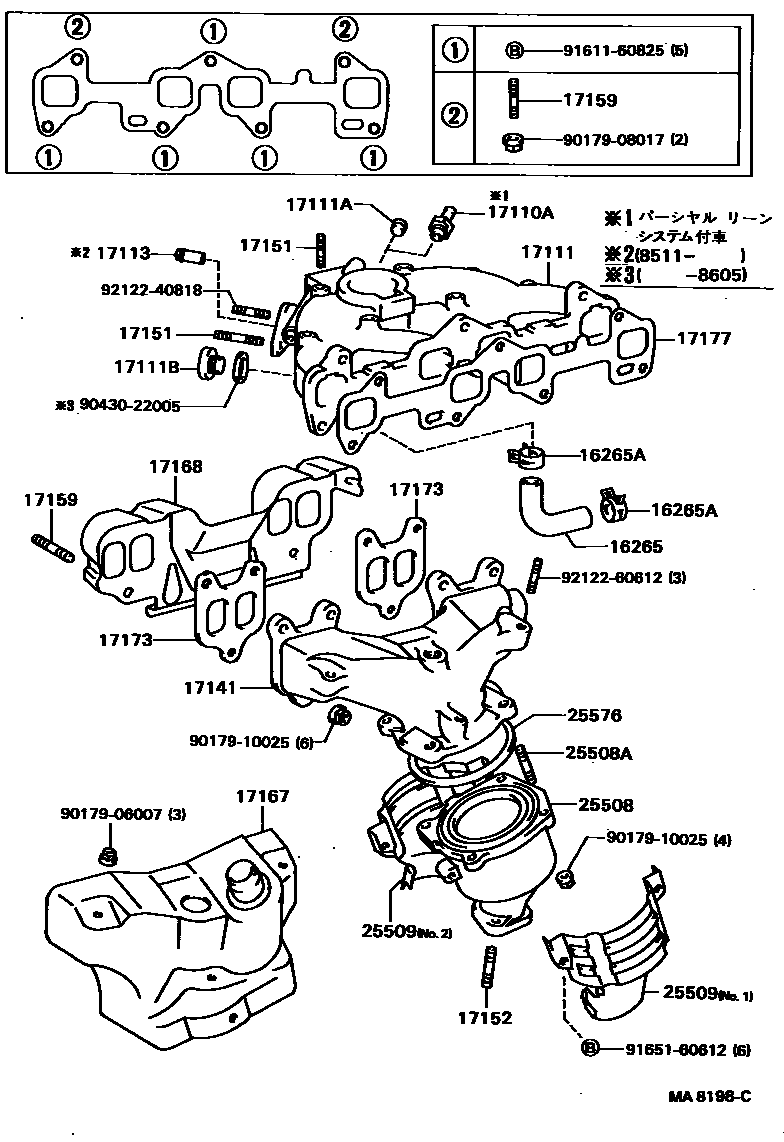

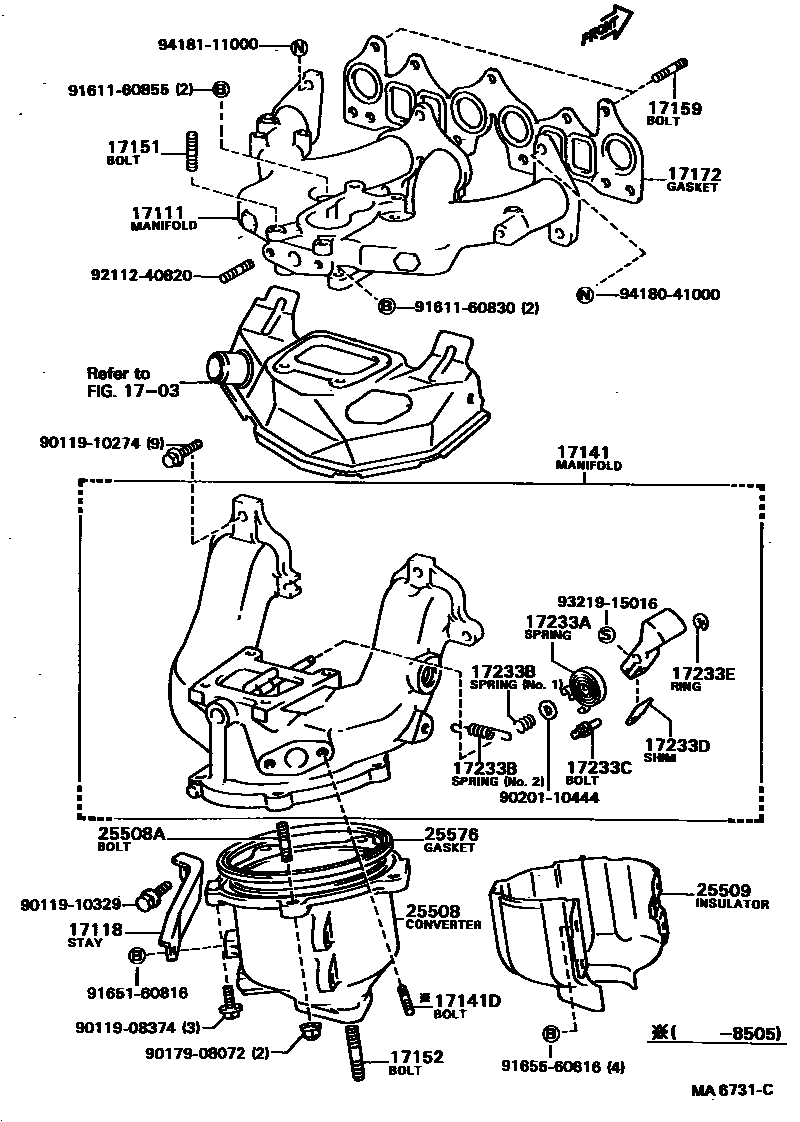

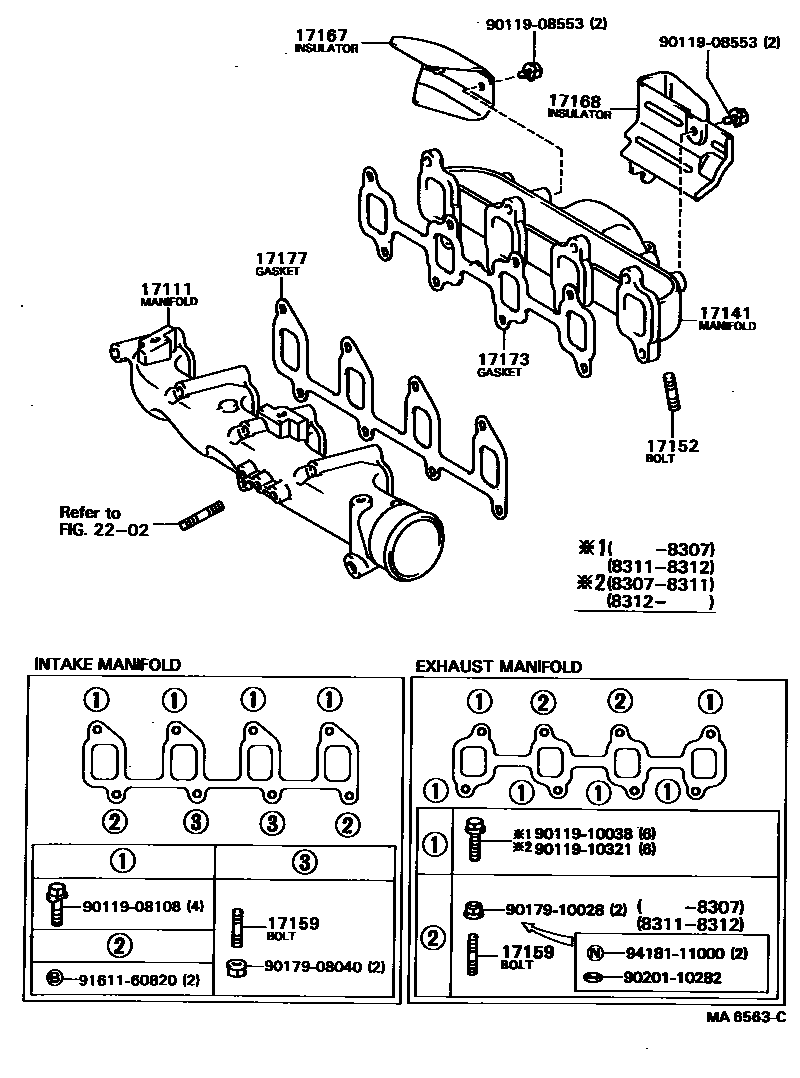

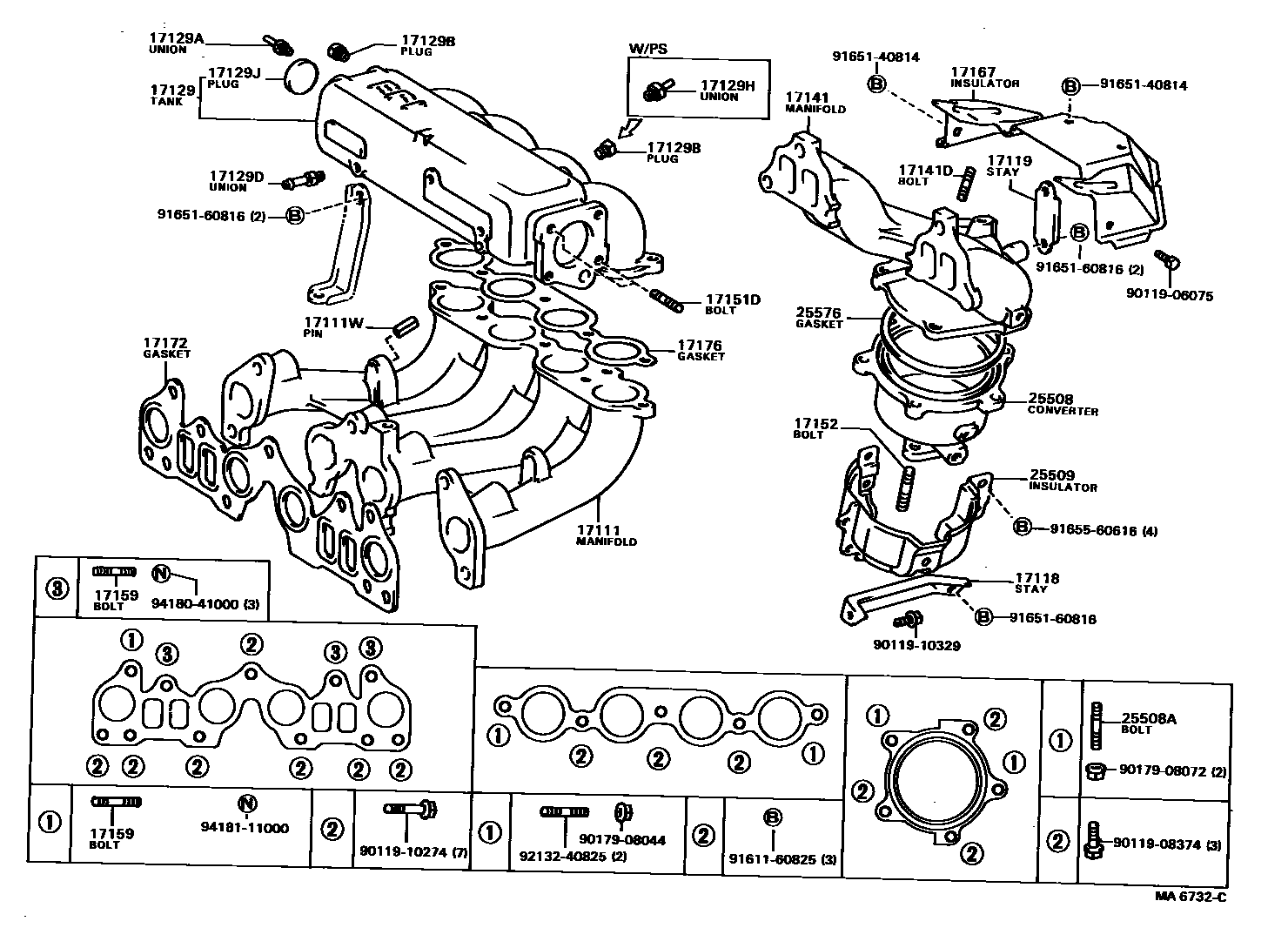

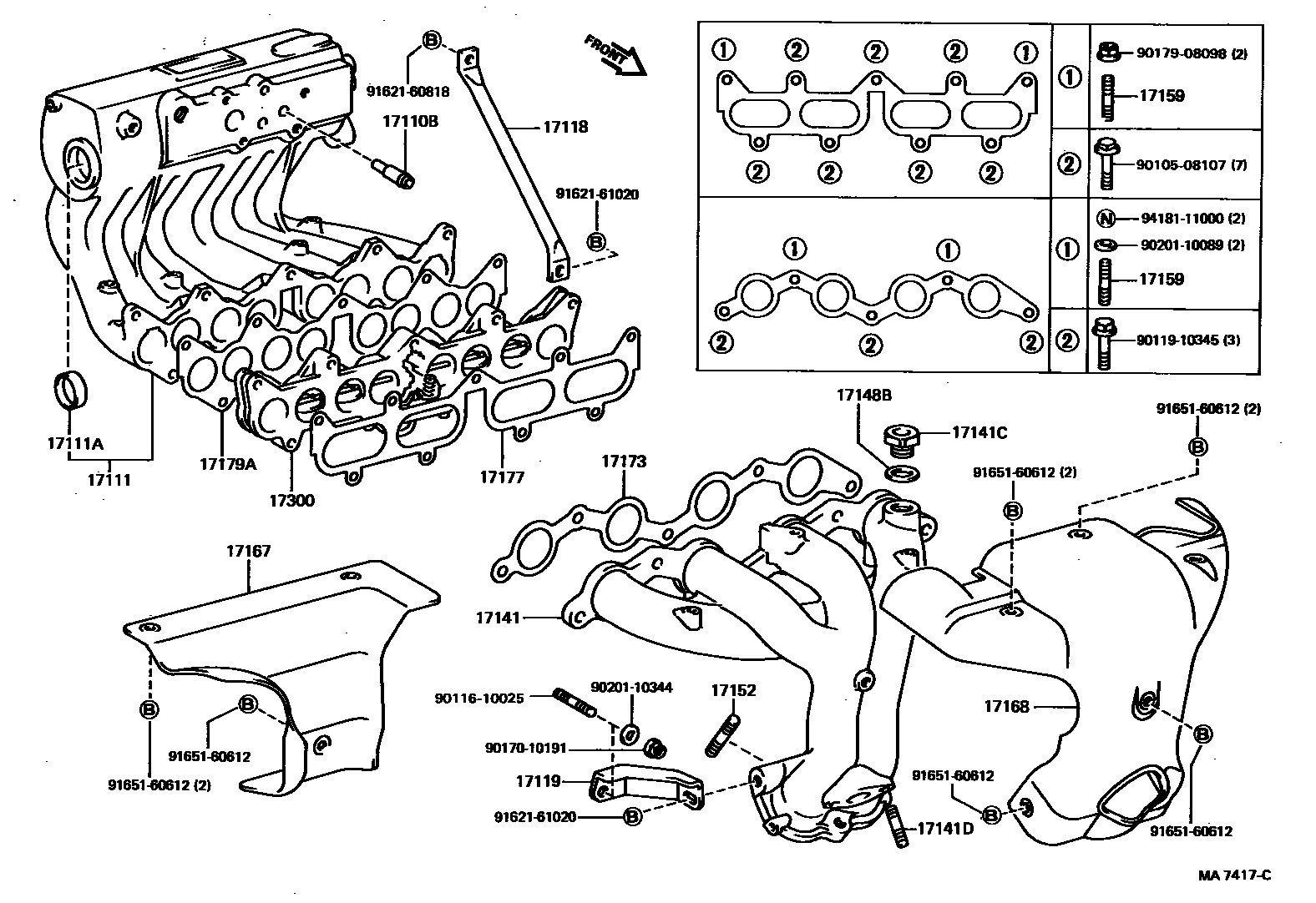

Toyota COROLLA Manifold — Figure 1701
Toyota COROLLA EPC diagram 1701, Manifold, with 5 images and 42 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16265 | Intake manifold water hose | 16265-11010 |
| 16265A | Hose clamp or clip (for intake manifold water hose) | 90467-21001 |
| 17110A | Vacuum hose connector | 90404-53042 |
| 17110B | Fitting (for vent hose to manifold) | 90405-10009 |
| 17111 | Intake Manifold | 17101-11100 · 17101-16020 · 17111-15030 · 17111-16020 · 17111-64040 · 17111-64090 |
| 17111A | No. 1 screw plug | 90344-53015 · 96411-43500 |
| 17111B | No. 2 screw plug | 90341-22005 · 90341-22006 |
| 17111W | Slotted spring pin (for intake manifold) | 90254-11001 |
| 17113 | intake pipe | 25541-11010 |
| 17118 | Manifold stays | 17118-15050 · 17125-16030 |
| 17119 | No. 2 manifold stay | 17118-16040 · 17139-16010 |
| 17129 | Intake pressure tank | 17129-16010 |
| 17129A | Connector No. 1 | 90404-51010 |
| 17129B | Screw plug | 90072-34107 · 90345-51006 |
| 17129D | Connector No. 2 | 90404-51096 |
| 17129H | Connector No. 4 | 90404-51026 · 90404-51050 |
| 17129J | Sealing plug (for air intake surge tank) | 96411-13500 · 96411-43500 |
| 17141 | exhaust manifold | 17140-15090 · 17140-15110 · 17141-11010 · 17141-16020 · 17141-16080 · 17141-16090 · 17141-64020 · 17141-64021 · 17141-64070 |
| 17141C | Headed straight thread plug | 90341-18006 |
| 17141D | Studs (for oxygen sensor) | 90116-08128 · 90116-08168 |
| 17148B | EGR air intake gasket | 90430-18009 |
| 17151 | Studs (for manifold to carburetor) | 90116-08204 · 90116-08214 · 90116-08216 · 92112-40832 |
| 17151D | Studs (for manifold to throttle body) | 92122-60840 |
| 17152 | Studs (for manifold to exhaust) | 90116-10017 · 90116-10058 |
| 17159 | Studs (for manifold to cylinder head) | 90116-08218 · 90116-10037 · 90116-10090 · 90116-10095 · 92112-61032 · 92122-60820 · 92122-60850 · 92122-61028 · 92122-61032 · 92132-60825 |
| 17167 | Exhaust manifold No. 1 heat shield | 17107-11010 · 17107-11080 · 17167-16010 · 17167-16030 · 17167-16040 · 17167-64030 · 17167-64031 |
| 17168 | Exhaust manifold No.2 insulation pad | 17168-10010 · 17168-16020 · 17168-64010 |
| 17172 | Gasket (manifold to cylinder head) | 17172-15010 · 17172-16010 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-10020 · 17173-16010 · 17173-64020 |
| 17176 | Gasket (intake surge tank to intake manifold) | 17176-16010 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17177-10010 · 17177-16011 · 17177-16012 · 17177-64010 |
| 17179A | No. 2 intake manifold gasket | 17171-16011 · 17171-16012 |
| 17233A | No. 1 coil spring (for counterweight) | 90510-06001 |
| 17233B | No. 2 coil spring (for counterweight) | 90501-08022 · 90507-08006 |
| 17233C | Bolt (for counterweight) | 90109-10045 |
| 17233D | Spacers (for counterweight) | 90910-10005 |
| 17233E | E-ring (for counterweight) | 96160-00800 |
| 17300 | Intake control valve assembly | 17300-16011 |
| 25508 | Manifold three-way catalytic converter sub-assembly | 25508-11020 · 25508-11021 · 25508-15010 · 25508-16020 |
| 25508A | Stud bolts (for manifold three-way catalytic converter) | 90116-08171 · 90116-10056 |
| 25509 | Manifold purifier vibration isolation pad sub-assembly | 25509-15010 · 25586-11020 · 25586-11021 · 25587-11020 · 25587-11021 |
| 25576 | Manifold three-way catalytic converter gasket | 25576-15010 |
