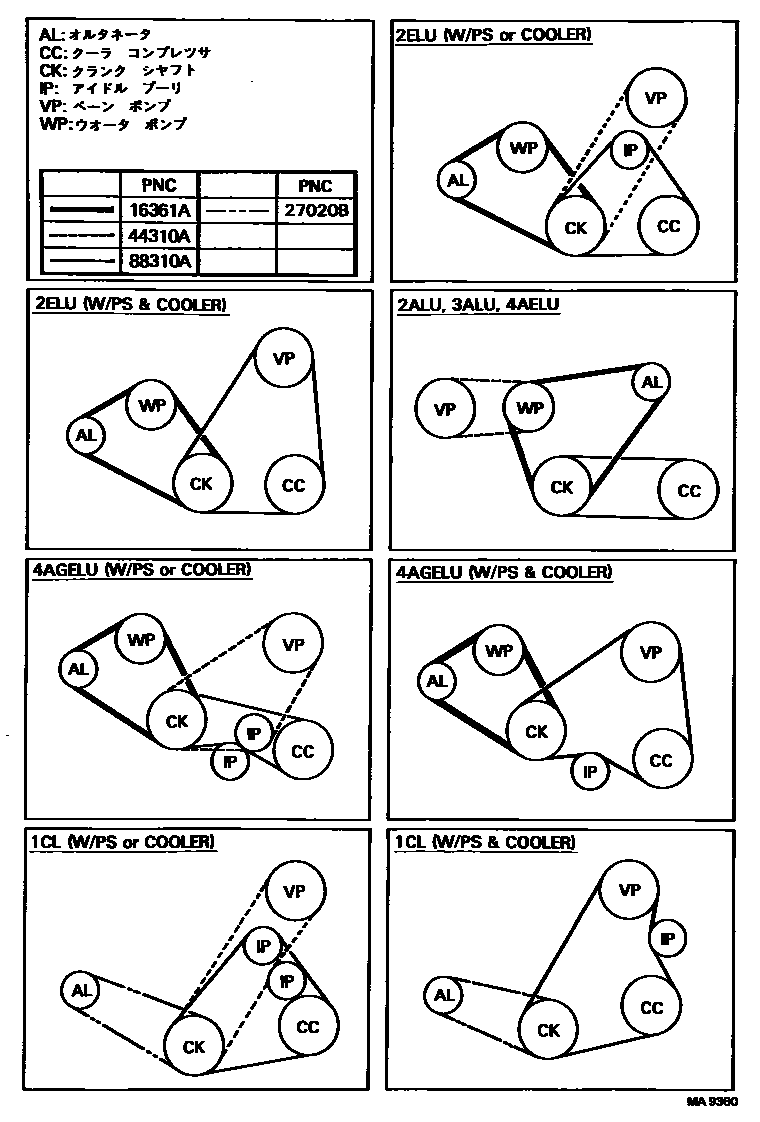

Toyota COROLLA V-Belt — Figure 1605
Toyota COROLLA EPC diagram 1605, V-Belt, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16361A | V-belts (for fans and generators) | 90916-02135 · 90916-02148 · 99365-00970 · 99365-50830 |
| 27020B | V-belt (for generator) | 90916-02125 · 90916-02140 · 90916-02155 |
| 44310A | V-belt (for vane pump) | 99363-50630 · 99364-00920 · 99365-50920 · 99365-51120 |
| 88310A | No. 1 V-belt (cooler compressor to crankshaft pulley) | 99322-00870 · 99364-50900 · 99364-51110 · 99365-00780 · 99365-00880 · 99365-01060 · 99365-51210 |
