Toyota COROLLA Oil Filter — Figure 1502

Toyota COROLLA EPC diagram 1502, Oil Filter, with 3 images and 6 PNC and OE references.

Toyota COROLLA Oil Filter EPC diagram — MA6093A
Oil Filter — MA6093A (198305 – 999999)

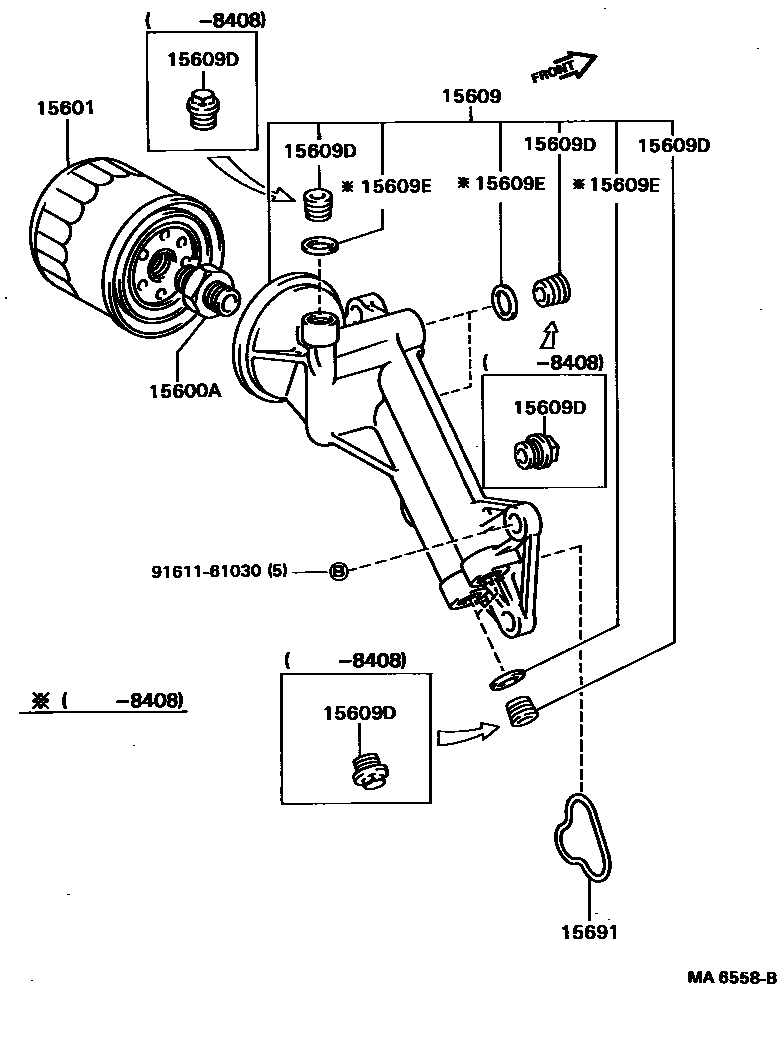

Toyota COROLLA Oil Filter EPC diagram — MA6558B
Oil Filter — MA6558B (198305 – 999999)
Toyota COROLLA Oil Filter EPC diagram — MA7826A
Oil Filter — MA7826A (198505 – 999999)

PNC and OE references

PNCPart nameOE numbers
15600AConnector (for oil filter)90404-19001 · 90404-19004 · 90404-19007
15601Oil filter sub-assembly15600-13051 · 15600-25010 · 15601-13010 · 15601-13011
15609Oil filter bracket sub-assembly15608-64010 · 15608-64011
15609DStraight threaded plug with head (for oil filter bracket)90341-16009 · 90344-53002
15609EHeaded straight thread plug liner90430-16242
15691oil filter gasket15691-64020 · 15691-64030
