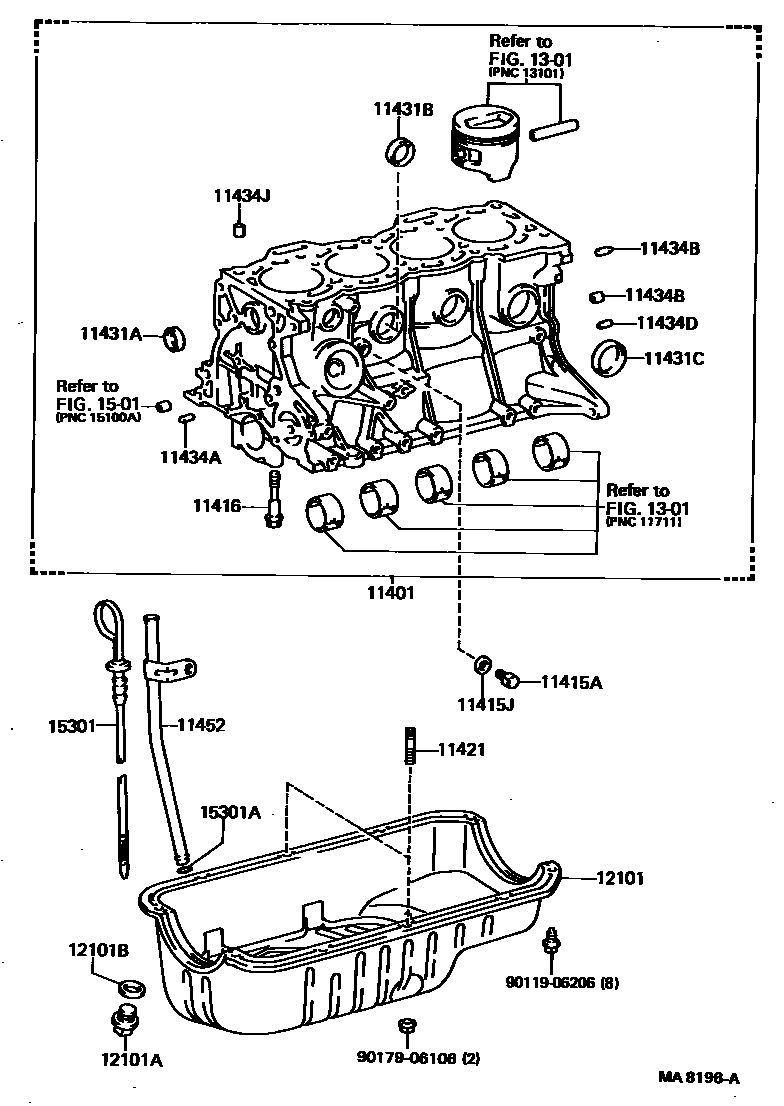

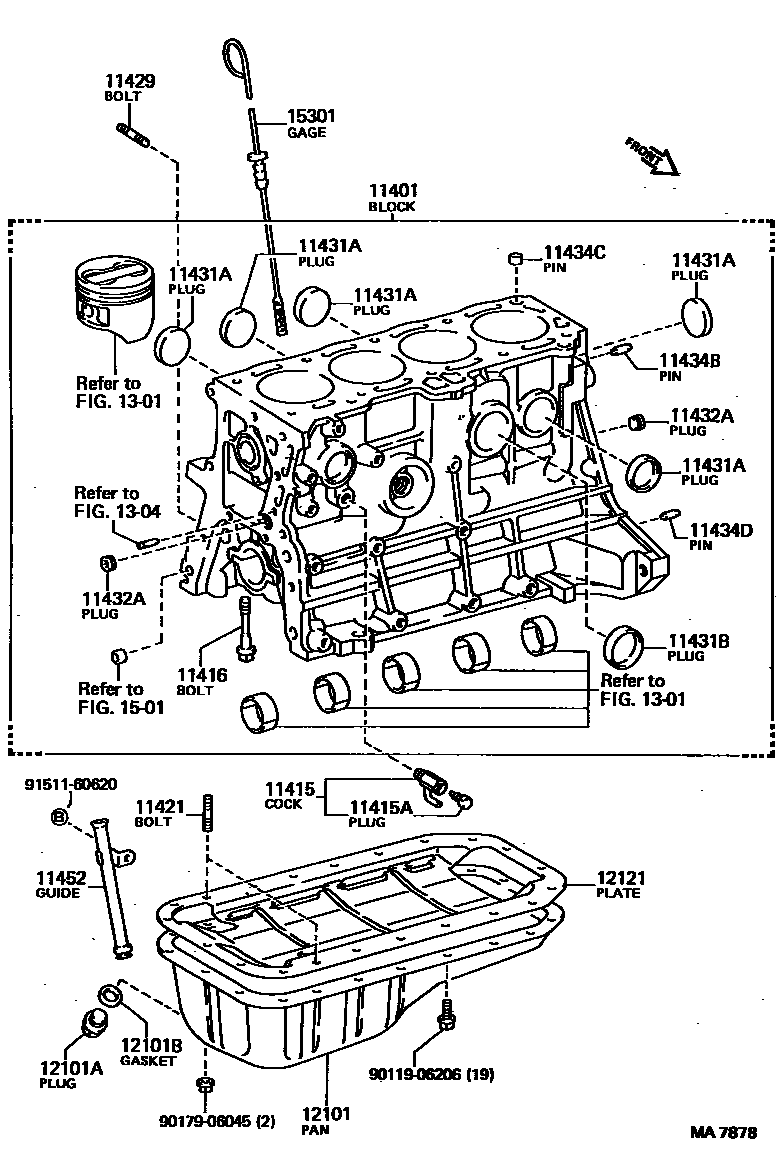

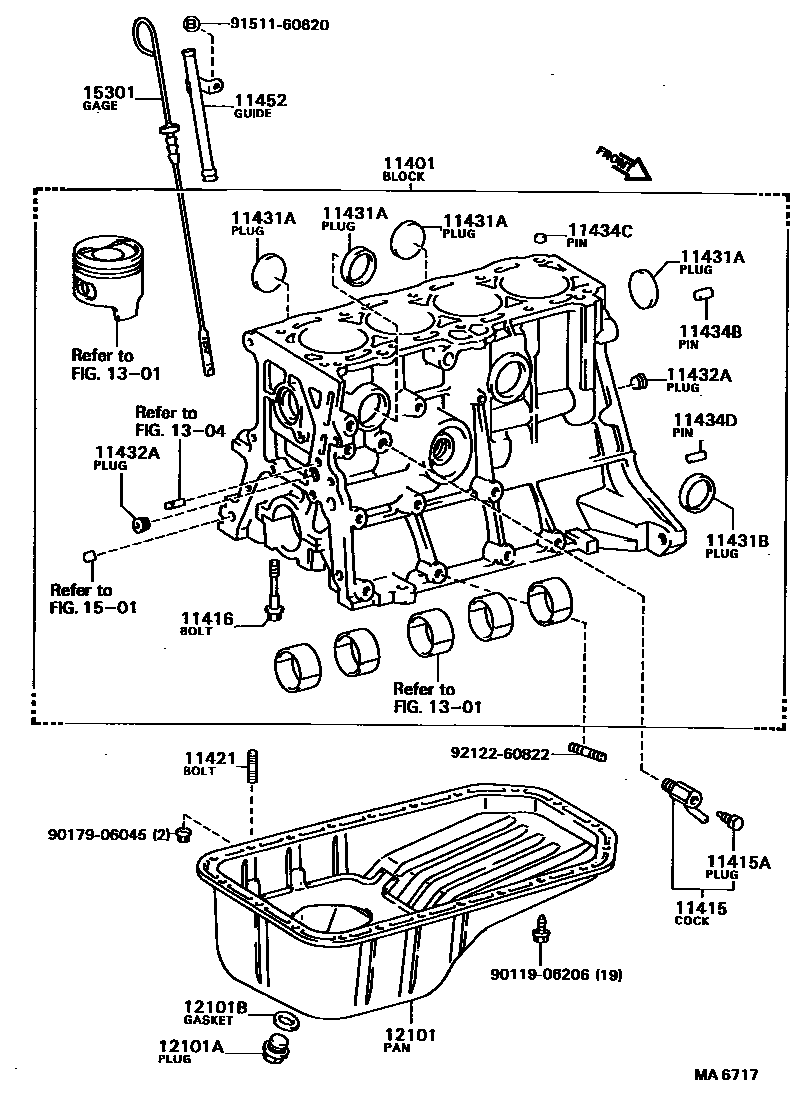

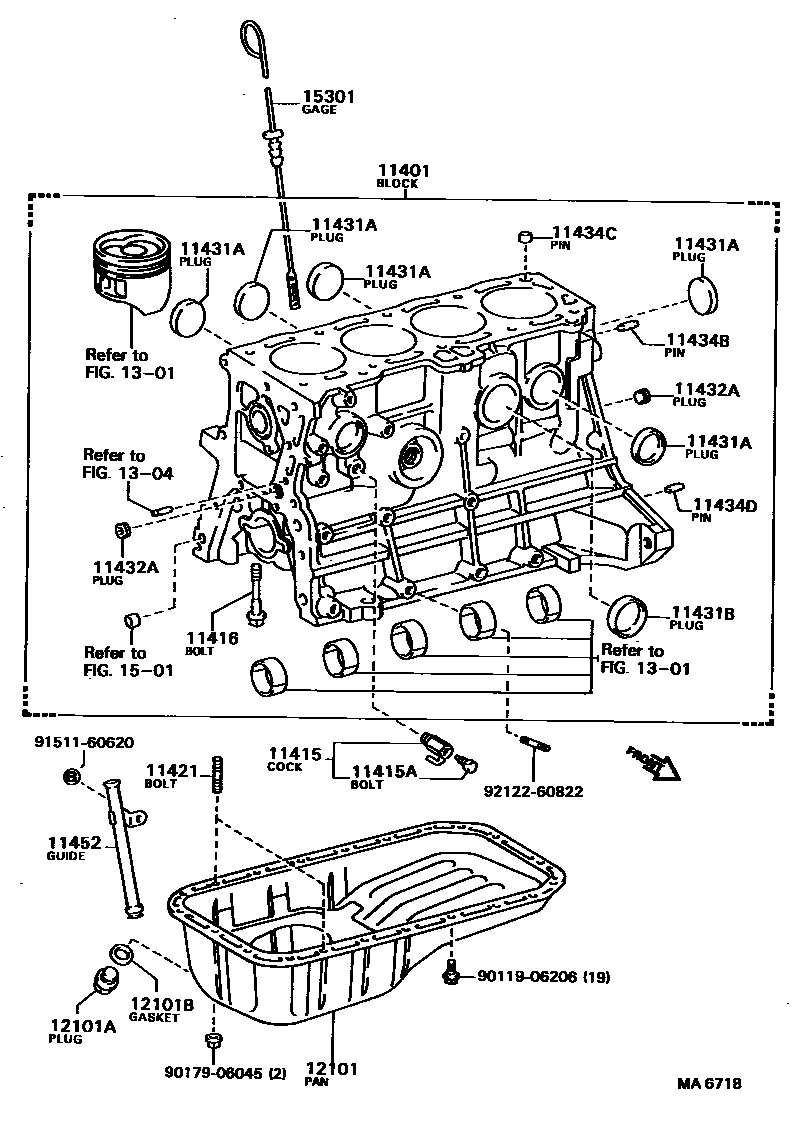

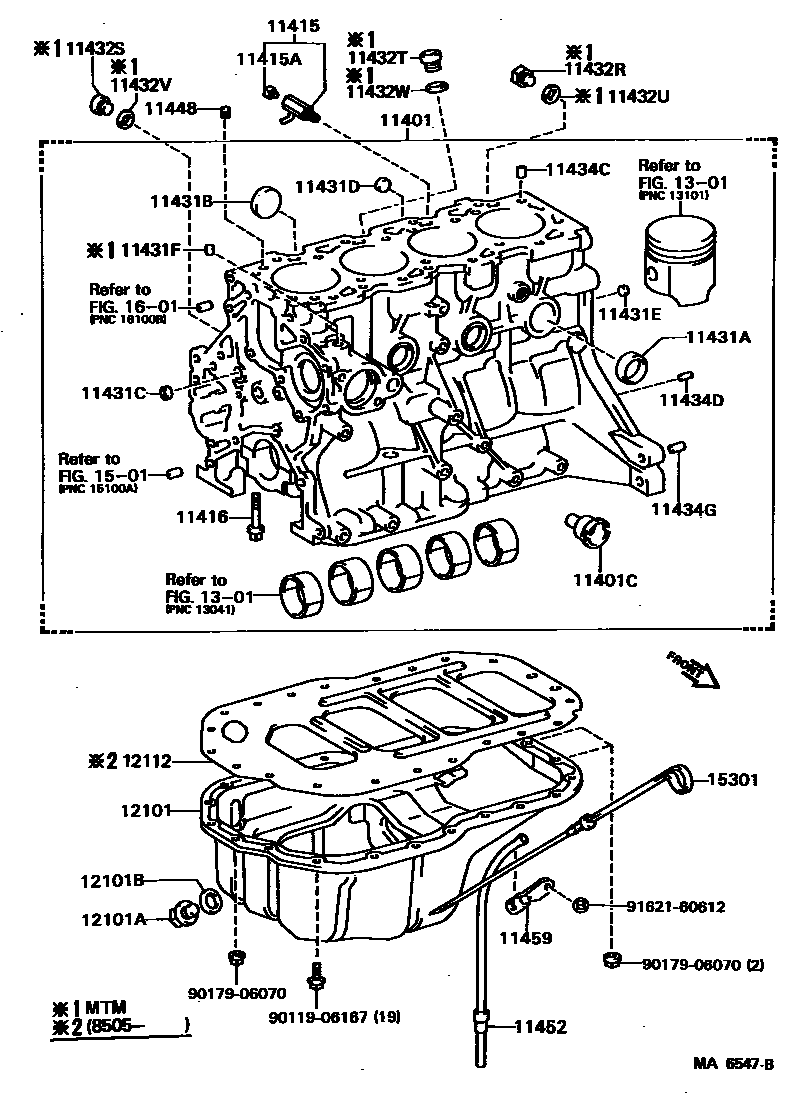

Toyota COROLLA Cylinder Block — Figure 1105
Toyota COROLLA EPC diagram 1105, Cylinder Block, with 5 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11401 | Cylinder block sub-assembly | 11401-19175 · 11401-19185 · 11401-19195 · 11401-19215 · 11401-19296 · 11401-19297 · 11401-19298 · 11401-69115 · 11401-69116 · 11401-69205 · 11401-69206 · 11401-69207 |
| 11401C | Flange (for water bypass pipe) | 16353-64010 |
| 11415 | Water release switch sub-assembly (for cylinder block) | 90910-09075 · 90910-09079 · 90910-09088 |
| 11415A | Water drain switch screw plug (for cylinder block) | 90109-10023 · 90341-12012 · 90910-09087 |
| 11415J | Gasket (for drain switch) | 90430-13002 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90105-10007 · 90910-02019 · 90910-02061 |
| 11421 | Stud bolts (for oil pan) | 90116-06014 · 90116-06022 · 90116-06049 |
| 11429 | Studs (for generator bracket) | 90116-08170 |
| 11431A | No. 1 sealing plug (for cylinder block) | 96411-42500 · 96411-43500 |
| 11431B | No. 2 sealing plug (for cylinder block) | 96411-43000 · 96411-44000 |
| 11431C | No. 3 sealing plug (for cylinder block) | 96411-11800 · 96411-41800 · 96411-43500 |
| 11431D | No. 4 sealing plug (for cylinder block) | 96411-11800 · 96411-41800 |
| 11431E | No. 5 sealing plug (for cylinder block) | 96411-11800 · 96411-41800 |
| 11431F | No. 6 sealing plug (for cylinder block) | 90249-17002 · 90331-17001 |
| 11432A | No. 1 headed tapered thread plug | 90344-53008 |
| 11432R | No. 1 headed straight thread plug (for cylinder block) | 90341-18006 · 90341-18017 |
| 11432S | No. 2 headed straight thread plug (for cylinder block) | 90341-20002 |
| 11432T | No. 3 headed straight thread plug (for cylinder block) | 90341-22001 |
| 11432U | No. 1 straight thread plug gasket (for cylinder block) | 90430-18001 |
| 11432V | No. 2 straight thread plug gasket (for cylinder block) | 90430-20004 |
| 11432W | No. 3 straight thread plug gasket (for cylinder block) | 90430-22003 |
| 11434A | Direct sales (for timing gear cover assembly) | 90250-06068 |
| 11434B | Direct sales (for clutch housing assembly) | 90250-10017 · 90250-10052 · 90250-10113 · 90253-15001 |
| 11434C | Direct sales (for cylinder head components) | 90253-13017 · 90253-14001 |
| 11434D | Direct sales (for engine rear oil seal) | 90250-06003 · 90250-06068 |
| 11434G | Direct sales (for end plates) | 90250-10113 |
| 11434J | Ring pin (for cylinder head assembly) | 90253-12001 |
| 11448 | Cylinder block oil orifice | 11448-54010 |
| 11452 | Engine oil level gauge guide | 11452-10010 · 11452-15010 · 11452-64030 |
| 11459 | Oil level gauge guide bracket | 90929-01049 |
| 12101 | Oil pan sub-assembly | 12101-10010 · 12101-15040 · 12101-15090 · 12101-64020 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90341-12012 · 90341-18089 |
| 12101B | Gasket (for oil pan drain plug) | 90430-12011 · 90430-12019 · 90430-18013 · 90430-18244 |
| 12112 | No. 2 oil pan | 12112-64020 |
| 12121 | No. 1 oil pan baffle | 12122-16011 · 12122-16020 |
| 15301 | Engine oil level scoring assembly | 15301-10020 · 15301-10021 · 15301-15030 · 15301-64010 |
| 15301A | O-ring (for engine oil level gauge) | 96711-19010 |
