Toyota COROLLA Cylinder Head — Figure 1104

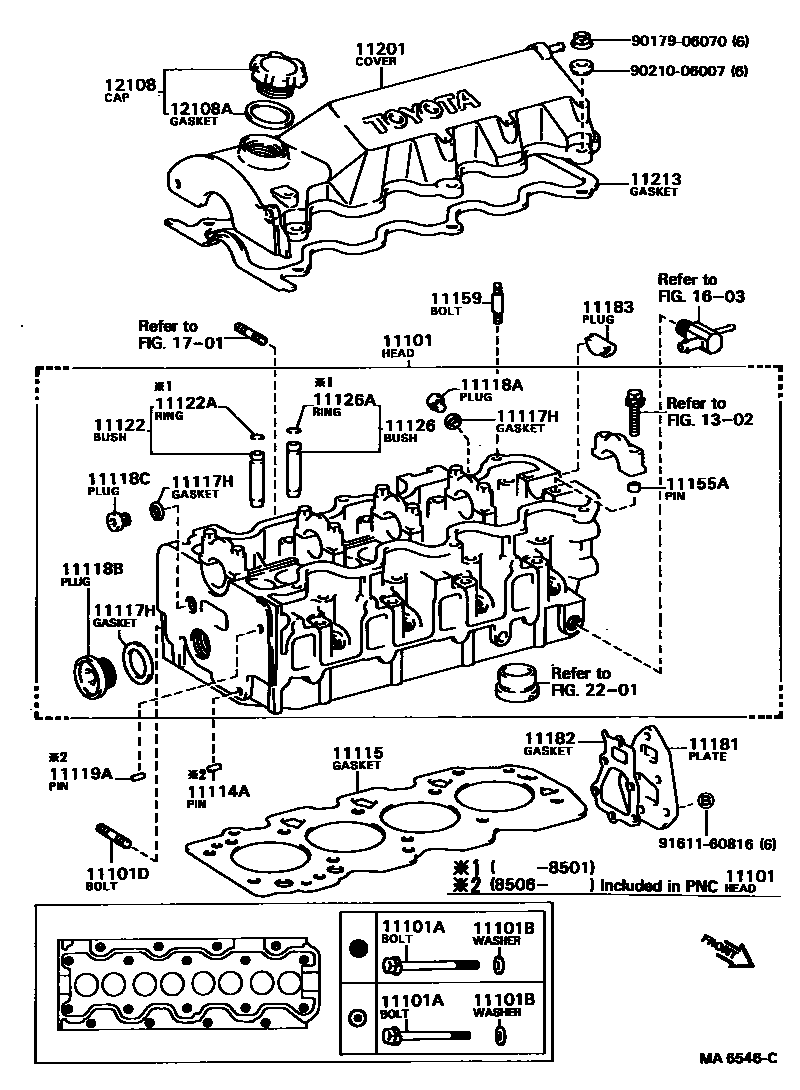

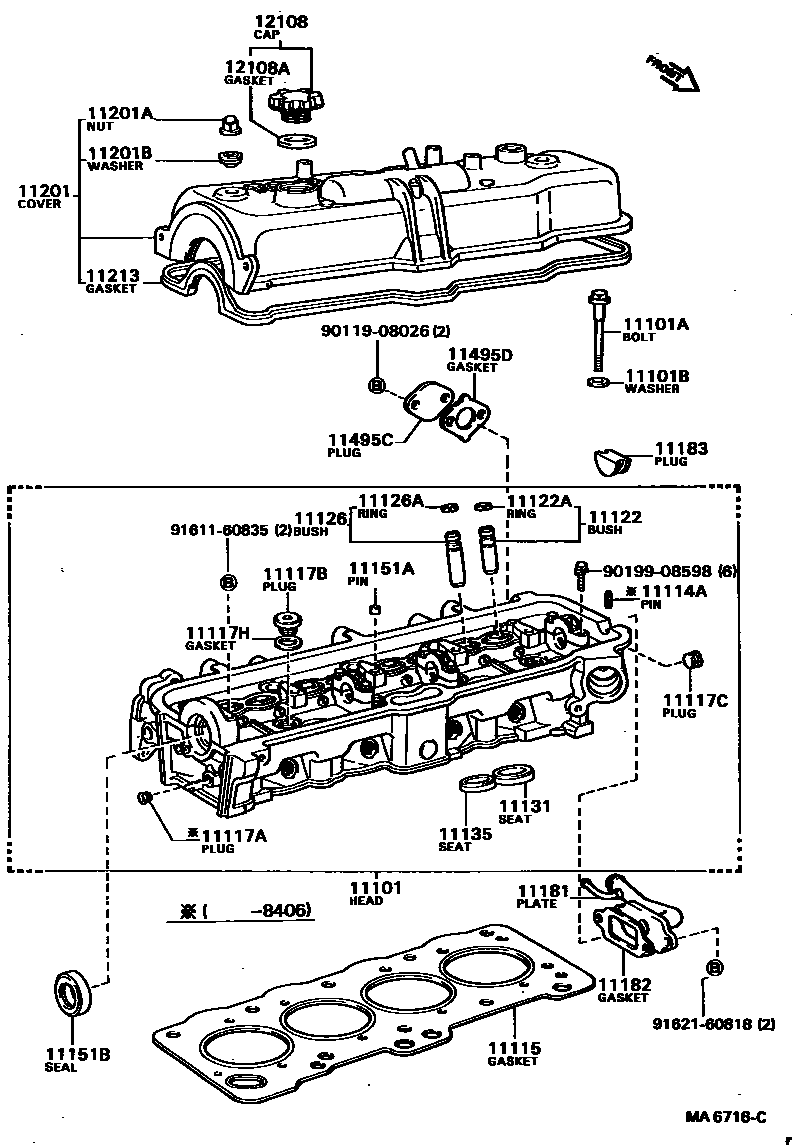

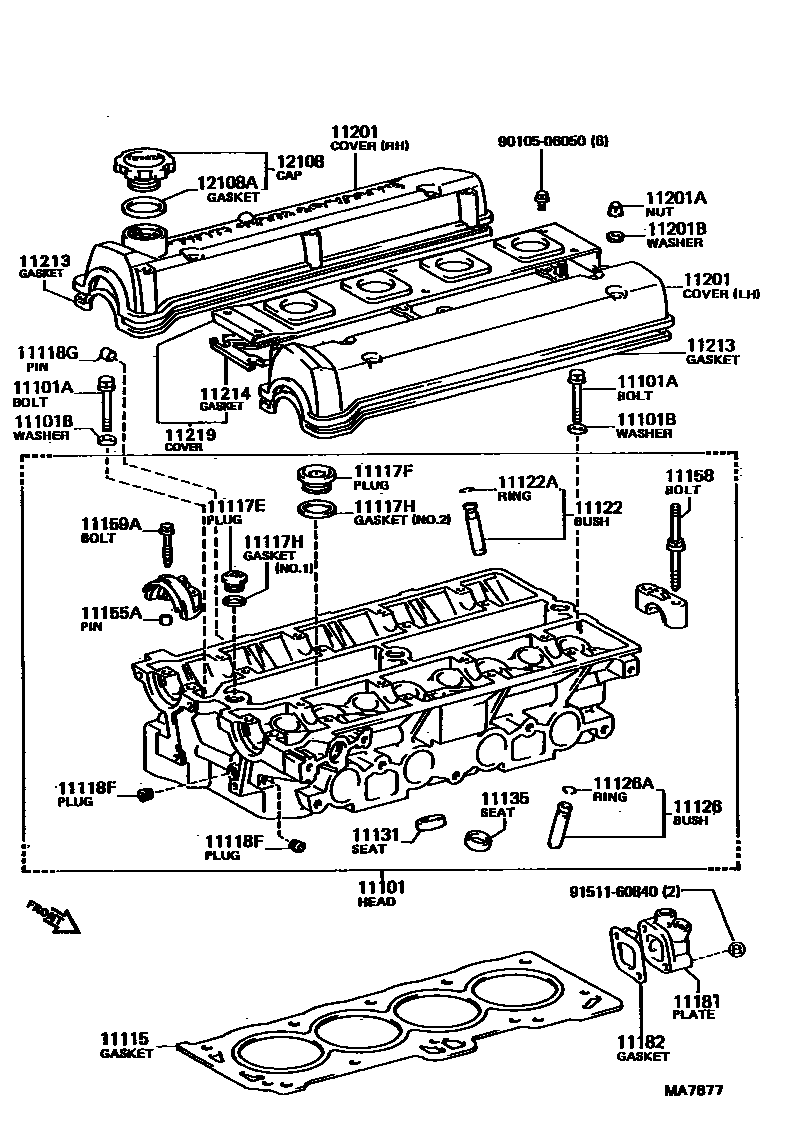

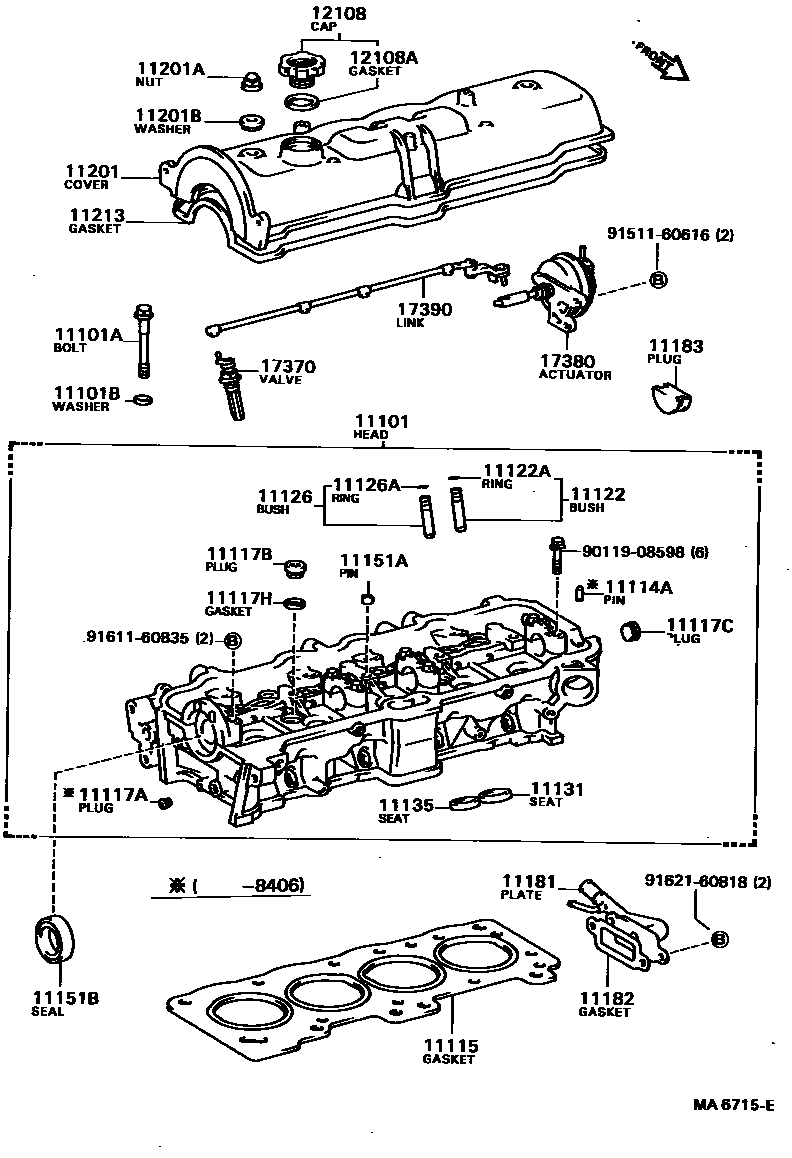

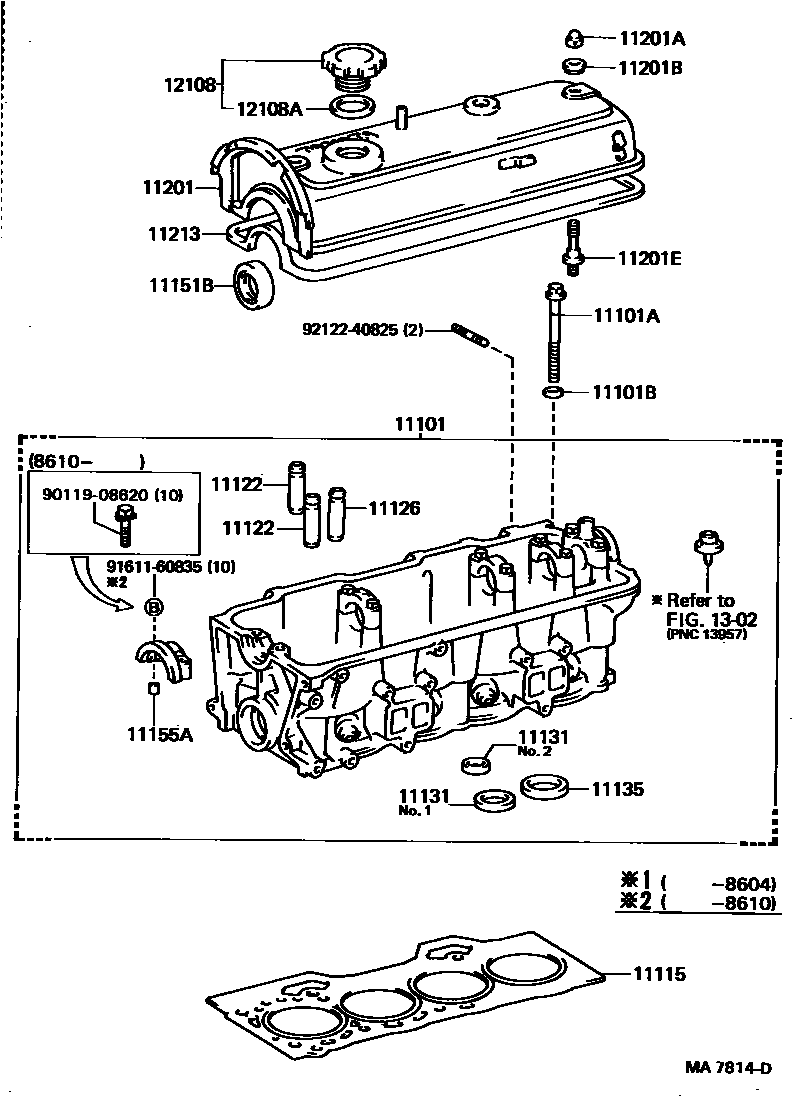

Toyota COROLLA EPC diagram 1104, Cylinder Head, with 5 images and 47 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11101 | CYLINDER HEAD SUB-ASSY | 11101-15031 · 11101-15040 · 11101-15070 · 11101-16010 · 11101-19145 · 11101-19146 · 11101-19155 · 11101-19156 · 11101-64011 · 11101-64012 · 11101-64060 |
| 11101A | BOLT (FOR CYLINDER HEAD) | 90105-09002 · 90105-11011 · 90105-11012 · 90105-11018 · 90105-11019 · 90109-10025 · 90109-10058 · 90109-10059 |
| 11101B | Flat Washer (for cylinder head assembly) | 90201-09015 · 90201-10344 · 90201-12222 |
| 11101D | Stud bolts (for water outlet) | 92122-60820 |
| 11114A | direct selling | 90250-06068 · 90254-03003 |
| 11115 | GASKET, CYLINDER HEAD | 11115-11010 · 11115-11060 · 11115-14031 · 11115-15060 · 11115-16020 · 11115-16030 · 11115-16050 · 11115-64010 · 11115-64050 · 11115-64070 |
| 11117A | No. 1 headed tapered thread plug | 90344-51002 |
| 11117B | No. 2 headed tapered thread plug | 90341-20002 |
| 11117C | No. 3 headed tapered thread plug | 90344-54002 |
| 11117E | PLUG, STRAIGHT SCREW W/HEAD, NO.1 | 90341-24002 |
| 11117F | No. 2 headed straight thread plug | 90341-32070 |
| 11117H | Gasket (for coolant hole) | 90430-10204 · 90430-12005 · 90430-12010 · 90430-20004 · 90430-24002 · 90430-33133 |
| 11118A | No. 1 straight screw plug | 90341-10005 |
| 11118B | No. 2 straight screw plug | 90341-32070 |
| 11118C | No. 3 straight screw plug | 90341-12002 |
| 11118F | No. 1 tapered screw plug | 90344-51002 |
| 11118G | Slotted Spring Pin No. 1 | 90254-11002 |
| 11119A | No. 1 direct sales | 90250-06068 |
| 11122 | BUSH, INTAKE VALVE GUIDE | 11122-10040 · 11122-15011 · 11122-15020 · 11122-16020 · 11122-64010 · 11123-10040 · 11123-15011 · 11123-15020 · 11123-16020 · 11123-64010 · 11126-24020 · 11127-24020 |
| 11122A | Shaft snap ring (for valve guide bushing) | 90520-10001 · 90520-10004 · 90520-12049 |
| 11126 | BUSH, EXHAUST VALVE GUIDE | 11122-10040 · 11122-16020 · 11123-10040 · 11123-16020 · 11126-15011 · 11126-15020 · 11126-24020 · 11126-64010 · 11126-64020 · 11127-15011 · 11127-15020 · 11127-24020 · 11127-64010 · 11127-64020 |
| 11126A | Shaft snap ring (for valve guide bushing) | 90520-10001 · 90520-10004 · 90520-12049 |
| 11131 | intake valve seat | 11131-10020 · 11131-15010 · 11131-15020 · 11131-16010 · 11132-10020 · 11132-15010 · 11132-15020 · 11132-16010 · 11137-10010 · 11138-10010 |
| 11135 | Exhaust valve seat | 11135-10020 · 11135-15020 · 11135-16010 · 11136-10020 · 11136-15020 · 11136-16010 |
| 11151A | Ring pin (for securing camshaft bearing cap) | 90253-11021 |
| 11151B | OIL SEAL (FOR CAMSHAFT SETTING) | 90311-35003 · 90311-35013 · 90311-35017 |
| 11155A | PIN, RING W/HEAD | 90253-09001 · 90253-11021 |
| 11158 | STUD (FOR CYLINDER HEAD TO HEAD COVER) | 90109-06079 |
| 11159 | Studs (for mounting cylinder head to camshaft bearing cap) | 90116-06023 |
| 11159A | BOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP) | 90109-06080 |
| 11181 | cylinder head rear plate | 11181-15040 · 11181-16020 · 11181-16070 · 11181-64010 |
| 11182 | Rear cylinder head gasket | 11182-15011 · 11182-16010 · 11182-64010 |
| 11183 | PLUG, SEMICIRCULAR | 11183-15010 · 11183-64010 |
| 11201 | CYLINDER HEAD COVER SUB-ASSY | 11201-10010 · 11201-64020 · 11201-64050 · 11210-15040 · 11210-16010 · 11210-19025 · 11212-16010 |
| 11201A | Cap nut (for cylinder head cover) | 90176-06012 · 90176-08007 |
| 11201B | Gasket (for cylinder head cover) | 90210-06008 · 90210-09001 |
| 11201E | Studs (for cylinder head cover assembly) | 90116-08190 |
| 11213 | GASKET, CYLINDER HEAD COVER | 11213-10010 · 11213-15020 · 11213-15040 · 11213-16010 · 11213-64020 |
| 11214 | No. 2 cylinder head cover gasket | 11214-16020 |
| 11219 | No. 3 cylinder head cover | 11219-16030 |
| 11495C | Plate screw plug (for cylinder head) | 11494-16010 |
| 11495D | Gasket (for cylinder head) | 11496-16010 |
| 12108 | OIL FILLER CAP SUB-ASSY | 12180-10020 · 12180-13030 · 12180-70010 · 12180-71011 |
| 12108A | GASKET (FOR OIL FILLER CAP) | 12195-71010 · 12195-71020 · 90430-37140 |
| 17370 | Vortex control valve assembly | 17370-15010 |
| 17380 | Eddy current control actuator assembly | 17380-15010 |
| 17390 | Eddy current control connecting rod assembly | 17390-15010 |
