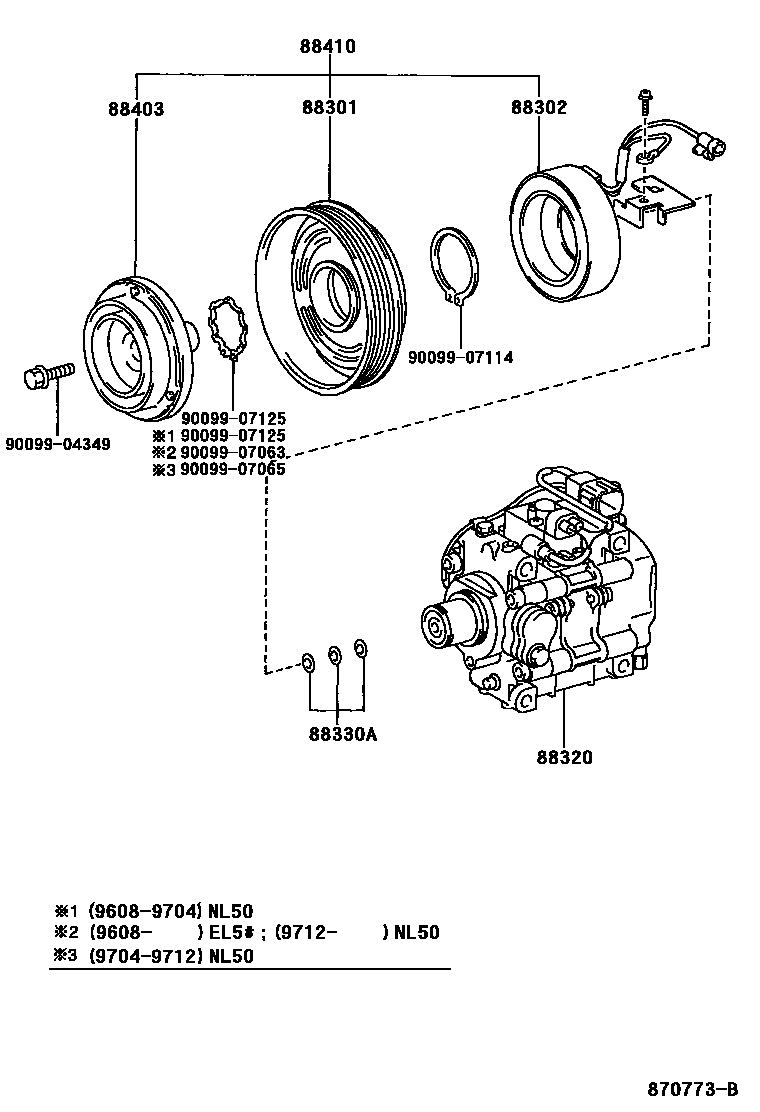

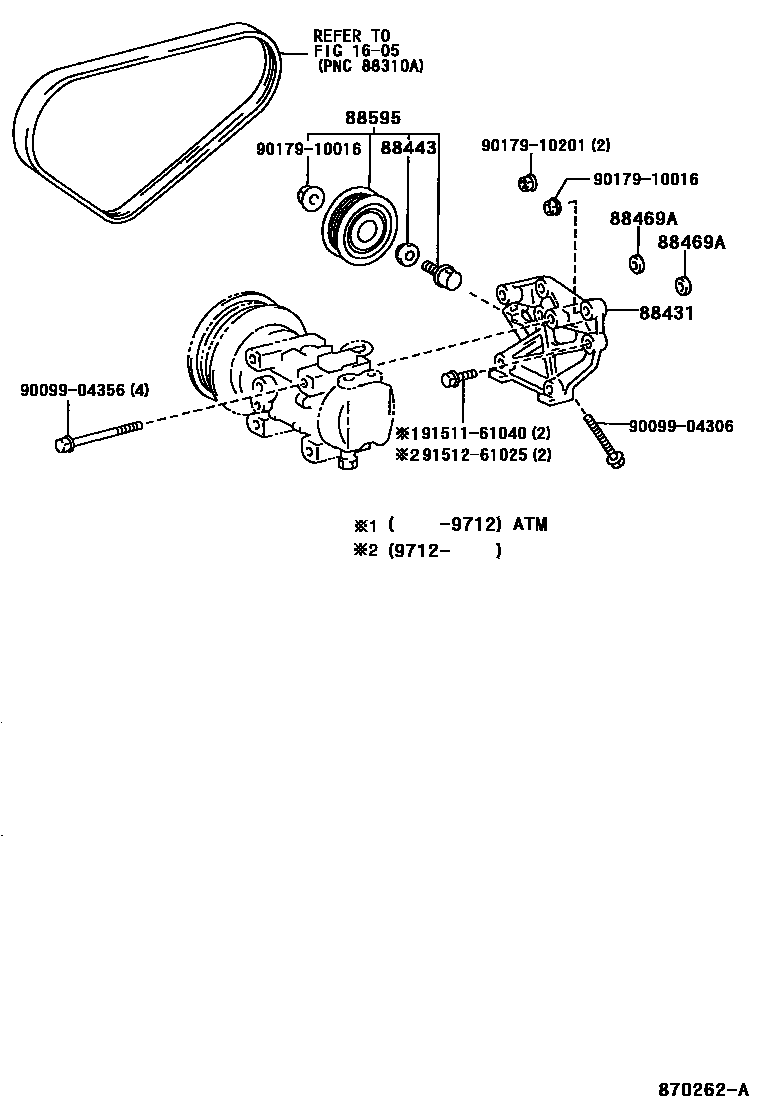

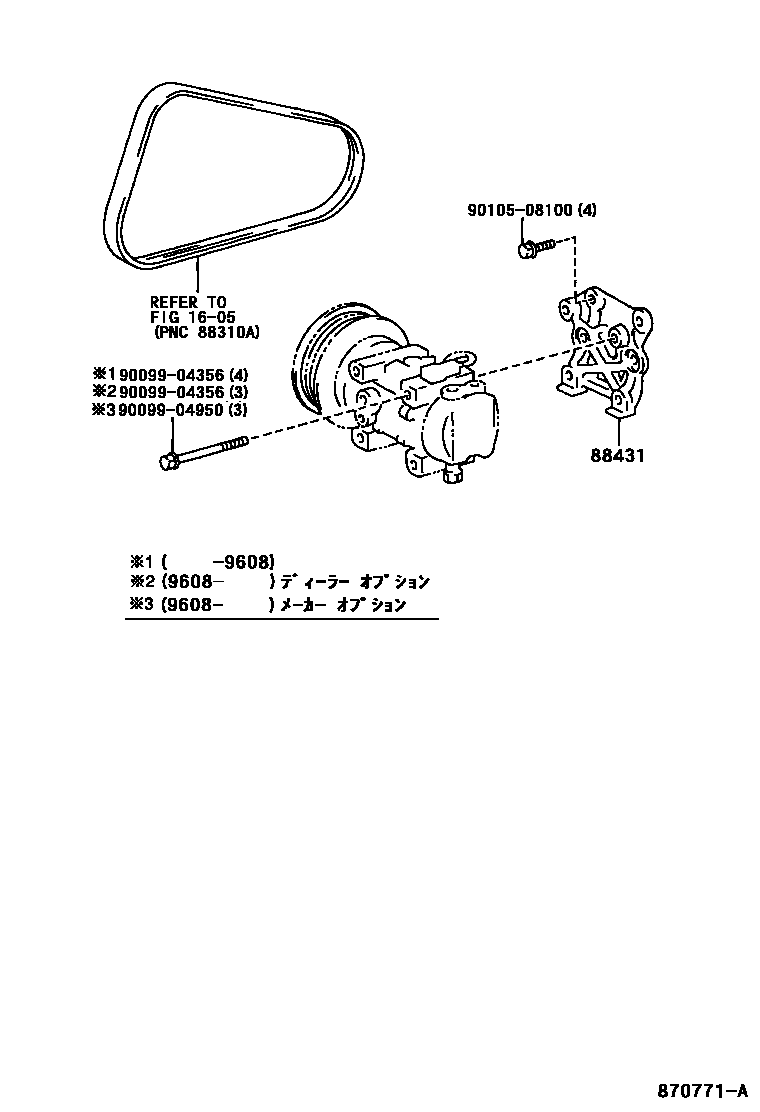

Toyota COROLLA Heating & Air Conditioning - Compressor — Figure 8719
Toyota COROLLA EPC diagram 8719, Heating & Air Conditioning - Compressor, with 3 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88301 | Electromagnetic clutch rotor sub-assembly | 88412-10180 · 88412-16130 · 88412-16160 · 88412-1A010 |
| 88302 | Electromagnetic clutch stator sub-assembly | 88411-16070 · 88411-1A040 |
| 88320 | Cooler Compressor Assembly | 88320-10511 · 88320-10550 · 88320-10551 · 88320-16390 · 88320-16430 |
| 88330A | Washer (for electromagnetic clutch) | 88335-14020 |
| 88403 | Electromagnetic clutch hub sub-assembly | 88403-16020 · 88403-1A010 |
| 88410 | Magnetic Clutch Assembly | 88410-10290 · 88410-16181 · 88410-16240 · 88410-16280 |
| 88431 | Compressor No. 1 mounting bracket | 88431-10080 · 88431-16060 · 88431-16070 · 88431-16120 · 88431-16140 |
| 88443 | Idler gear collar | 88443-36010 |
| 88469A | Adjustment collar | 88469-16050 |
| 88595 | Cooler compressor idler pulley | 88440-12210 · 88440-12230 |
