Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718

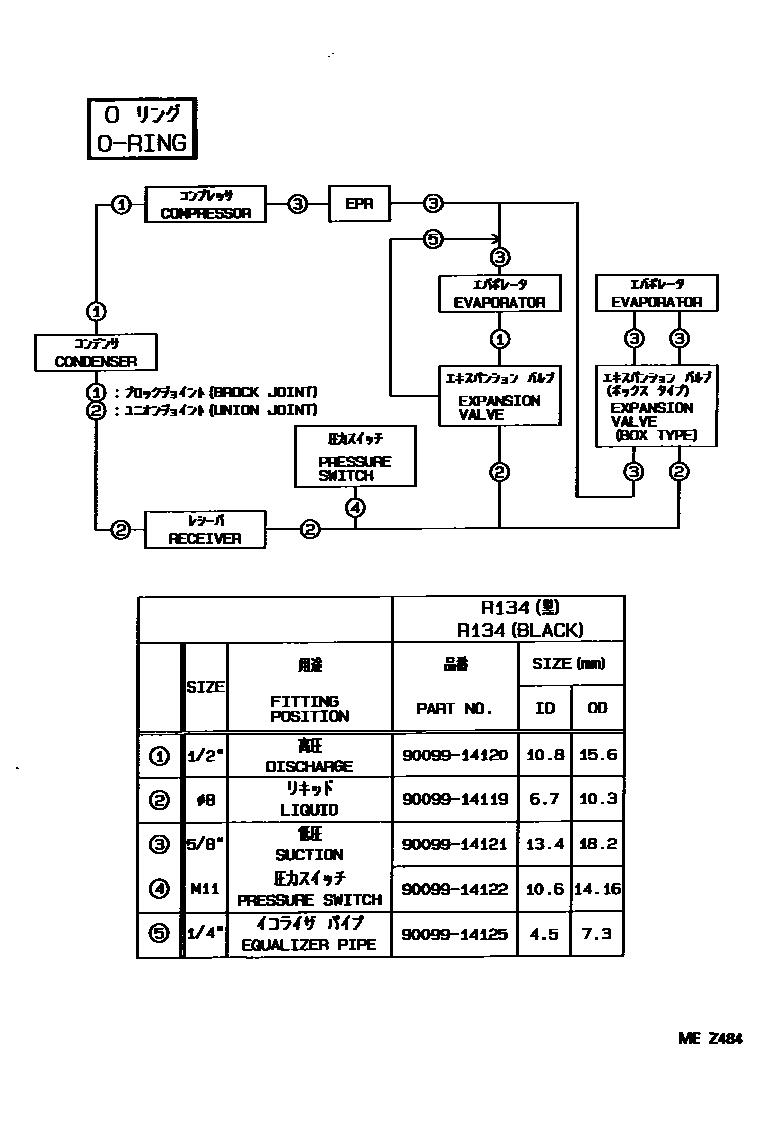

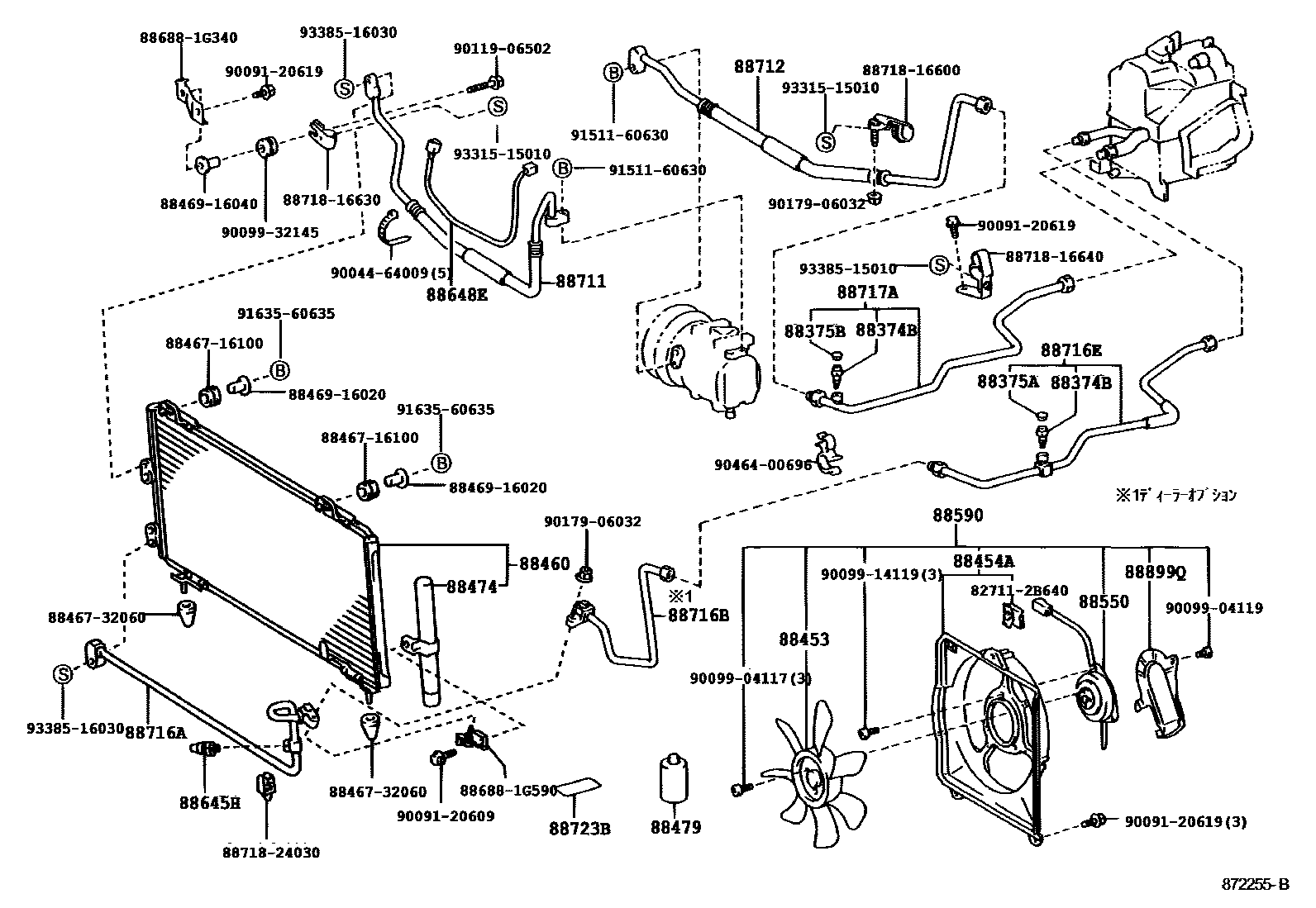

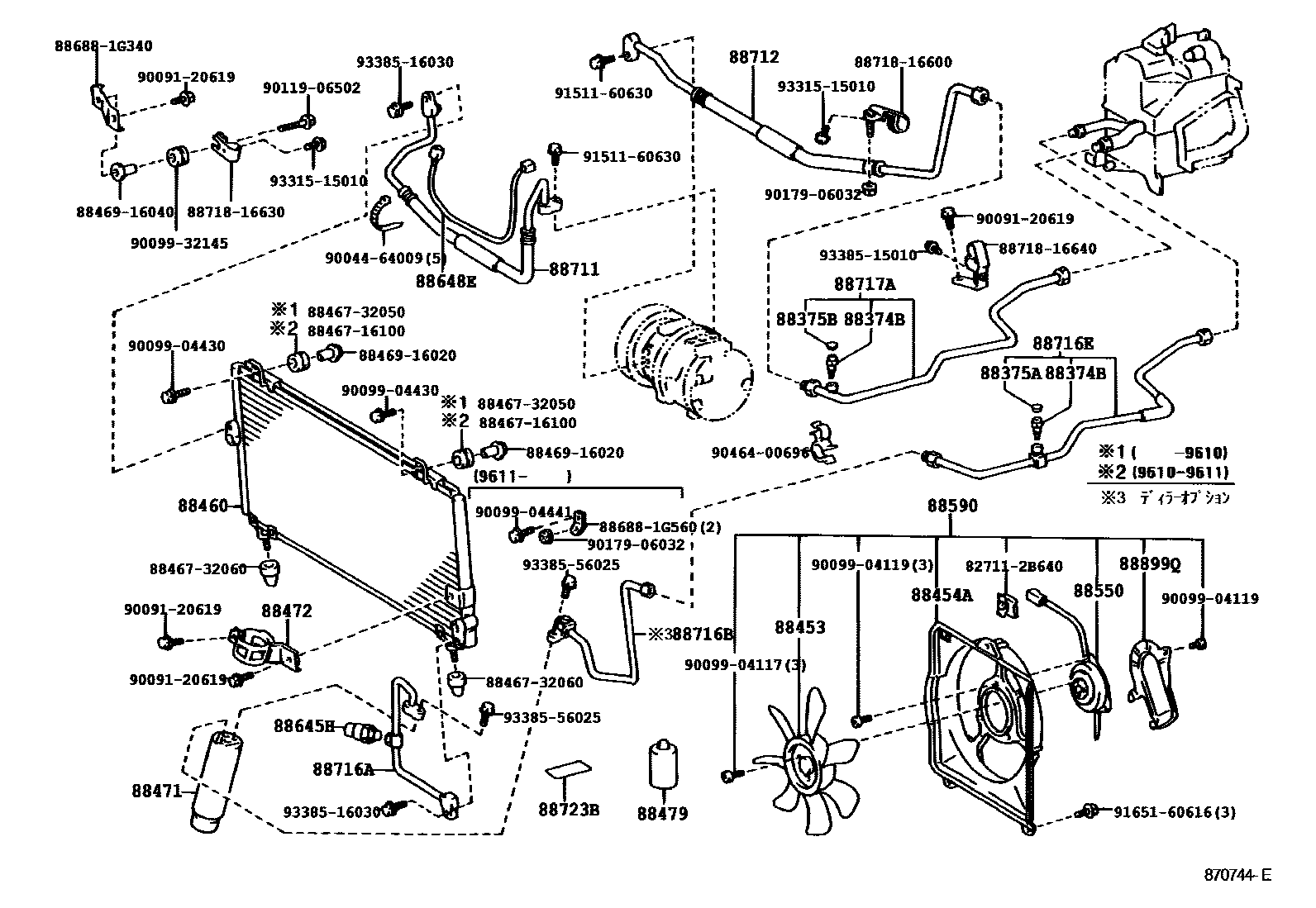

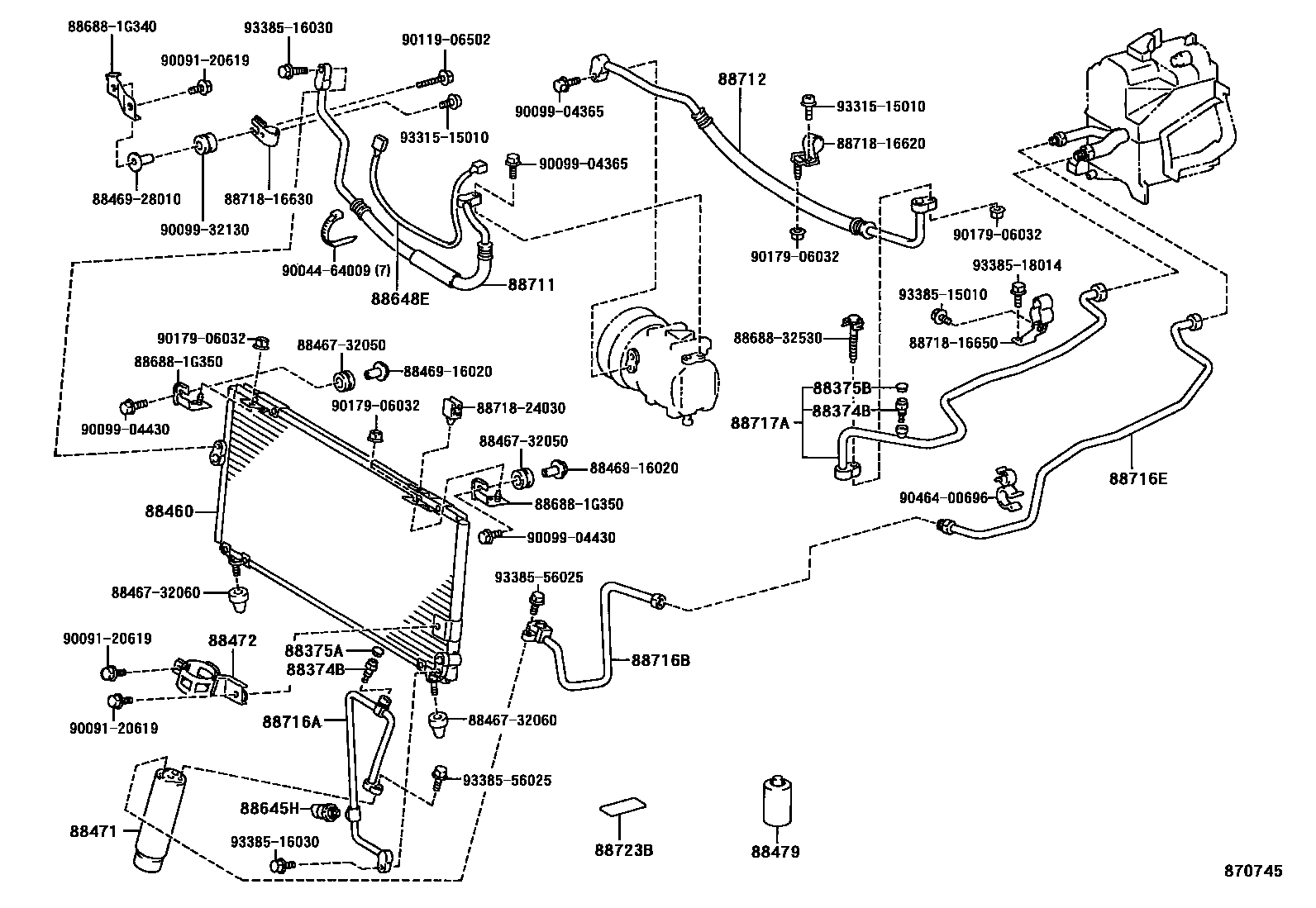

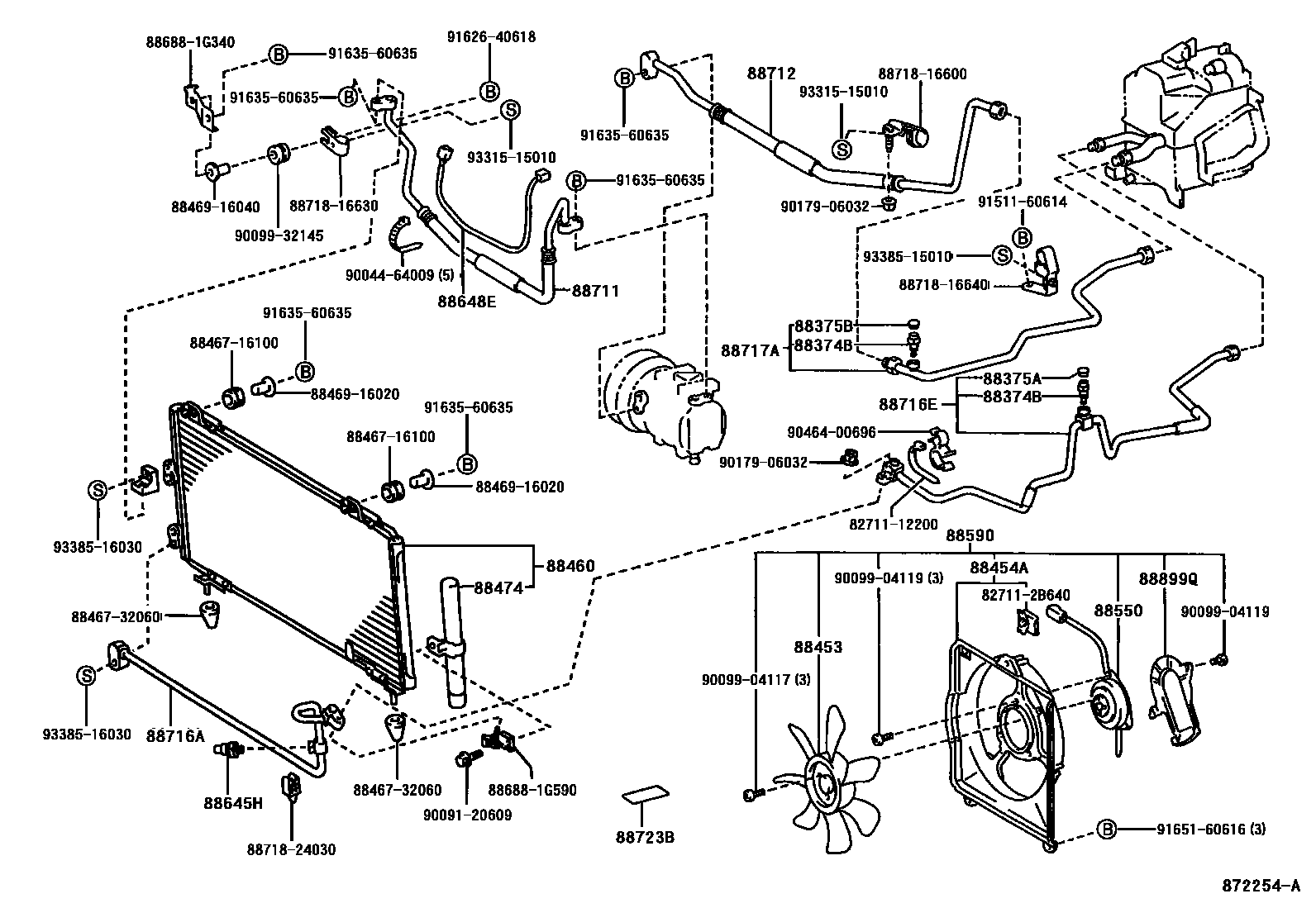

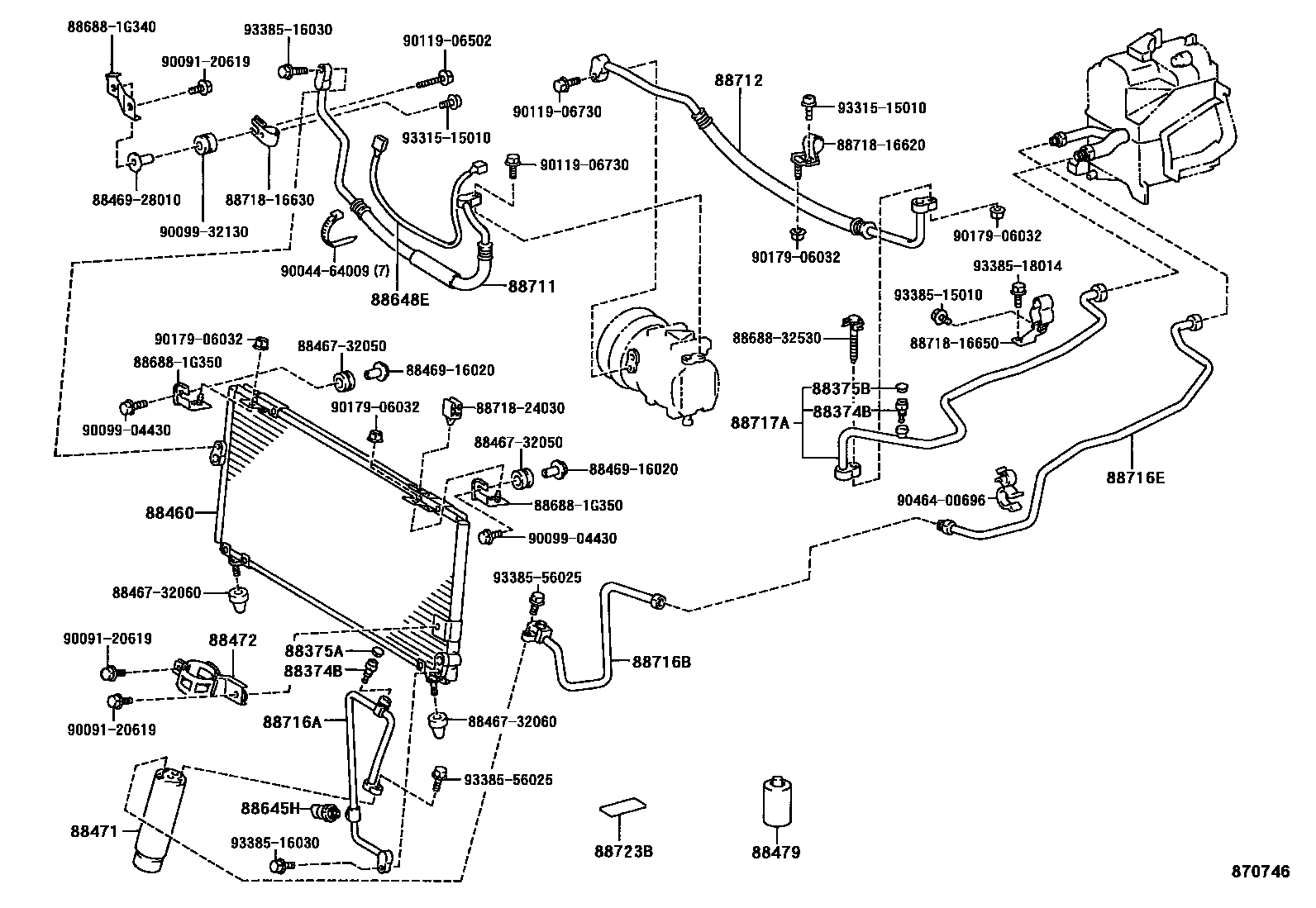

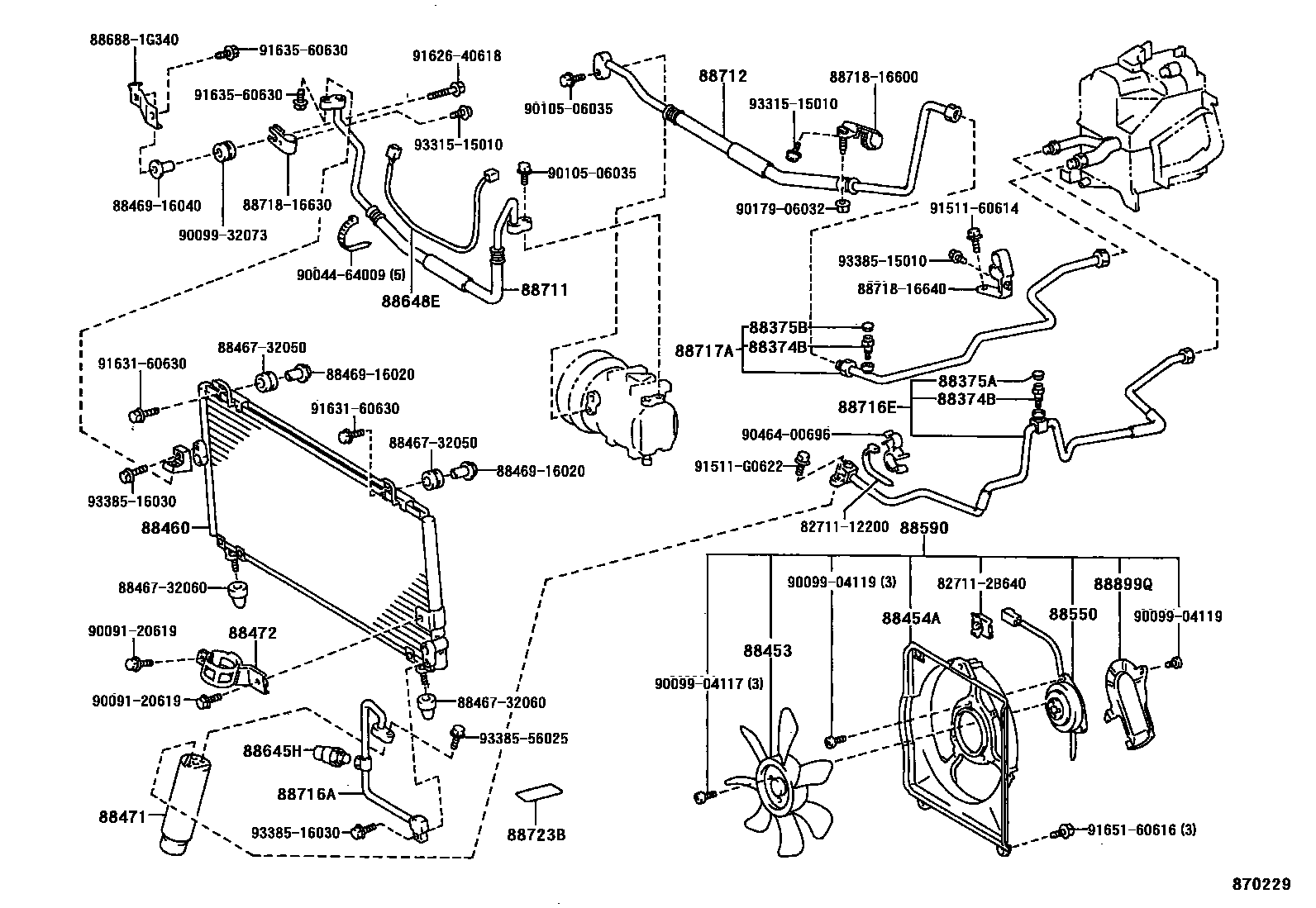

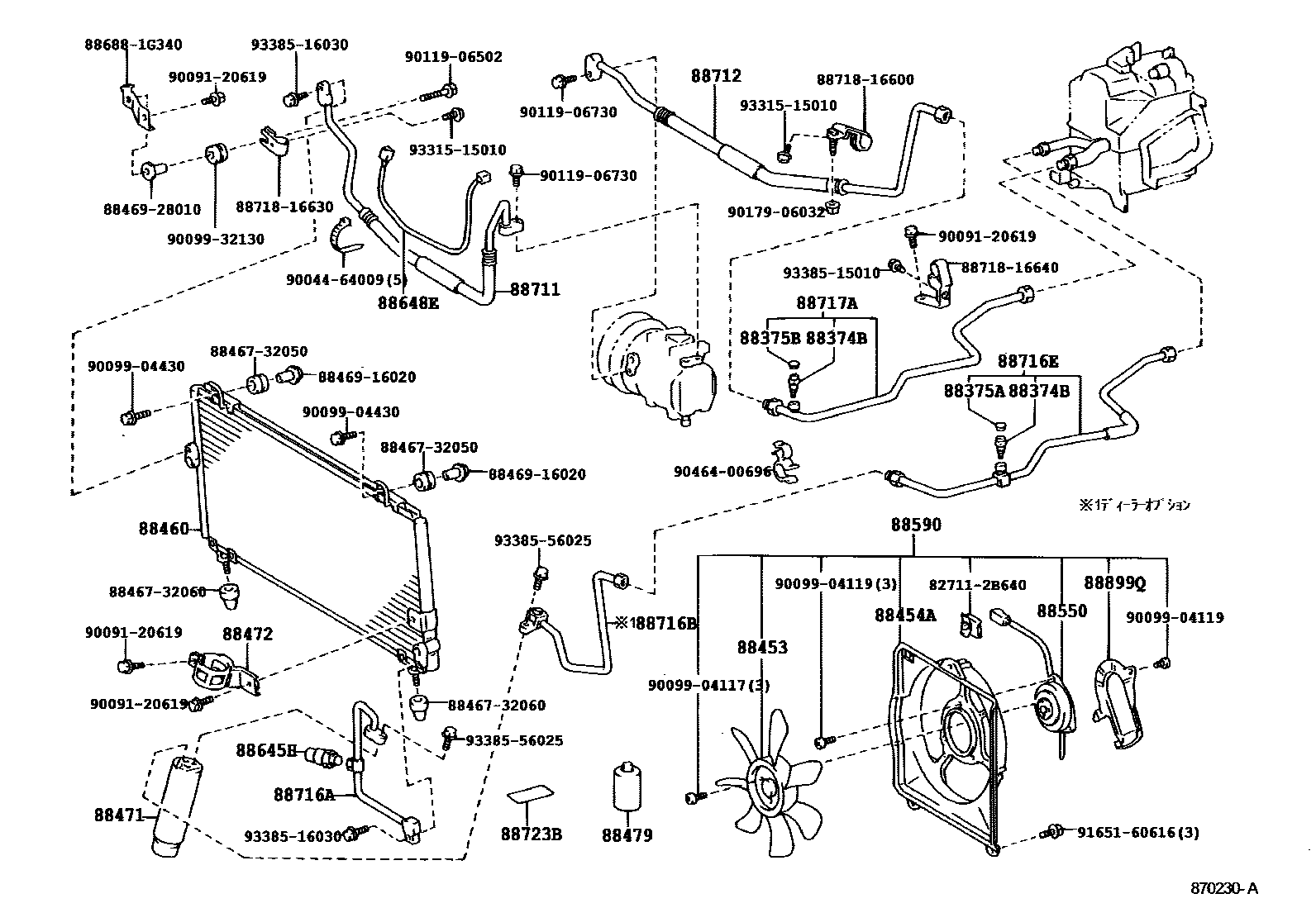

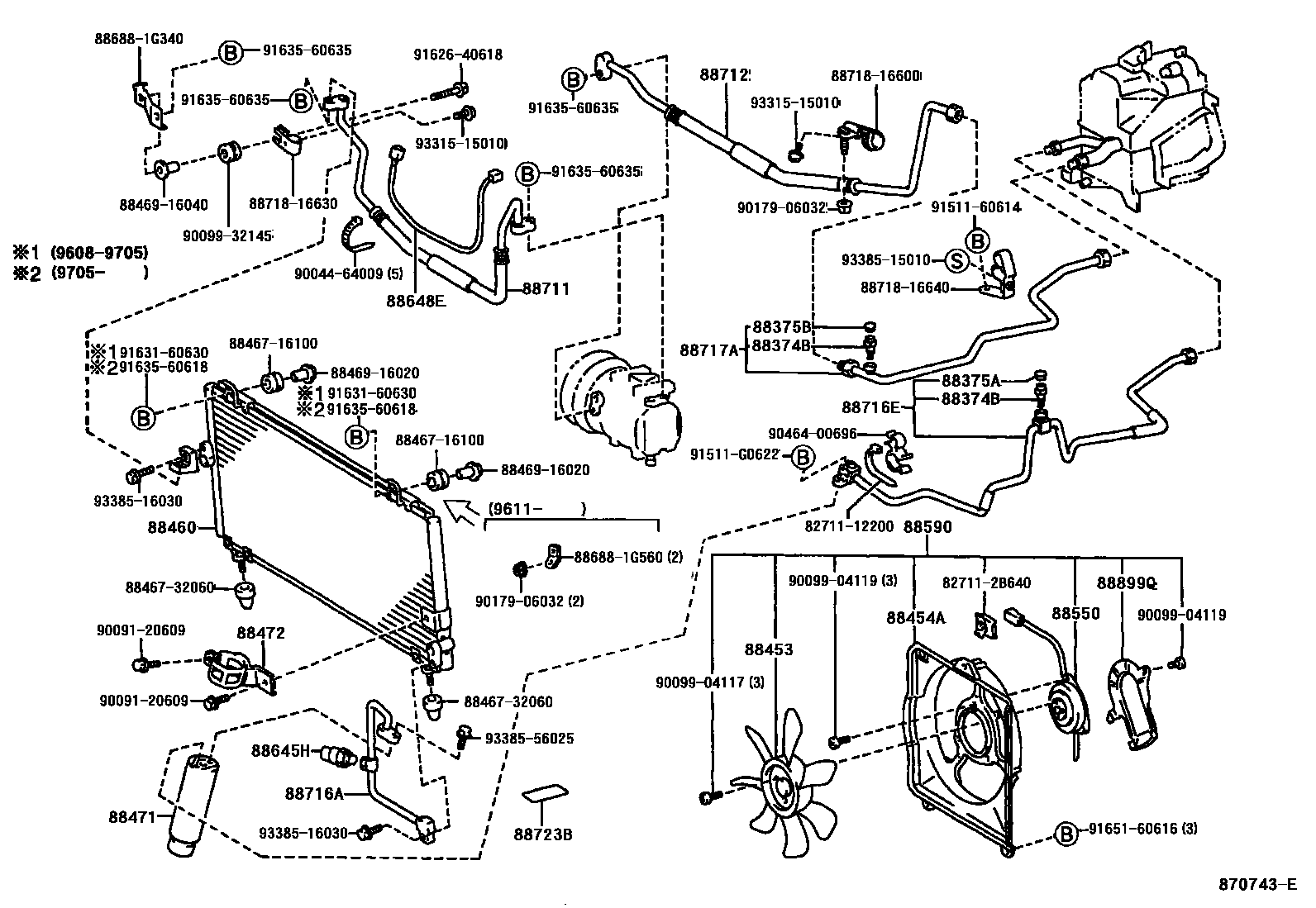

Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 9 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 |
| 88375A | Repair valve cover (for cooler tube) | 88375-30280 |
| 88375B | No. 1 maintenance valve cover | 88375-30290 |
| 88453 | Cooling fan (for condenser) | 88453-20080 |
| 88454A | fan cover | 88454-16140 |
| 88460 | Air conditioning condenser assembly | 88460-16330 · 88460-16350 · 88460-16420 · 88460-16421 · 88460-16480 · 88460-16560 |
| 88471 | Air conditioning fluid storage tank | 88471-20050 |
| 88472 | No. 1 liquid storage tank bracket | 88472-16130 · 88472-16150 |
| 88474 | cooler dryer | 88474-47010 |
| 88479 | Air conditioning Freon gas (cooler refrigerant drum) | 90986-02007 · 90986-02008 |
| 88550 | Blower motor assembly (for condenser) | 16363-74180 |
| 88590 | Blower assembly with hood | 88590-16070 |
| 88645H | No. 1 pressure switch | 88645-20050 |
| 88648E | Cooler wiring harness | 88648-16220 · 88648-16240 · 88648-16280 · 88648-16320 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-16260 · 88711-16261 · 88711-16321 · 88711-16330 · 88711-16370 · 88711-16400 · 88711-16430 · 88711-16460 · 88711-16490 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-16390 · 88712-16400 · 88712-16430 · 88712-16490 · 88712-16520 · 88712-16530 · 88712-16590 · 88712-16600 |
| 88716A | Cooler refrigerant liquid pipe A | 88716-1G030 · 88716-1G050 · 88716-1G410 |
| 88716B | Cooler refrigerant liquid pipe B | 88716-1G090 · 88716-1G091 · 88716-1G110 |
| 88716E | Cooler refrigerant liquid pipe E | 88716-16880 · 88716-16881 · 88716-1G080 · 88716-1G100 |
| 88717A | Cooler refrigerant suction pipe A | 88717-16230 · 88717-16240 |
| 88723B | Cooler maintenance warning label | 88723-16030 · 88723-20030 |
| 88899Q | Cover plate | 88899-16020 |
