Toyota COROLLA 暖风和空调系统 - 控制器和风管 — Figure 8715

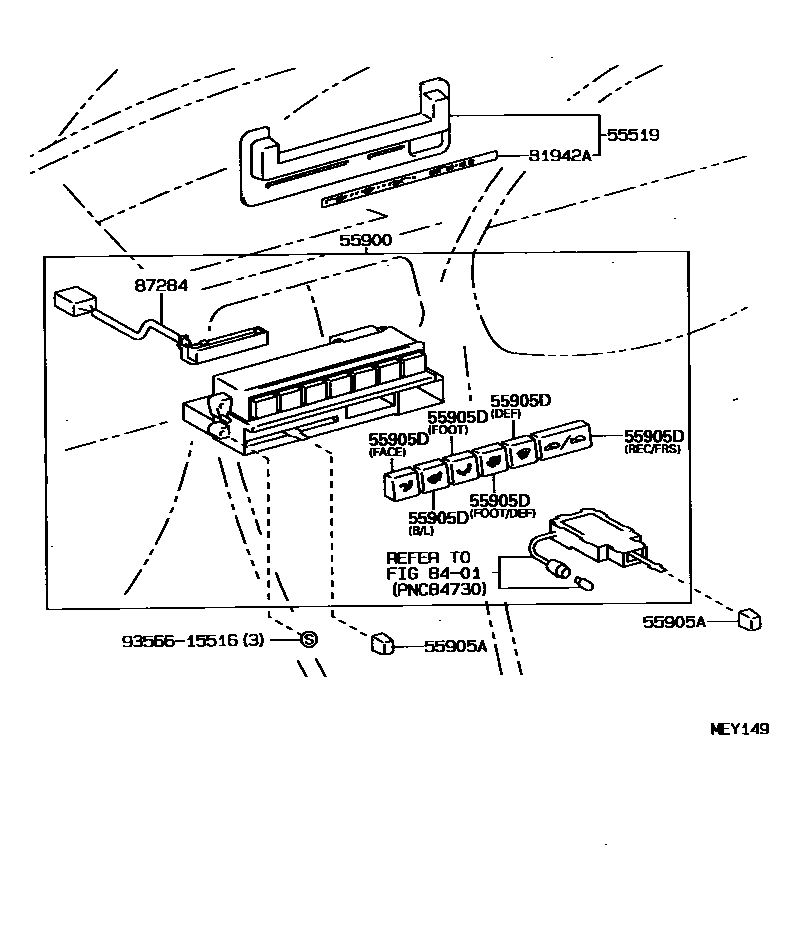

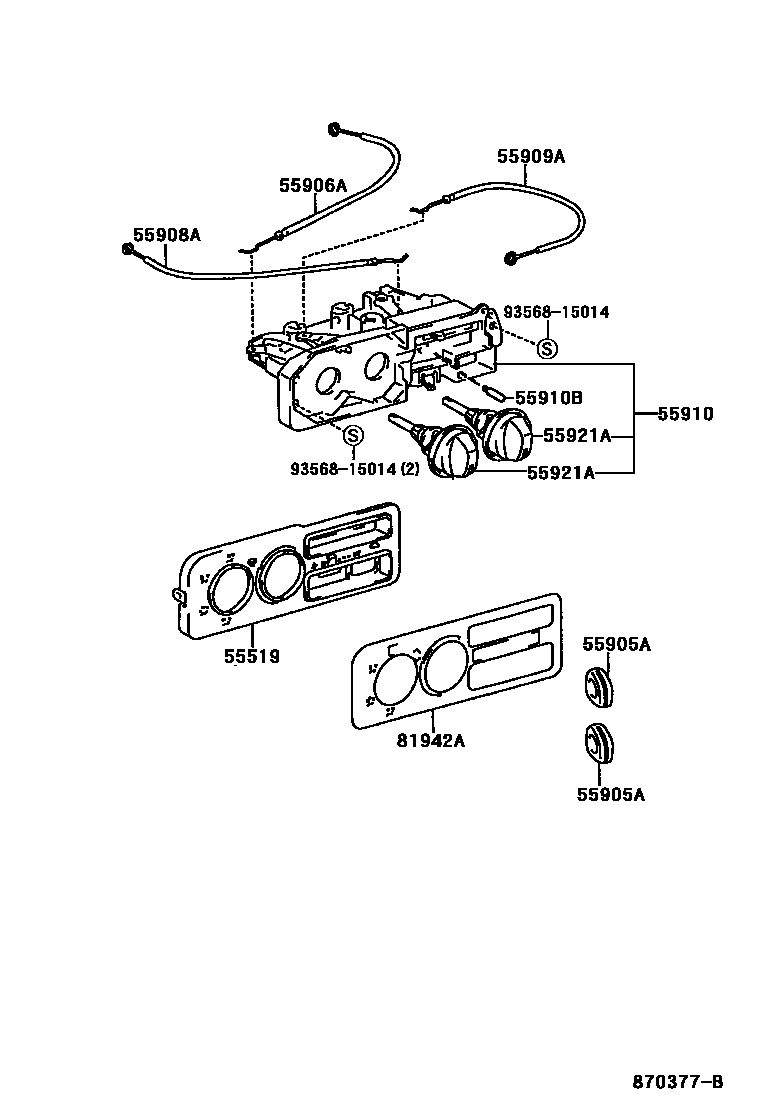

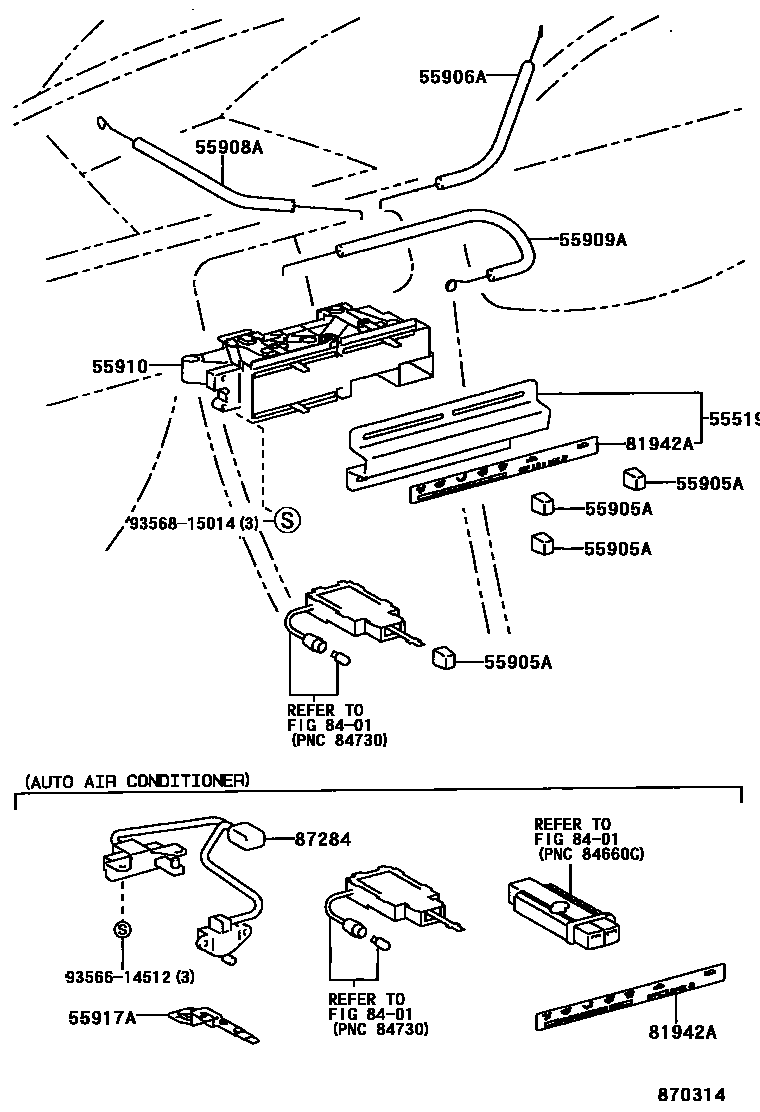

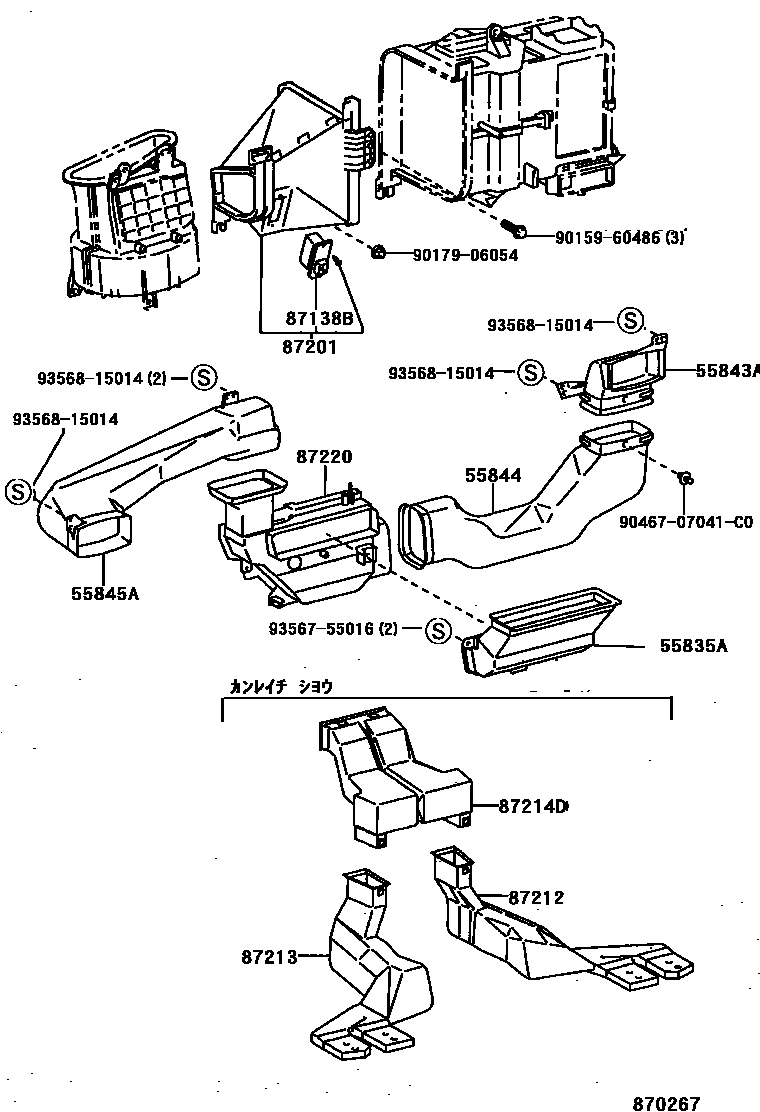

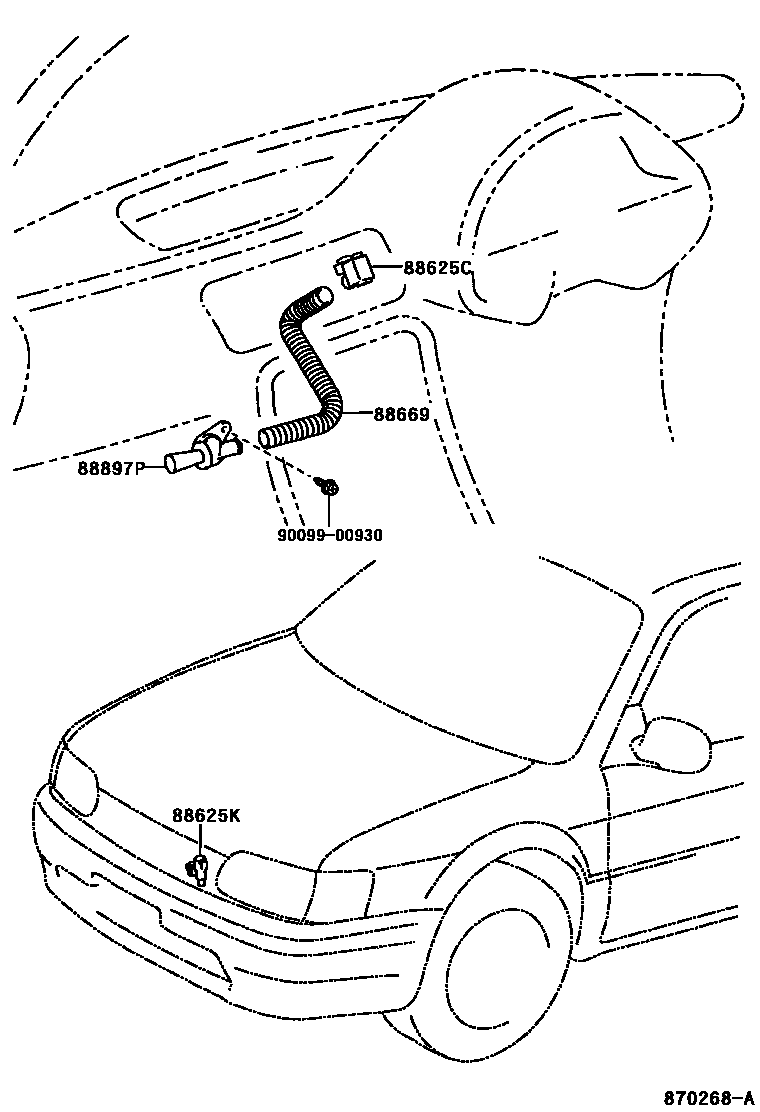

Toyota COROLLA EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 5 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55519 | Heater controller nameplate | 55519-16090 · 55519-16100 · 55519-16110 · 55519-16220 · 55519-16230 |
| 55835A | Central air duct from heater to air register | 55835-16060 · 55835-16080 |
| 55843A | Air duct No. 1 from heater to air register | 55843-16110 |
| 55844 | Air duct No. 2 from heater to air regulator | 55844-16090 |
| 55845A | Air duct No. 3 from heater to air regulator | 55845-16090 · 55845-16110 |
| 55900 | Air conditioning control assembly | 55900-16270 |
| 55905A | Heater control button | 55905-89115 |
| 55905D | Control button sub-assembly | 55905-16090 · 55905-16100 · 55905-16110 · 55905-16120 · 55905-16130 · 55905-16140 |
| 55906A | Defroster damper control cable sub-assembly | 55906-16090 · 55906-16120 |
| 55908A | Intake air valve control cable sub-assembly | 55908-16100 · 55908-16120 |
| 55909A | Air mix damper control cable sub-assembly | 55909-16100 · 55909-16130 |
| 55910 | Heater or auxiliary ventilation control assembly | 55910-16200 · 55910-16270 · 55910-16310 |
| 55910B | heater control light bulb | 90981-11014 |
| 55917A | Temperature damper control lever | 55917-16070 |
| 55921A | Heater Controller Fixing | 55921-10040 · 55921-16010 |
| 81942A | Heater No. 1 control nameplate | 81942-16200 · 81942-16220 · 81942-16250 · 81942-16260 · 81942-16261 · 81942-16310 |
| 87138B | Heater Blower Resistor | 87138-16140 |
| 87201 | No. 1 air duct sub-assembly | 87201-16140 |
| 87212 | No. 1 rear air duct | 87212-16060 |
| 87213 | No. 2 rear air duct | 87213-16060 |
| 87214D | No. 3 rear air duct | 87215-16020 |
| 87220 | Air duct assembly | 87220-16030 · 87220-16050 · 87220-16051 |
| 87284 | Variable resistor sub-assembly | 88032-16100 · 88032-16110 |
| 88625C | Cooler thermistor | 88625-20490 · 88625-33010 |
| 88625K | Cooler thermistor | 88625-16200 |
| 88669 | Cooler air hose | 88669-16060 |
| 88897P | aspirator | 88897-22100 |
