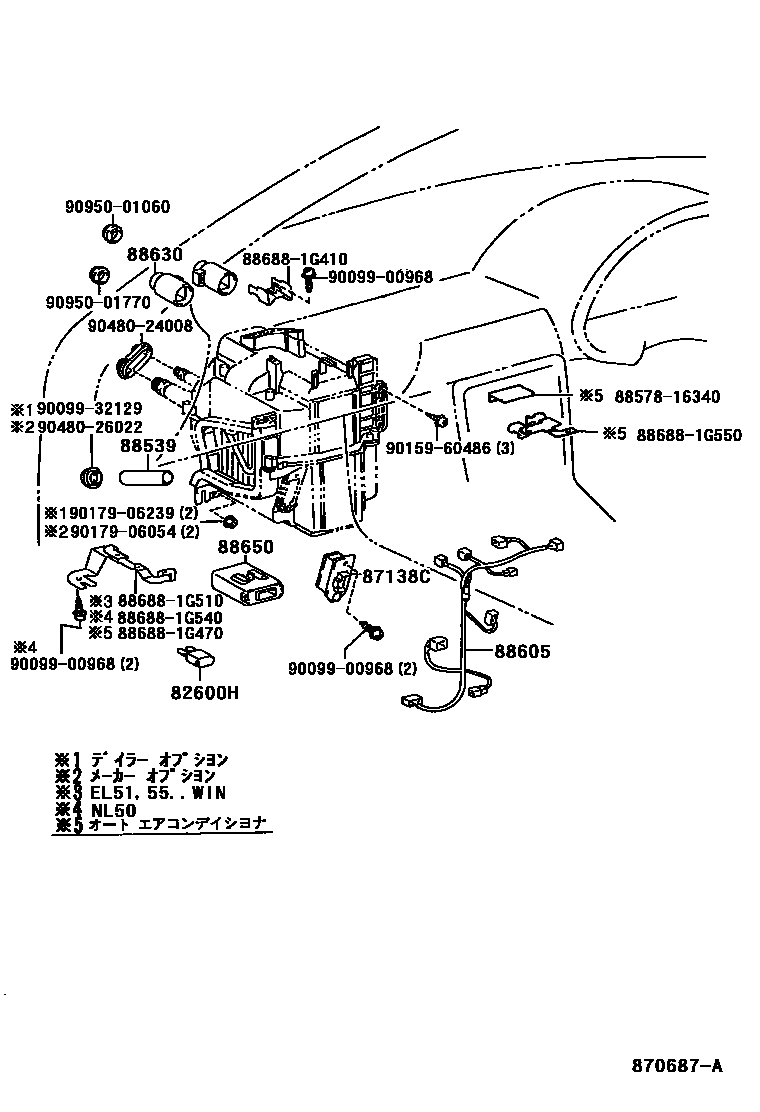

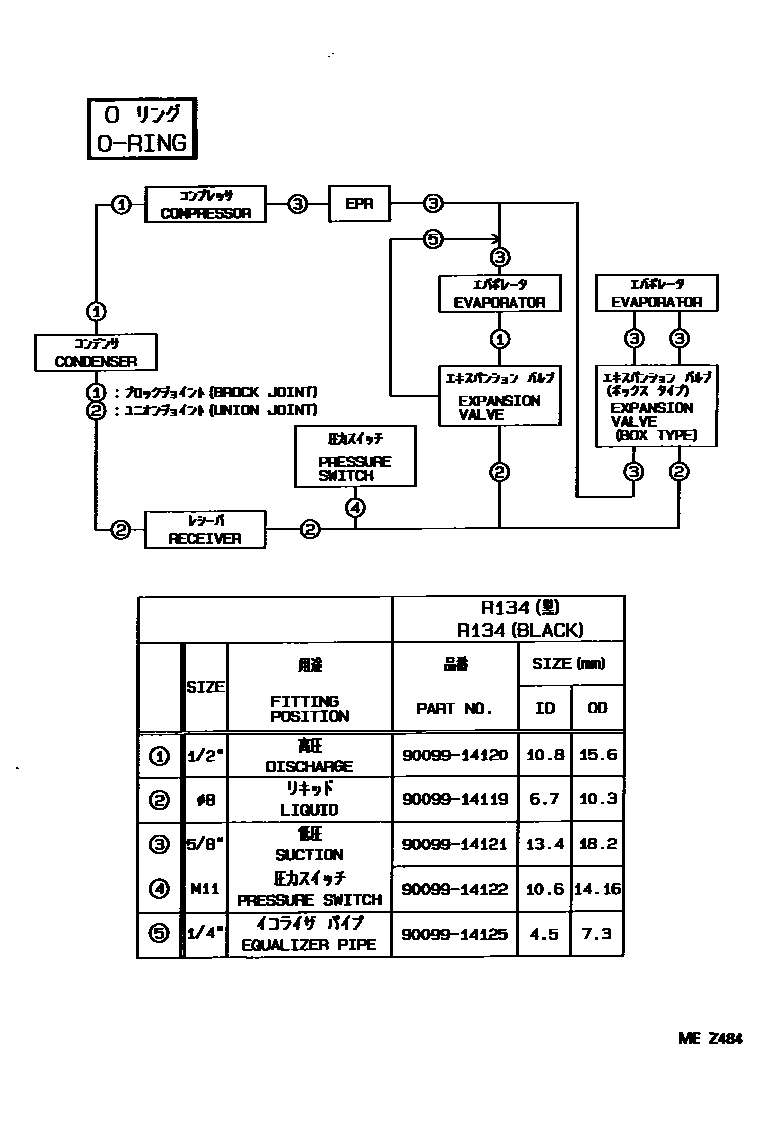

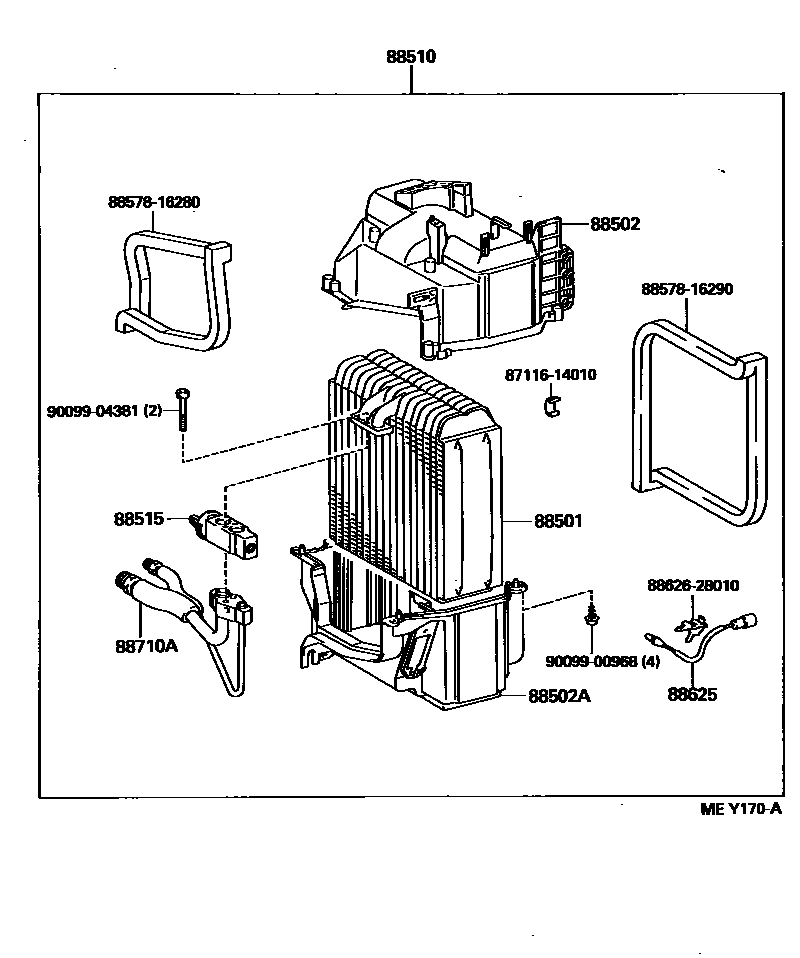

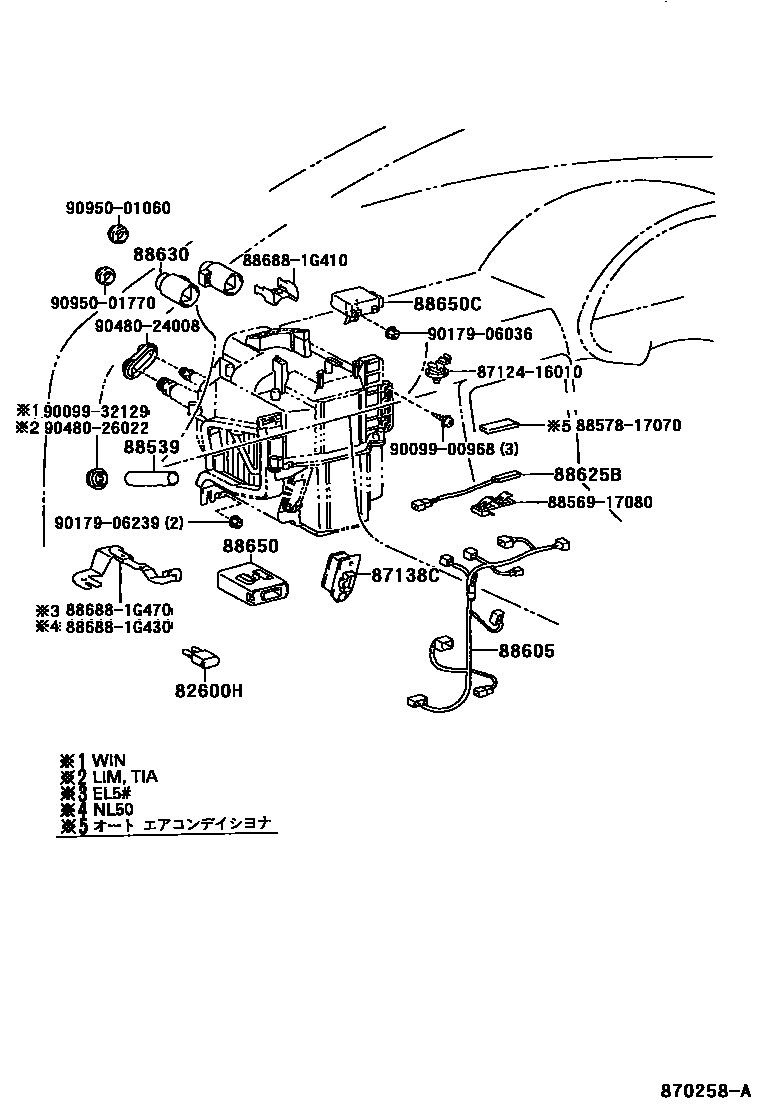

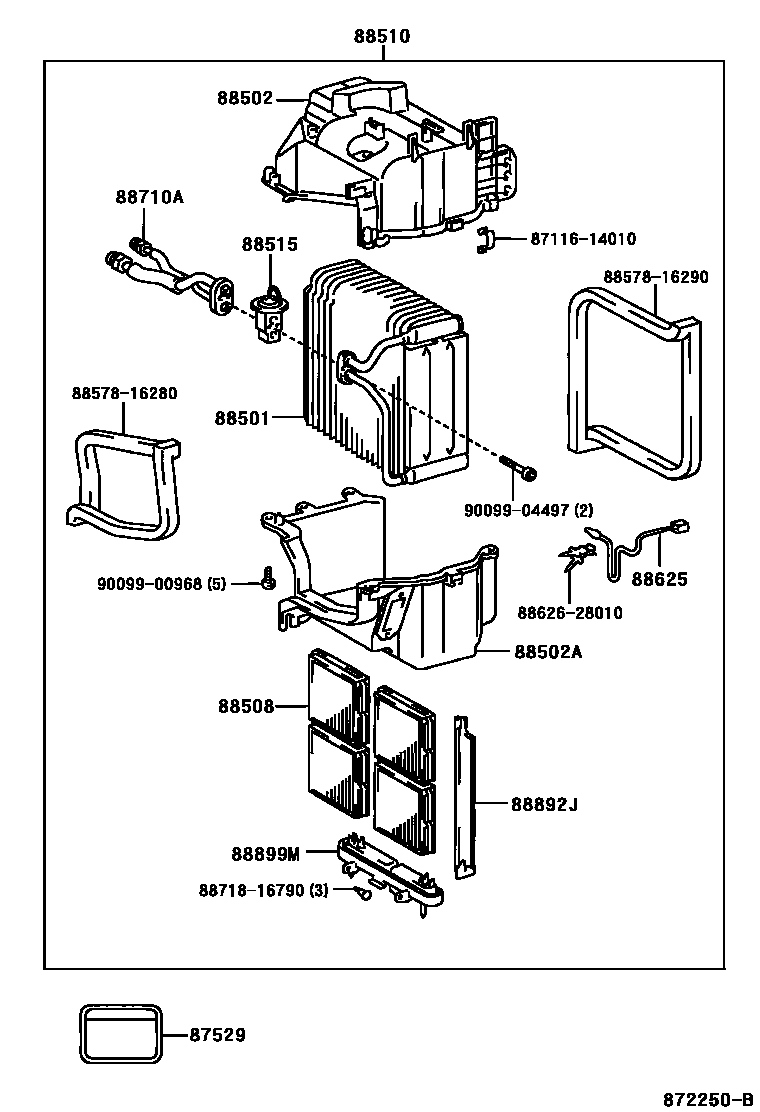

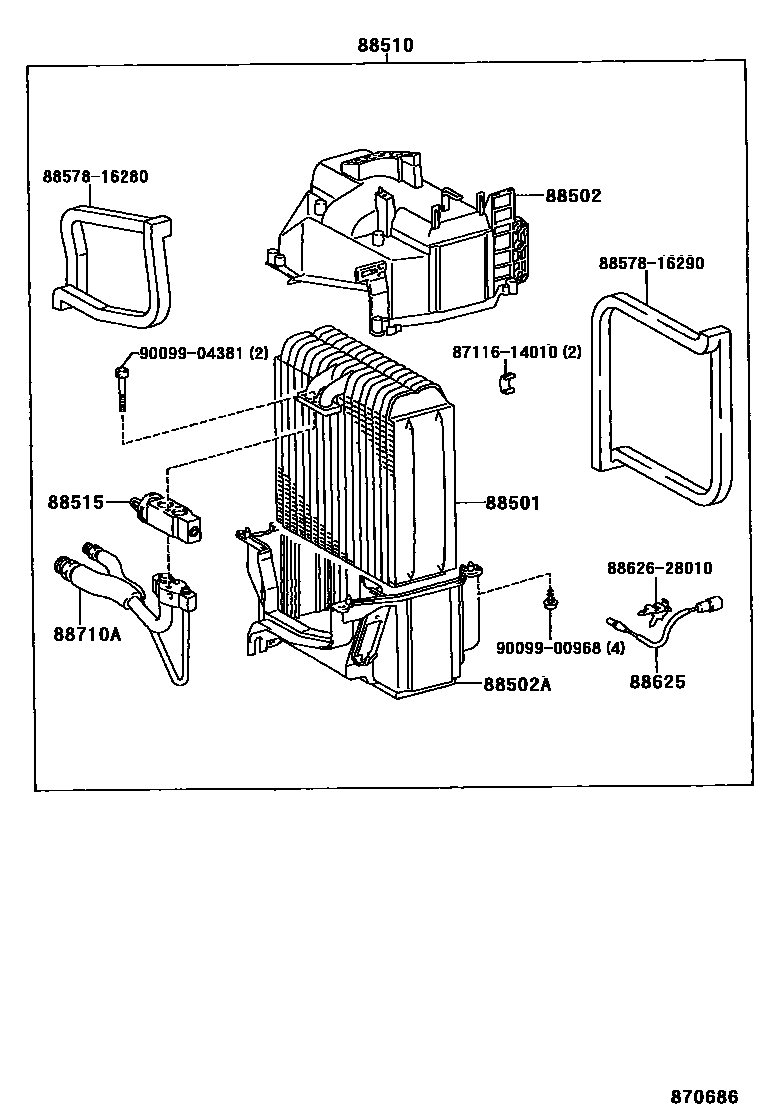

Toyota COROLLA 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota COROLLA EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 6 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82600H | Spare fuse | 90982-09009 |
| 87138C | Blower resistor | 87138-16140 · 87138-16150 |
| 87529 | Air filter warning nameplate | 87529-50020 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-10140 · 88501-16130 · 88501-16131 · 88501-16160 |
| 88502 | Cooling device shell sub-assembly | 88502-16170 · 88521-16010 |
| 88502A | Cooling device shell sub-assembly | 88502-16180 · 88502-16240 |
| 88508 | Air purification filter sub-assembly | 88508-16010 |
| 88510 | Cooler device assembly | 88510-16650 · 88510-1G040 · 88510-1G090 |
| 88515 | Cooler expansion valve | 88515-16050 · 88515-16060 · 88515-20100 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-16040 |
| 88605 | No. 1 cooler wiring harness sub-assembly | 88605-1G870 · 88605-1G880 · 88605-1S020 · 88605-1S030 · 88605-1S110 · 88605-1S120 · 88605-1S130 · 88605-1S260 · 88605-1S290 · 88605-1S300 · 88605-1S310 · 88605-1S330 · 88605-1S340 |
| 88625 | Cooler No. 1 Thermistor | 88625-12230 |
| 88625B | Cooler No. 3 thermistor | 88625-16180 |
| 88630 | Cooler relay assembly | 88630-95702 |
| 88650 | Cooler stabilized amplifier assembly | 88650-10430 · 88650-10470 · 88650-16570 · 88650-16580 · 88650-16620 · 88650-16680 · 88650-16700 |
| 88650C | Air conditioning amplifier sub-assembly | 88650-16610 |
| 88710A | Air conditioning pipe assembly | 88710-16250 · 88710-16380 |
| 88892J | Air purification filter cover sub-assembly | 88892-16160 |
| 88899M | cover (for air cleaner) | 88899-16040 |
