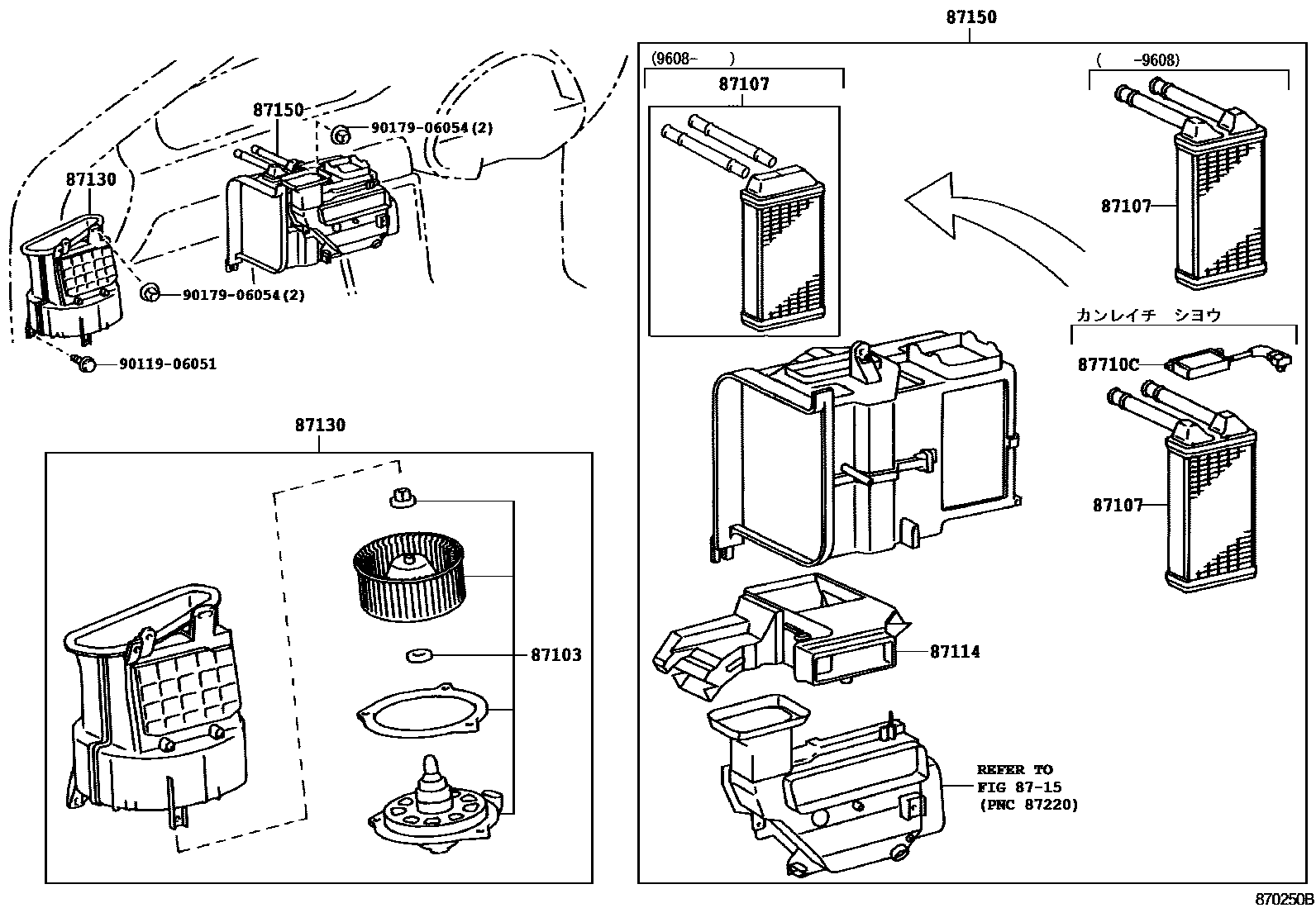

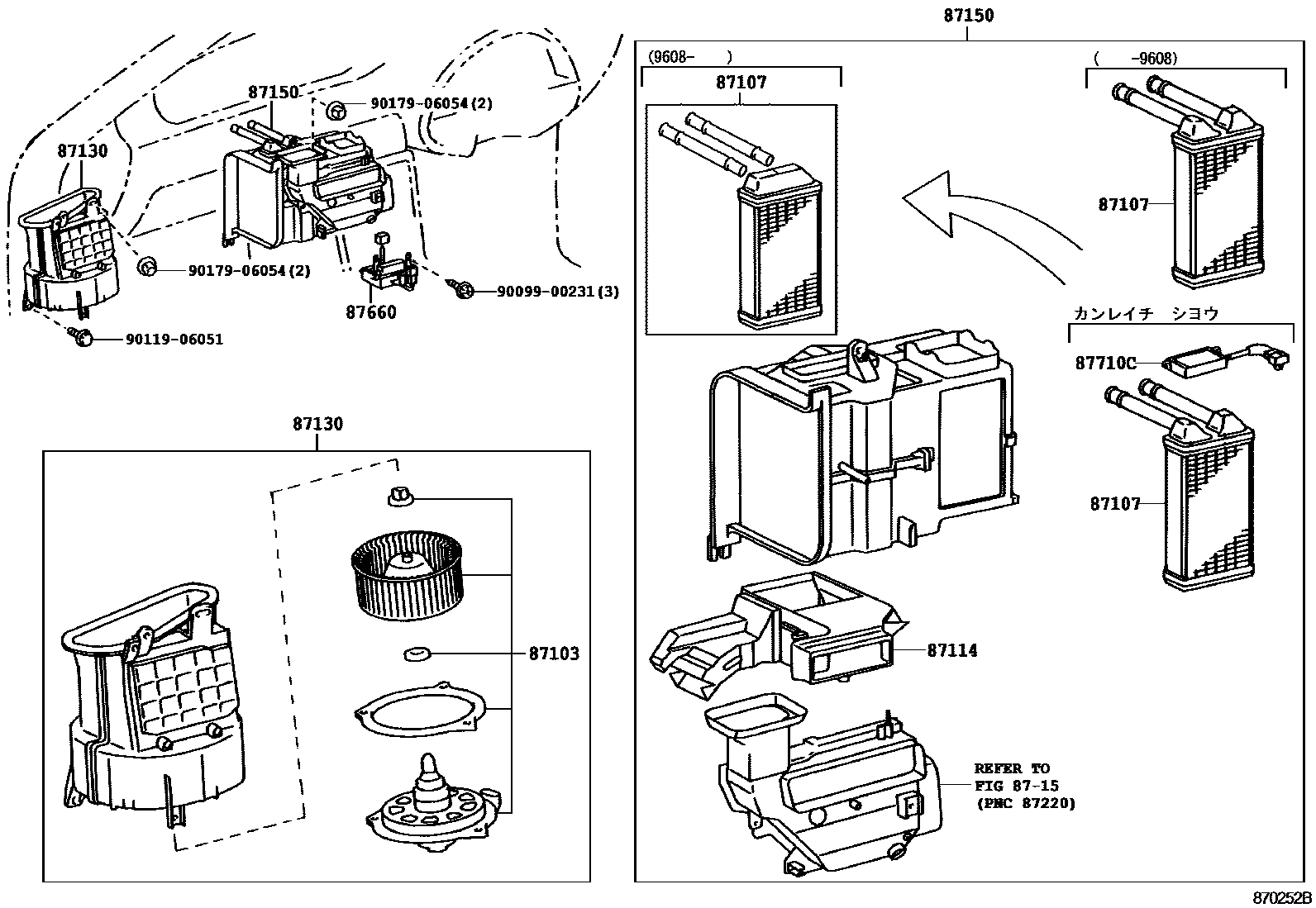

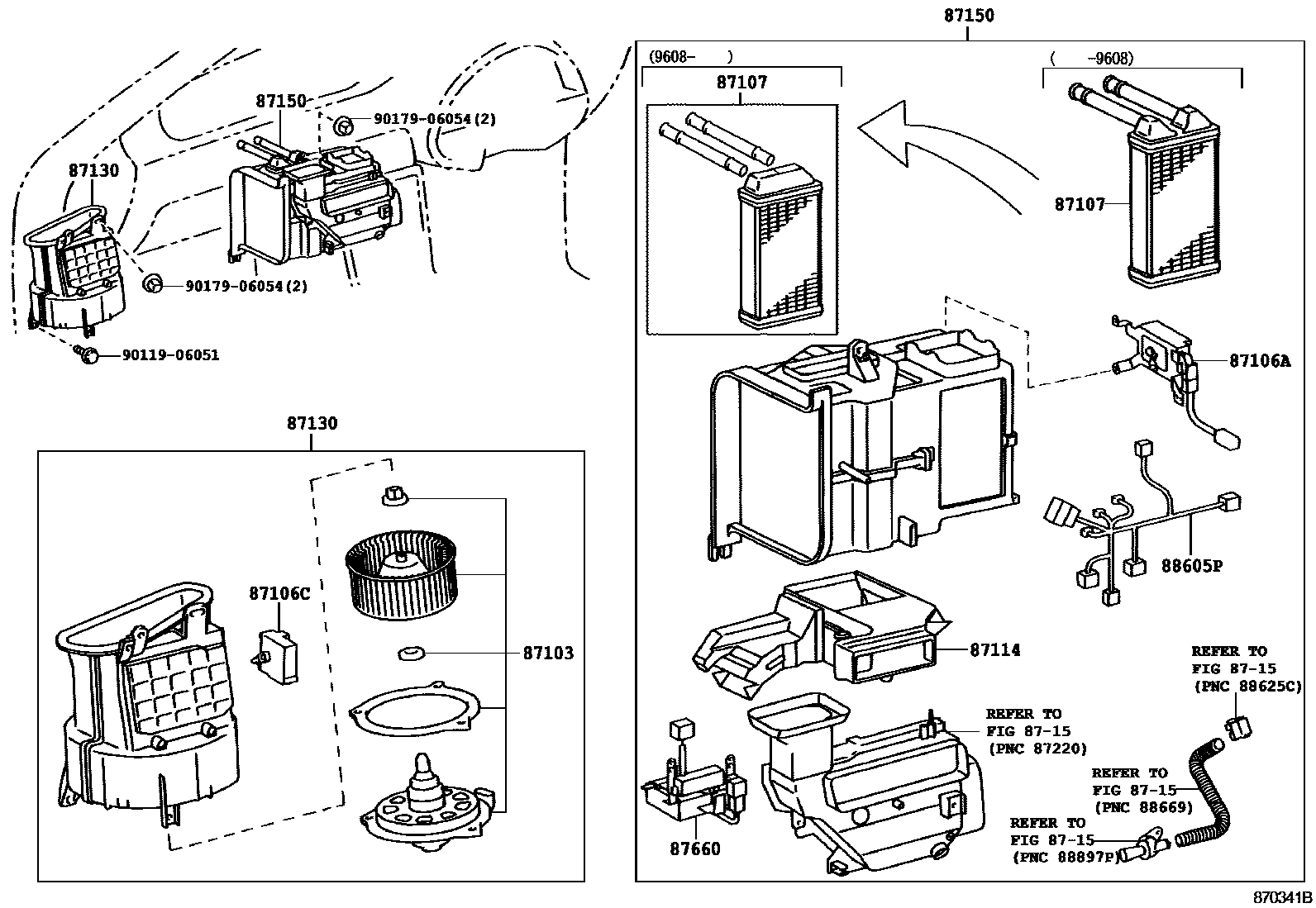

Toyota COROLLA 暖风和空调系统 - 加热装置和鼓风机 — Figure 8712
Toyota COROLLA EPC diagram 8712, 暖风和空调系统 - 加热装置和鼓风机, with 3 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87103 | Heater blower motor sub-assembly with fan | 87103-16030 |
| 87106A | Damper servo mechanism sub-assembly | 87106-16050 |
| 87106C | Damper servo mechanism sub-assembly (for blower) | 87106-16060 |
| 87107 | Heater radiator device sub-assembly | 87107-10340 · 87107-16220 · 87107-16230 · 87107-16240 · 87107-16270 · 87107-42050 · 87107-42060 |
| 87114 | heater cover | 87114-16050 · 87114-16060 |
| 87130 | Front heater blower assembly | 87130-16170 · 87130-16180 |
| 87150 | Heater radiator assembly | 87150-16460 · 87150-16461 · 87150-16470 · 87150-16471 · 87150-16480 · 87150-16481 · 87150-16490 · 87150-16491 · 87150-16530 · 87150-16531 · 87150-16540 · 87150-16541 · 87150-16550 · 87150-16551 |
| 87660 | Air conditioning servo mechanism assembly | 88660-16050 |
| 87710C | Rapid heater assembly | 87710-10020 |
| 88605P | Air conditioning wiring harness sub-assembly | 88605-1S100 |
