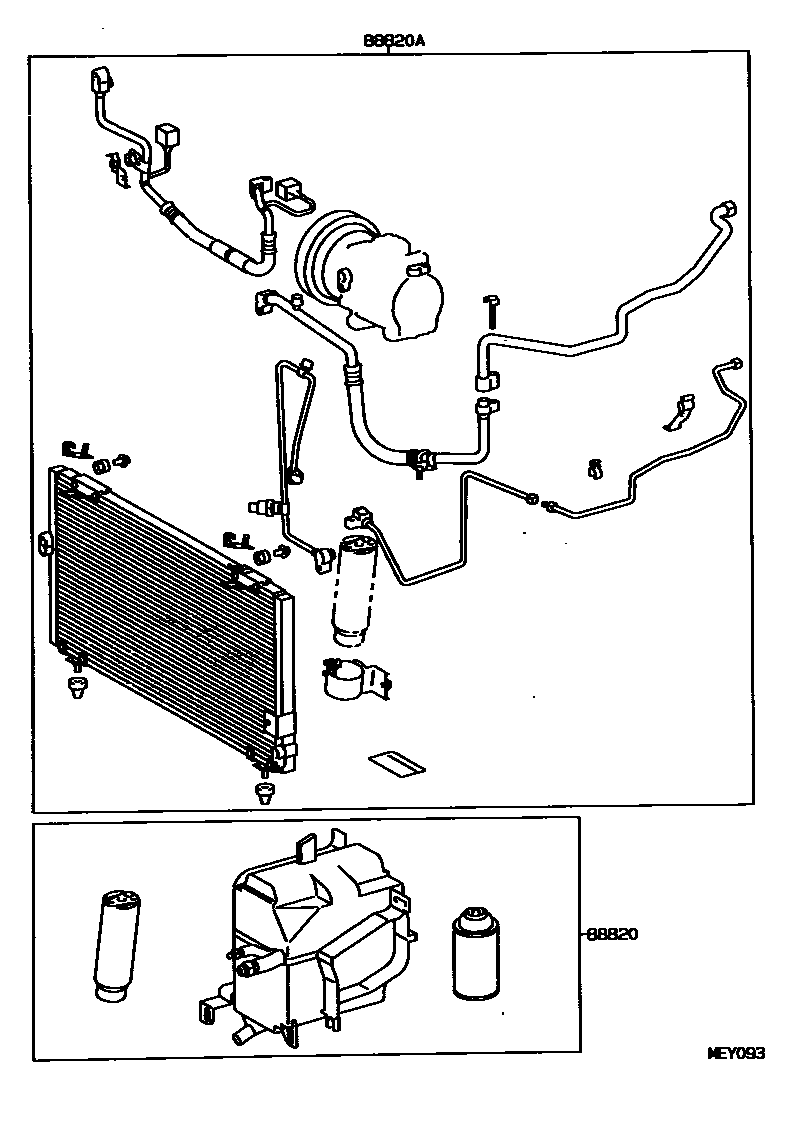

Toyota COROLLA 暖风和空调系统 - 组件 — Figure 8711
Toyota COROLLA EPC diagram 8711, 暖风和空调系统 - 组件, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88820 | No. 1 air conditioner and accessories sub-assembly | 88820-16070 · 88820-16090 · 88820-16100 |
| 88820A | No. 2 air conditioner and accessories sub-assembly | 88830-1G370 · 88830-1G380 · 88830-1G390 · 88830-1G430 · 88830-1G440 · 88830-1G450 · 88830-1G460 · 88830-1G470 · 88830-1G480 · 88830-1G490 · 88830-1G500 · 88830-1G510 · 88830-1G520 · 88830-1G530 · 88830-1G540 · 88830-1G580 · 88830-1G590 · 88830-1G620 · 88830-1G630 · 88830-1G640 · 88830-1G650 · 88830-1G660 · 88830-1G670 · 88830-1G680 · 88830-1G690 · 88830-1G720 · 88830-1G730 · 88830-1G760 · 88830-1G770 · 88830-1G780 · 88830-1G790 · 88830-1G800 · 88830-1G810 · 88830-1G820 · 88830-1G830 |
