Toyota COROLLA 扬声器 — Figure 8602

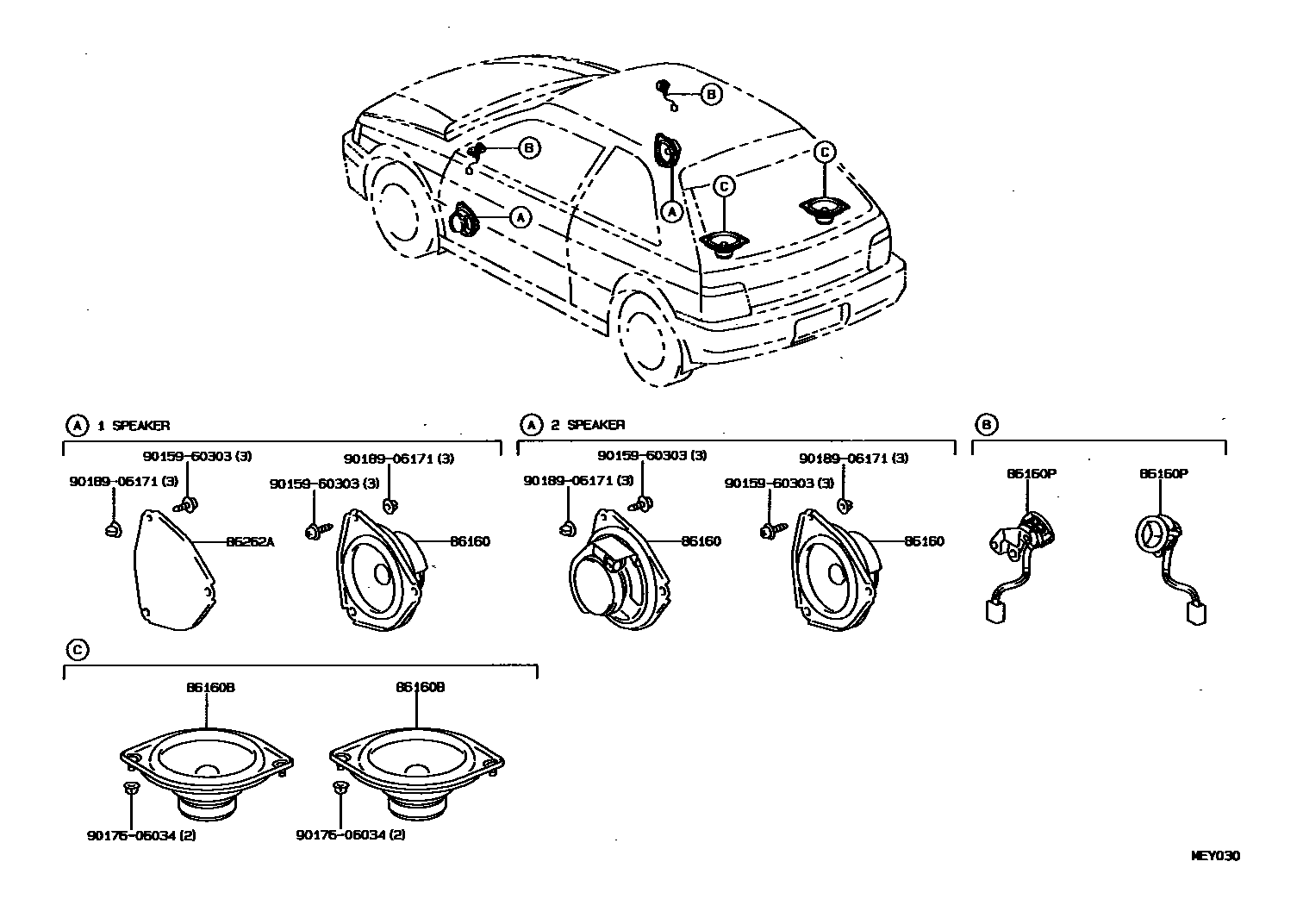

Toyota COROLLA EPC diagram 8602, 扬声器, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86160 | No. 1 front speaker assembly | 86160-16280 · 86160-16290 |
| 86160B | Rear speaker assembly | 86160-16490 |
| 86160P | No. 2 front speaker assembly | 86160-16310 · 86160-16320 |
| 86262A | front speaker cover | 86262-16010 · 86262-16030 |
