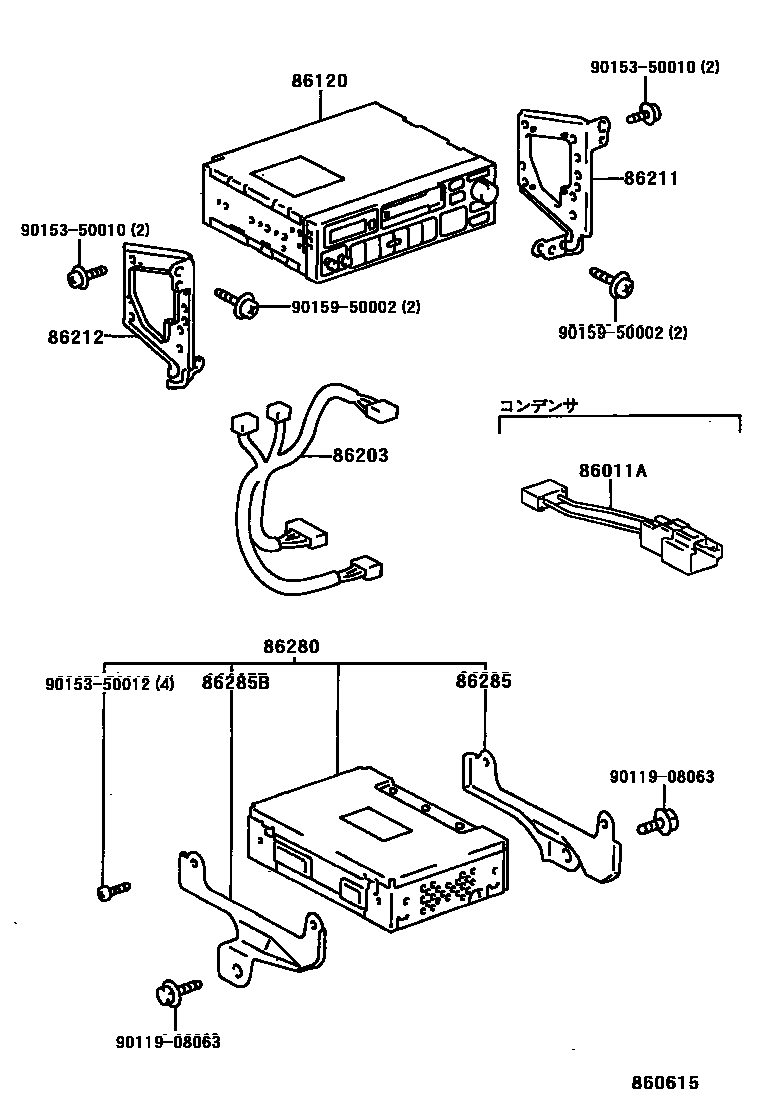

Toyota COROLLA 收音机、放大器和冷凝器 — Figure 8601
Toyota COROLLA EPC diagram 8601, 收音机、放大器和冷凝器, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86011A | radio settings phase modulator | 90980-04116 |
| 86120 | Radio assembly | 86120-10450 · 86120-16600 · 86120-27010 |
| 86203 | radio wiring harness | 86203-16150 |
| 86211 | No. 1 radio bracket | 86211-16260 |
| 86212 | No. 2 radio bracket | 86212-16260 |
| 86280 | Stereo parts amplifier assembly | 86280-16090 |
| 86285 | Amplifier Stand No. 1 | 86285-16010 |
| 86285B | Amplifier Stand No. 1 | 86285-16020 |
