Toyota COROLLA 后刮水器 — Figure 8502

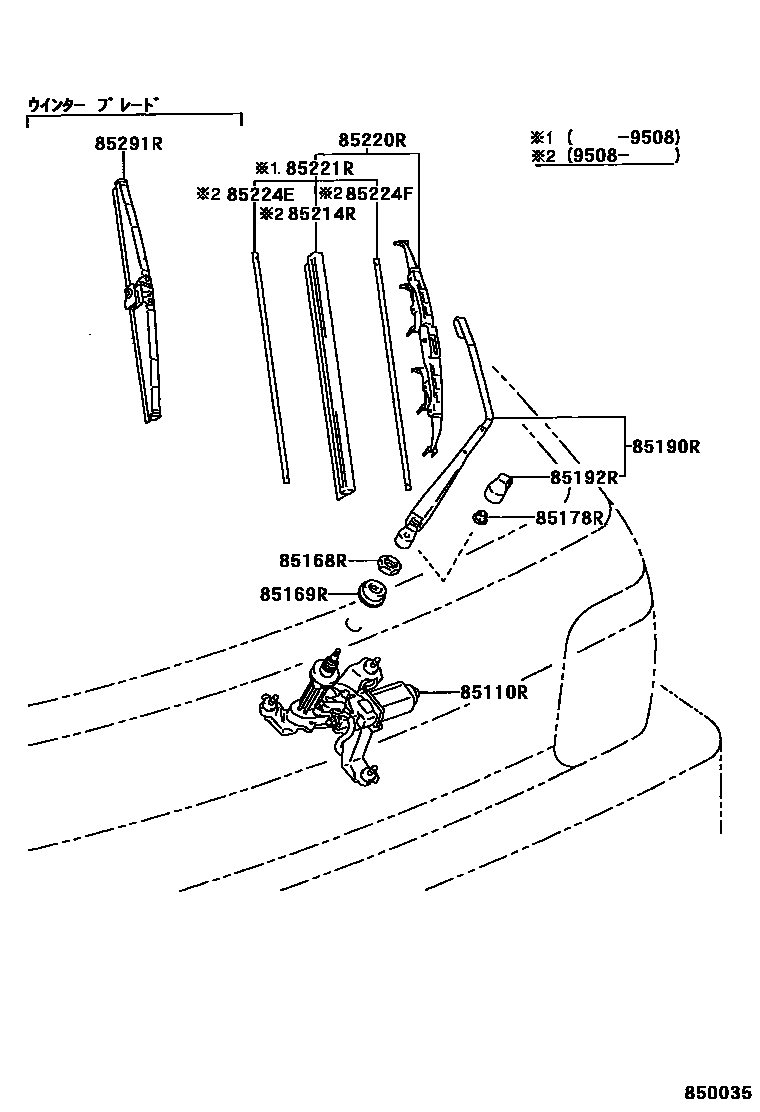

Toyota COROLLA EPC diagram 8502, 后刮水器, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110R | Rear wiper motor assembly | 85130-16410 |
| 85168R | No. 1 rear wiper link pivot nut | 90099-05157 |
| 85169R | No. 1 rear wiper link pivot washer | 85134-16400 |
| 85178R | Nut (for securing rear wiper arm) | 90179-06158 |
| 85190R | Rear wiper arm assembly | 85241-16040 |
| 85192R | Rear wiper arm cover | 85192-13060 |
| 85214R | Rear wiper rubber strip | 85214-16070 |
| 85220R | Rear wiper blade assembly | 85242-16030 |
| 85221R | Rear wiper blade | 85214-16070 |
| 85224E | No. 1 rear wiper rubber strip back plate | 85224-1G010 |
| 85224F | No. 2 rear wiper rubber strip back plate | 85224-1G010 |
| 85291R | Rear wiper blade for winter | 85291-16040 |
