Toyota COROLLA 电子燃油喷射系统 — Figure 8404

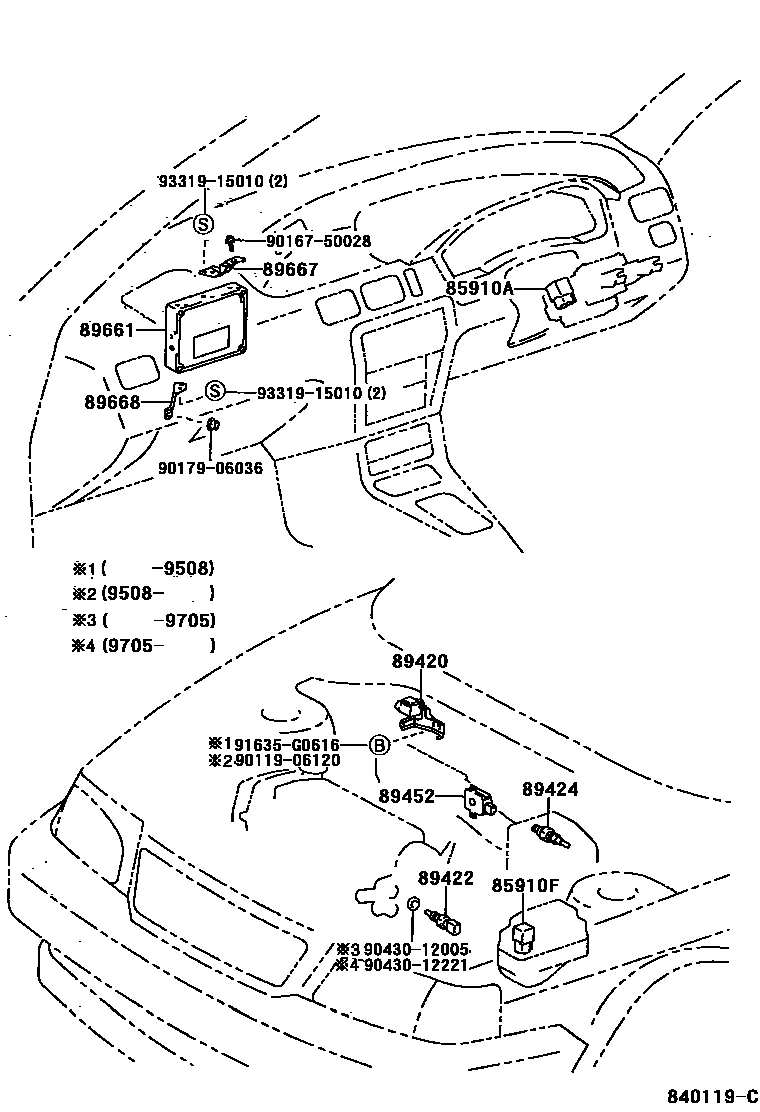

Toyota COROLLA EPC diagram 8404, 电子燃油喷射系统, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85910A | Circuit breaking relay assembly (for EFI) | 90987-02009 |
| 85910F | ECU relay (for EFI) | 90987-02009 |
| 89420 | Vacuum sensor assembly | 89420-16050 · 89420-16080 |
| 89422 | Water temperature sensor (for E.F.I.) | 89422-16010 · 89422-20010 · 89422-22030 |
| 89424 | Intake air temperature sensor (for E.F.I.) | 89424-12010 |
| 89452 | Throttle position sensor (for E.F.I.) | 89452-10040 · 89452-16020 · 89452-20130 |
| 89661 | Engine control ECU | 89661-16280 · 89661-16290 · 89661-16300 · 89661-16310 · 89661-16320 · 89661-16330 · 89661-16520 · 89661-16590 · 89661-16600 |
| 89667 | Engine control ECU bracket | 89667-16050 |
| 89668 | No. 2 engine control ECU bracket | 89668-16060 · 89668-16110 |
