Toyota COROLLA 车内灯 — Figure 8121

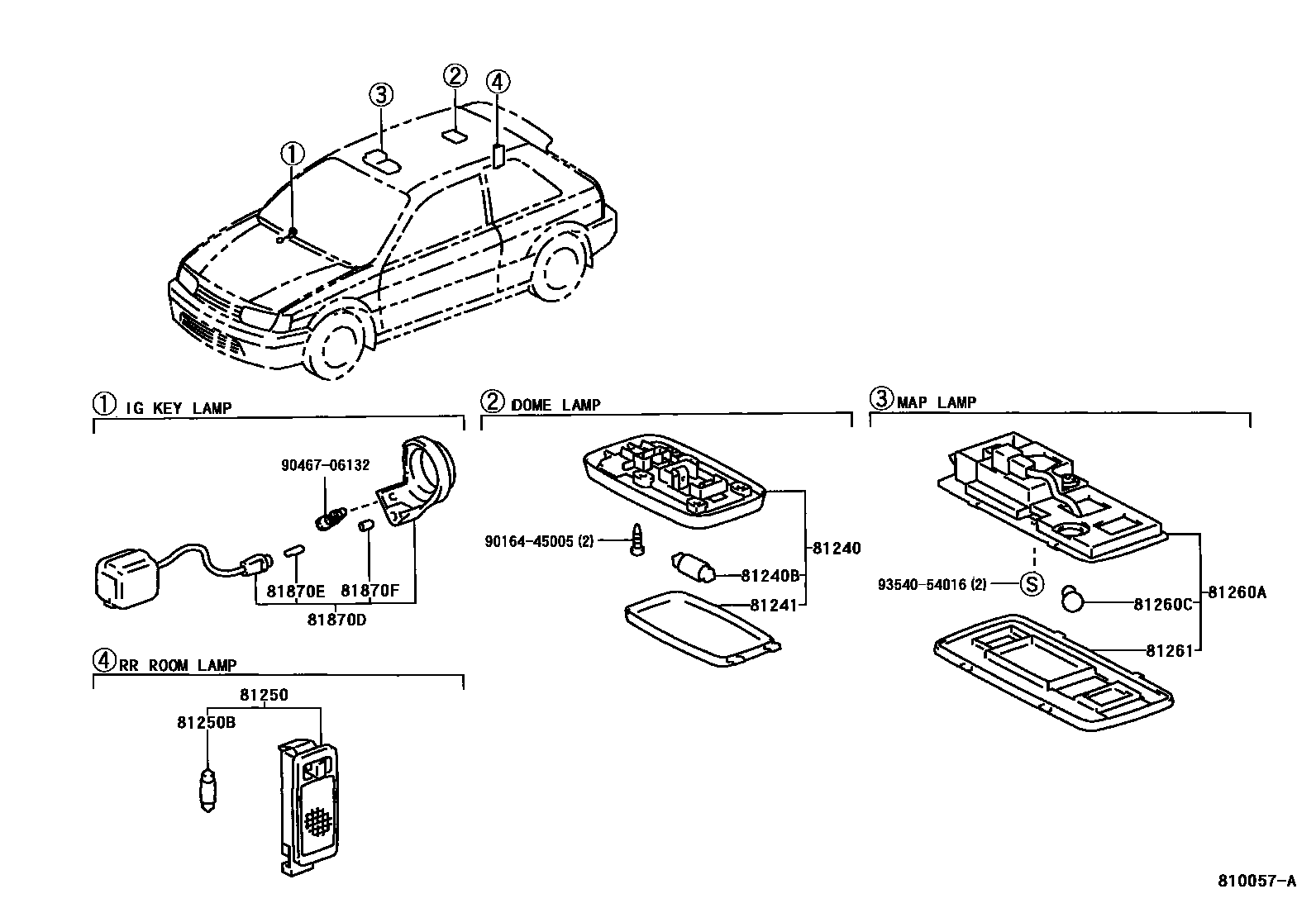

Toyota COROLLA EPC diagram 8121, 车内灯, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81240B | Interior light bulb No. 1 | 90981-14011 |
| 81241 | Interior light cover No. 1 | 81241-12020 |
| 81250 | No. 2 interior light assembly | 81250-16040 |
| 81250B | Interior light bulb No. 2 | 90981-11016 |
| 81260C | Light bulb (for reading lamp) | 90981-12014 |
| 81870D | Lock core lighting assembly | 81870-32051 |
| 81870E | Lock cylinder lighting bulb | 90981-11018 |
| 81870F | Lock cylinder lighting bulb cover | 84998-10070 |
