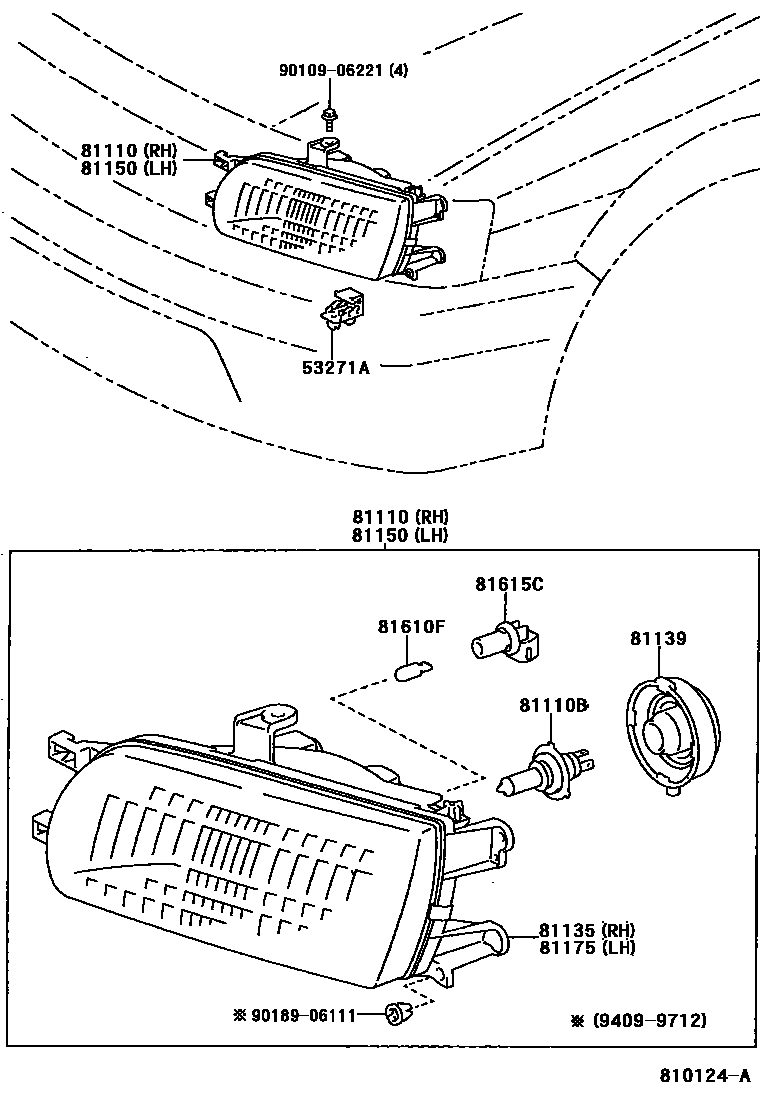

Toyota COROLLA Headlamp — Figure 8101
Toyota COROLLA EPC diagram 8101, Headlamp, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53271A | Headlight mounting bracket | 53271-12060 |
| 81110 | Right headlight assembly | 81110-16580 · 81110-16730 |
| 81110B | Bulb (for headlight No. 1) | 90981-13015 · 90981-22004 |
| 81135 | Right headlight assembly | 81130-16580 · 81130-16730 |
| 81139 | Headlight lamp holder cover | 90075-65001 |
| 81150 | Left headlight assembly | 81150-16580 · 81150-16730 |
| 81175 | Left headlight assembly | 81170-16580 · 81170-16730 |
| 81610F | Light bulb (for width indicator light) | 99132-12050 |
| 81615C | Width light lamp holder and wiring harness | 90075-60004 · 90075-99044 |
