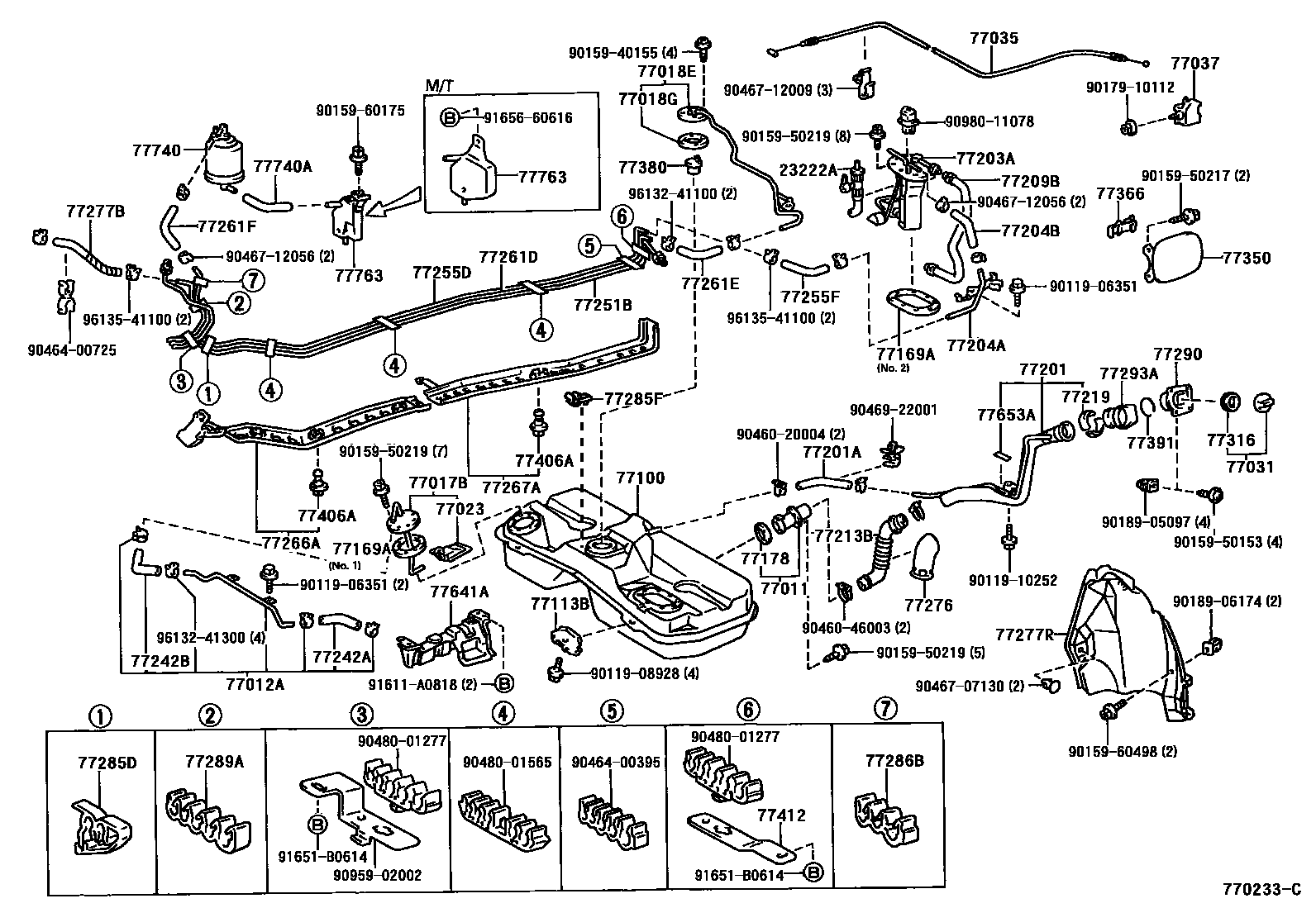

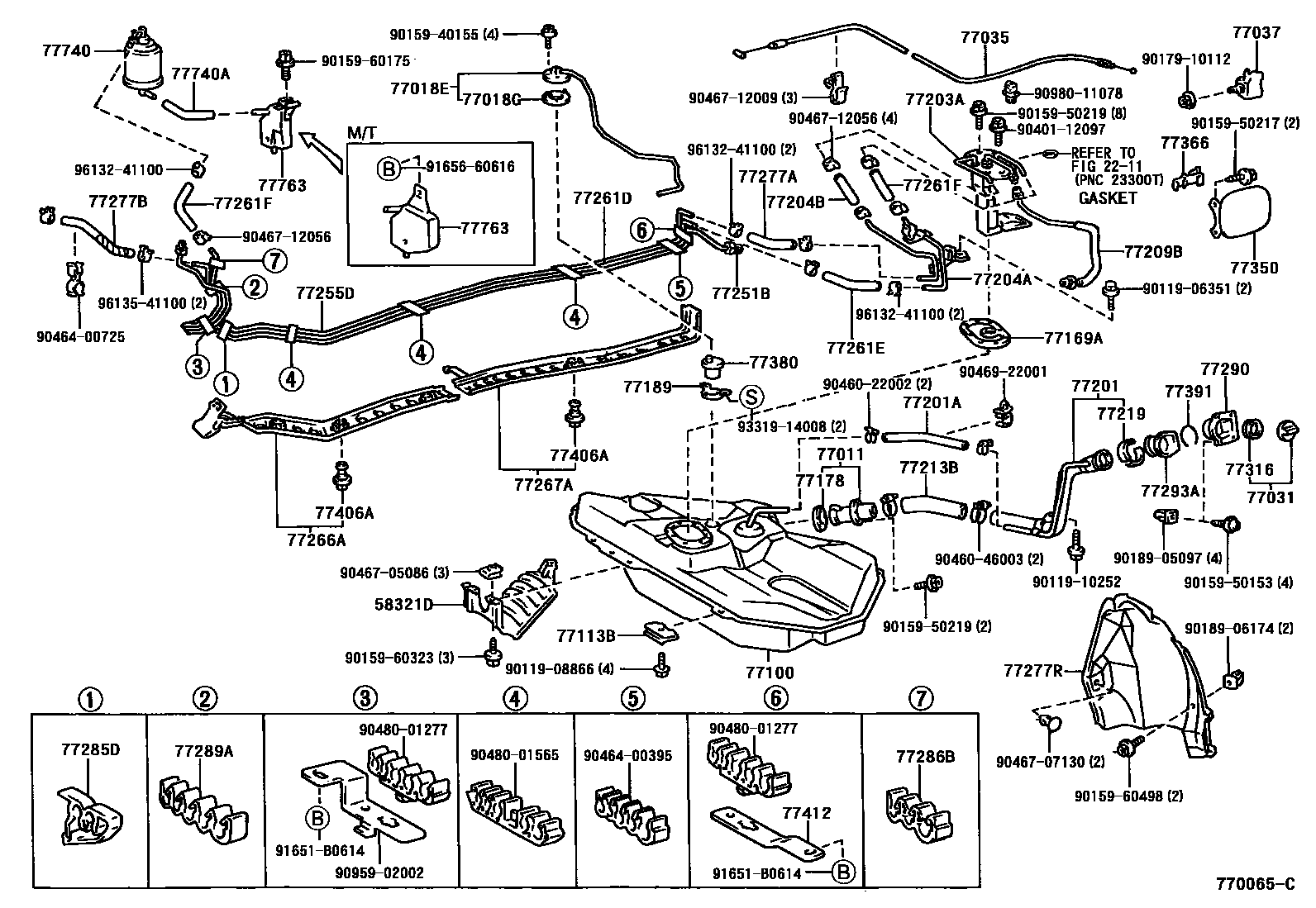

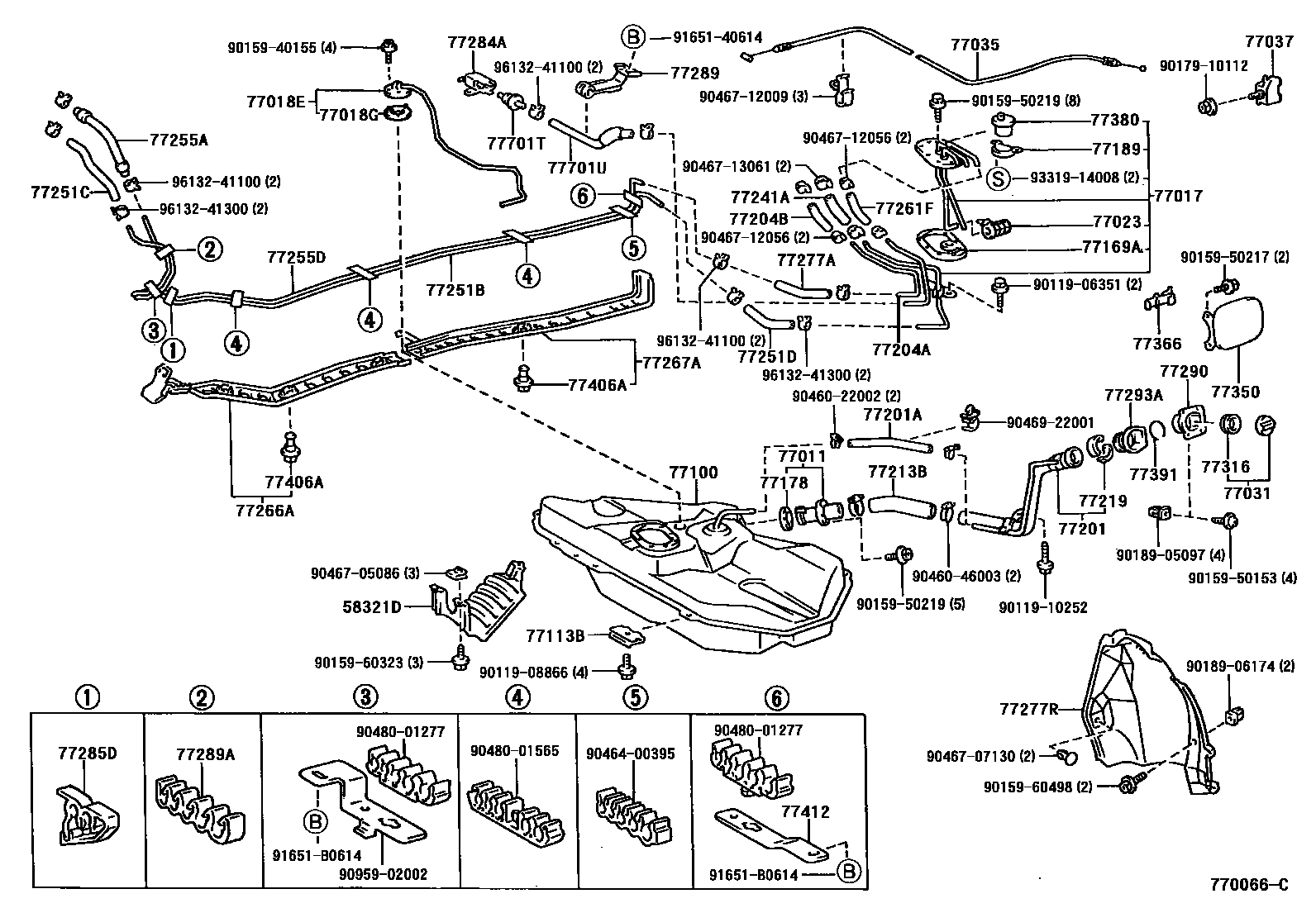

Toyota COROLLA 燃油箱和燃油管 — Figure 7701
Toyota COROLLA EPC diagram 7701, 燃油箱和燃油管, with 3 images and 61 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23222A | fuel return nozzle | 23222-11010 |
| 58321D | Rear Floor Insulating Mat No. 1 | 58321-10020 |
| 77011 | Filling pipe sub-assembly under fuel tank | 77011-10060 · 77011-16100 |
| 77012A | No. 1 fuel tank breather pipe sub-assembly | 77012-10040 · 77012-16010 |
| 77017 | Fuel and evaporative vent pipe sub-assembly | 77017-16150 · 77017-16170 |
| 77017B | Fuel tank vent pipe sub-assembly | 77017-10210 |
| 77018E | Fuel tank evaporation vent pipe sub-assembly | 77018-10010 · 77018-16060 · 77018-16070 |
| 77018G | Fuel tank evaporation/vent pipe gasket | 77179-26010 |
| 77023 | Fuel suction pipe filter sub-assembly | 77023-16020 · 77023-32010 |
| 77031 | Fuel tank cap assembly | 77310-12150 · 77310-16011 · 77310-32011 · 77310-48010 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-16210 |
| 77037 | Fuel filler cap lock sub-assembly | 77037-16040 |
| 77100 | fuel tank assembly | 77001-10340 · 77001-16220 · 77001-16250 · 77001-16300 |
| 77113B | fuel tank side panel | 77113-10020 · 77113-10030 · 77113-10040 |
| 77169A | Fuel suction pipe fixed gasket | 77169-14010 · 77169-16030 · 77169-20050 · 77169-60010 |
| 77178 | Fuel tank filler pipe lower gasket | 77178-20030 |
| 77189 | Fuel check valve fixing piece | 77189-18010 |
| 77201 | Fuel tank inlet pipe sub-assembly | 77201-16151 · 77201-16161 · 77201-16181 |
| 77201A | No. 1 fuel hose (for fuel tank inlet pipe) | 95311-11024 · 95311-13028 |
| 77203A | Fuel suction pipe sub-assembly | 23206-11160 · 23206-11180 · 23206-11440 · 23206-11460 · 77203-16040 · 77203-16050 · 77203-16070 |
| 77204A | fuel tank return pipe | 23204-11140 · 23204-11180 · 77204-16010 · 77204-16020 · 77204-16040 |
| 77204B | Fuel hose (for fuel return) | 95333-06010 · 95333-06020 · 95334-06010 · 95334-06012 |
| 77209B | Fuel pump pipe sub-assembly | 23091-11040 · 23091-11090 · 23091-11100 · 77209-16020 · 77209-16060 · 77209-16070 |
| 77213B | Fuel tank to filler pipe hose | 77213-10080 · 77213-16080 |
| 77219 | Fuel tank filler pipe cap | 77219-32030 |
| 77242A | No. 1 fuel hose (for No. 2 main pipe) | 95333-08011 |
| 77251B | main fuel pipe | 77251-16170 · 77251-16220 · 77251-16260 |
| 77251D | No. 2 fuel hose (for main fuel line) | 77259-10040 |
| 77255A | No. 1 fuel hose (for No. 2 drain pipe) | 23273-55020 |
| 77255D | fuel return pipe | 77255-16140 · 77255-16160 · 77255-16210 |
| 77255F | No. 2 fuel hose (for fuel return pipe) | 77279-10060 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-16130 · 77261-16160 · 77261-16190 · 77261-16200 |
| 77261E | No. 1 fuel hose (for fuel tank to canister pipe) | 77419-10010 · 77419-10030 |
| 77261F | No. 2 fuel hose (for fuel tank to canister pipe) | 77249-10050 · 77249-10070 |
| 77266A | No. 1 fuel line protection device | 77266-10030 |
| 77267A | No. 2 fuel pipe protection device | 77267-16020 |
| 77276 | Fuel hose protector | 77276-10040 |
| 77277B | No. 2 fuel hose (for No. 1 return pipe) | 23271-11240 · 23271-11241 |
| 77277R | Fuel tank filler pipe protection device | 77277-16120 |
| 77284A | No. 3 fuel pipe protection device | 77284-32020 |
| 77285D | No. 1 fuel pipe clamp | 77285-10010 |
| 77285F | No. 1 fuel pipe clamp | 77285-16100 |
| 77286B | No. 2 fuel pipe clamp with retaining ring | 77286-10020 |
| 77289 | Fuel tank pipe holder | 77289-10011 |
| 77289A | No. 3 fuel pipe clamp with retaining ring | 77289-10030 |
| 77290 | Fuel tank filler pipe cover assembly | 77290-16120 |
| 77293A | No. 3 fuel tank filler pipe cover | 77293-16110 |
| 77316 | fuel tank cap gasket | 77316-16010 |
| 77350 | Fuel filler cap assembly | 77350-16190 |
| 77366 | Fuel filler cap hinge spring | 77360-16010 |
| 77380 | Fuel shut-off valve assembly | 77380-26010 |
| 77391 | fuel inlet ring | 77391-14020 |
| 77406A | Clamp (for fuel pipe protection device) | 90467-16023 |
| 77412 | No. 2 fuel pipe retaining ring bracket | 77412-10010 |
| 77641A | No. 1 fuel tank protective shell | 77641-10050 |
| 77653A | No. 3 fuel tank liner | 77653-10030 |
| 77701T | Check valve (for main fuel tank) | 90917-10082 |
| 77701U | Fuel hose (for check valve) | 77249-10080 |
| 77740 | Carbon canister assembly | 77704-16170 · 77740-16270 |
| 77740A | No. 1 fuel hose (for canister) | 77754-16020 · 77754-16040 |
| 77763 | Carbon canister discharge housing | 77763-10010 · 77763-10020 |
