Toyota COROLLA 挡泥板和扰流板 — Figure 7601

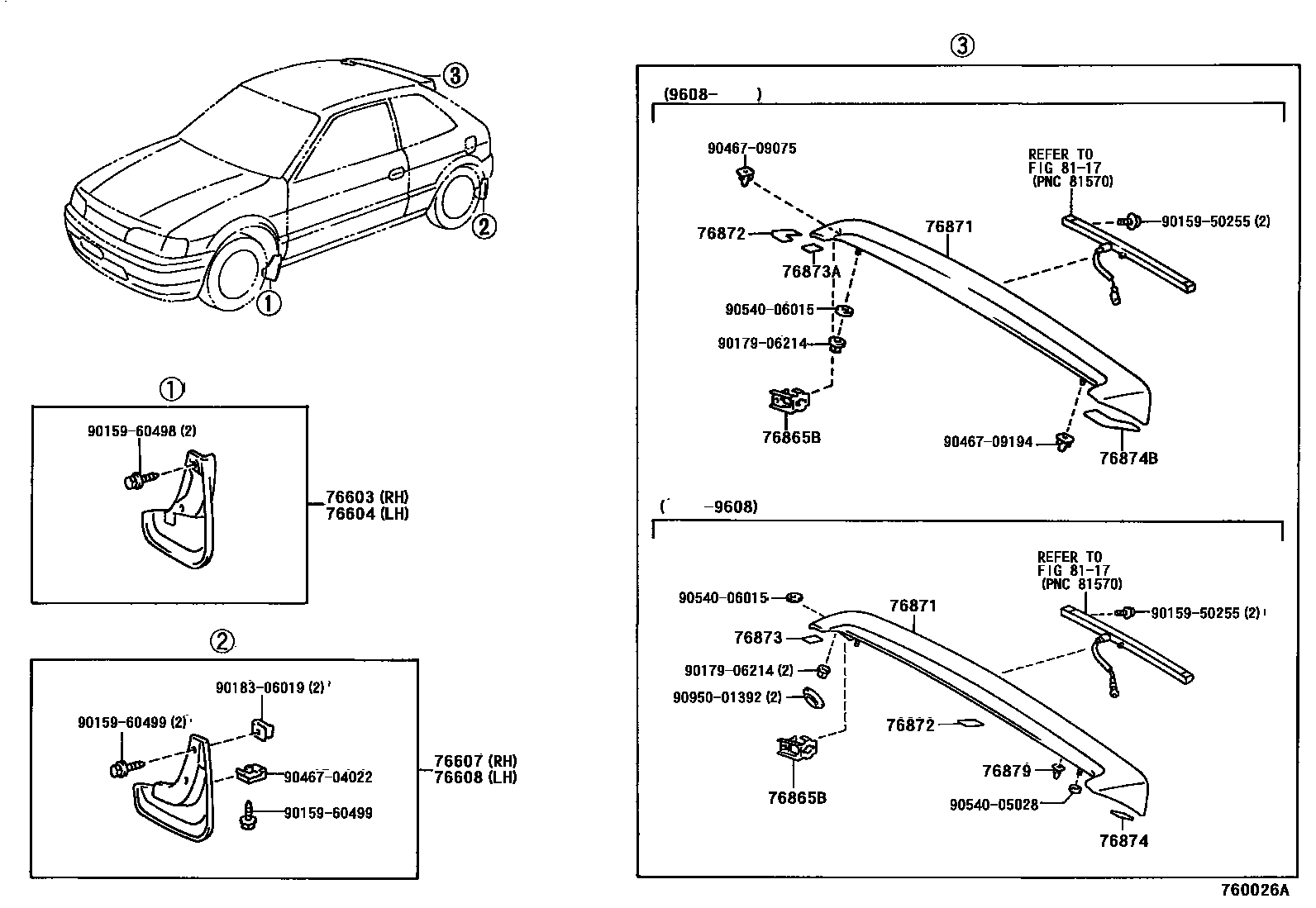

Toyota COROLLA EPC diagram 7601, 挡泥板和扰流板, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 76603 | Right front fender fender sub-assembly | 76621-19265 |
| 76604 | Left front fender fender sub-assembly | 76622-19265 |
| 76607 | Right rear side fender sub-assembly | 76625-19525 |
| 76608 | Left rear side fender sub-assembly | 76626-19525 |
| 76865B | Rear spoiler fixings | 76865-16030 |
| 76871 | rear spoiler | 76871-16901 · 76871-16906 |
| 76872 | No. 1 rear spoiler protective strip | 76872-16050 · 76872-16080 |
| 76873 | No. 2 rear spoiler protective strip | 76873-16070 |
| 76873A | Right rear spoiler protective strip | 76873-16090 |
| 76874 | No. 3 rear spoiler protective strip | 76874-16060 |
| 76874B | Left rear spoiler protective strip | 76874-16070 |
| 76879 | No. 1 rear spoiler clip | 90467-09075 |
