Toyota COROLLA 车身镶条 — Figure 7507

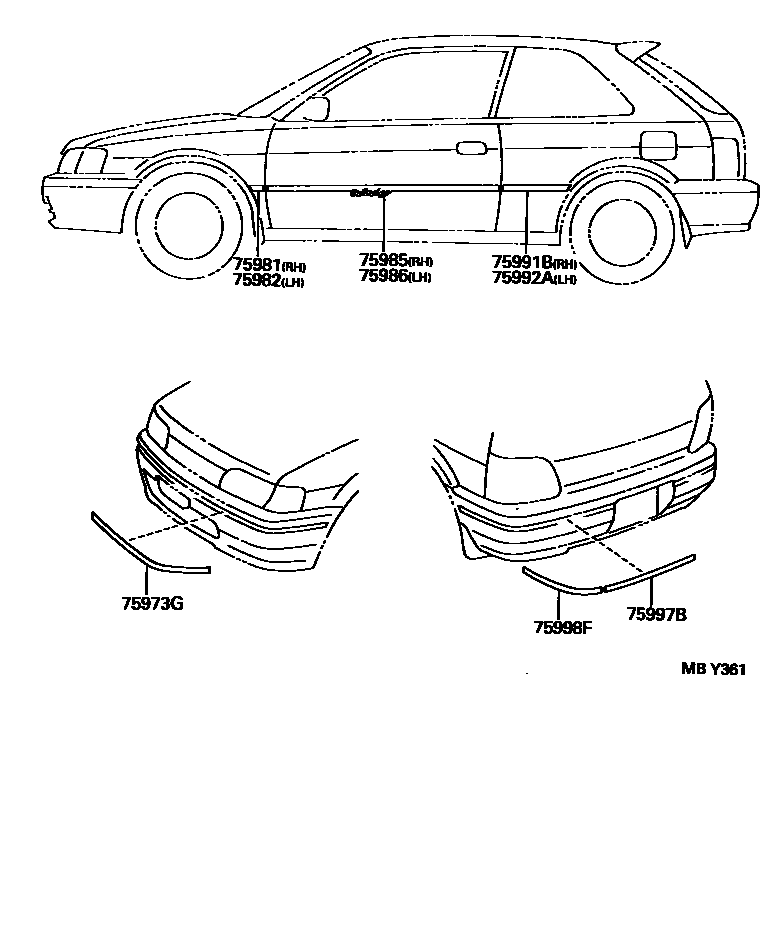

Toyota COROLLA EPC diagram 7507, 车身镶条, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75981 | No. 1 right front fender panel | 75981-16380 · 75981-16440 |
| 75982 | No. 1 left front fender panel | 75982-16360 · 75982-16420 |
| 75985 | Right front door trim | 75985-16640 · 75985-16670 · 75985-16710 · 75985-16740 · 75985-16771 · 75985-16790 |
| 75986 | Left front door trim | 75986-16630 · 75986-16650 · 75986-16680 · 75986-16710 · 75986-16741 · 75986-16760 |
| 75991B | Right side surround strip | 75991-16450 · 75991-16510 · 75991-16540 |
| 75992A | Left side surround strip | 75992-16420 · 75992-16480 · 75992-16510 |
