Toyota COROLLA battery holder — Figure 7402

Toyota COROLLA EPC diagram 7402, battery holder, with 1 images and 4 PNC and OE references.

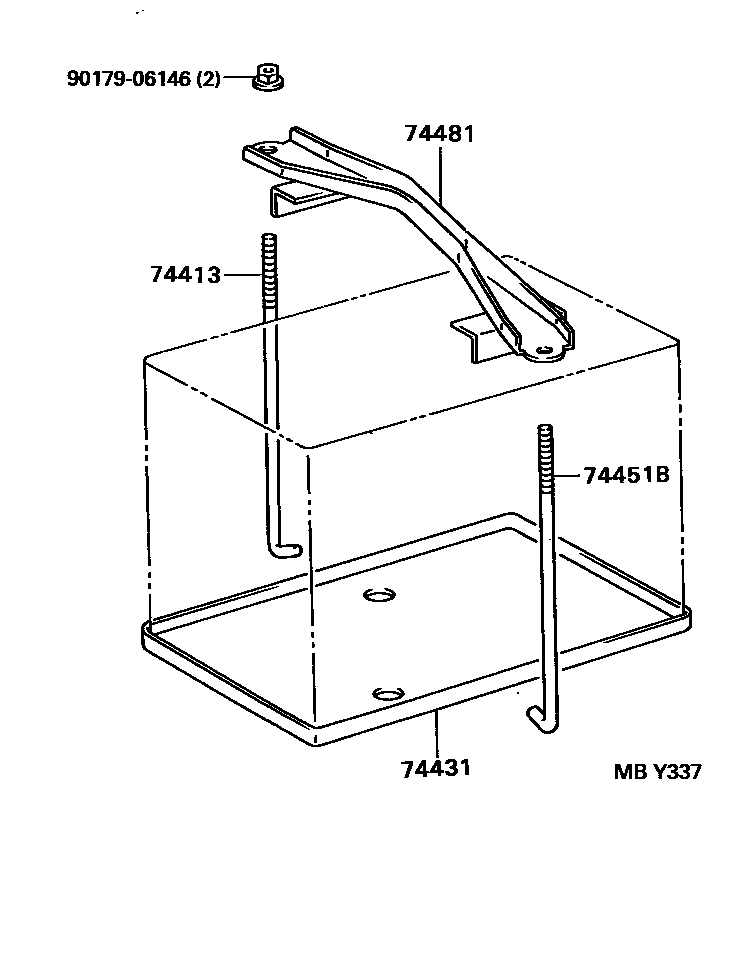

Toyota COROLLA battery holder EPC diagram — MBY337
battery holder — MBY337 (199409 – 999999)

PNC and OE references

PNCPart nameOE numbers
74413Battery clamp bolt74451-16030
74431battery tray74431-12010 · 74431-14020 · 74431-14040
74451BBattery clamp bolt74451-16040
74481Battery fixing clip74404-16100 · 74404-16160 · 74404-16180 · 74404-16200
