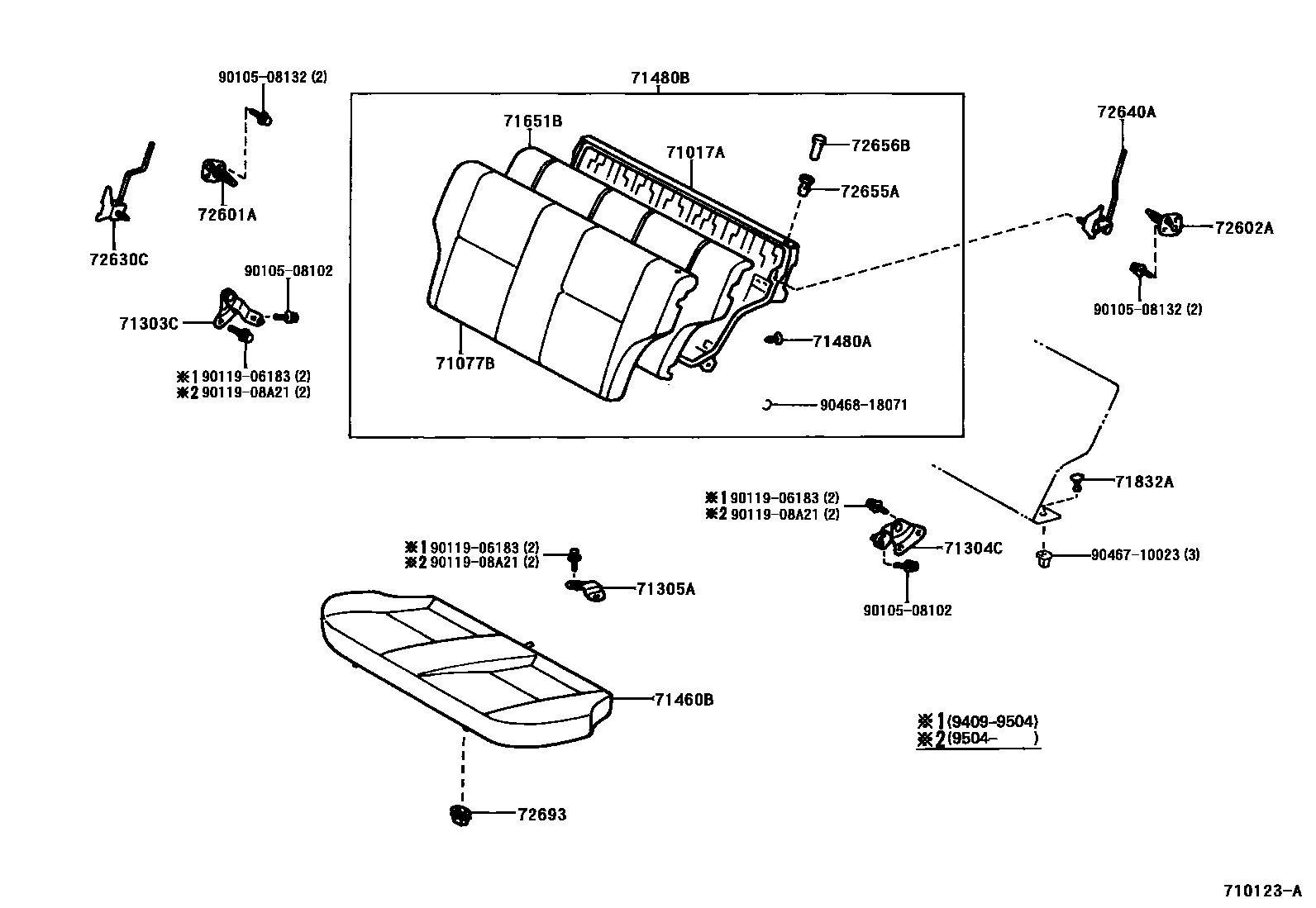

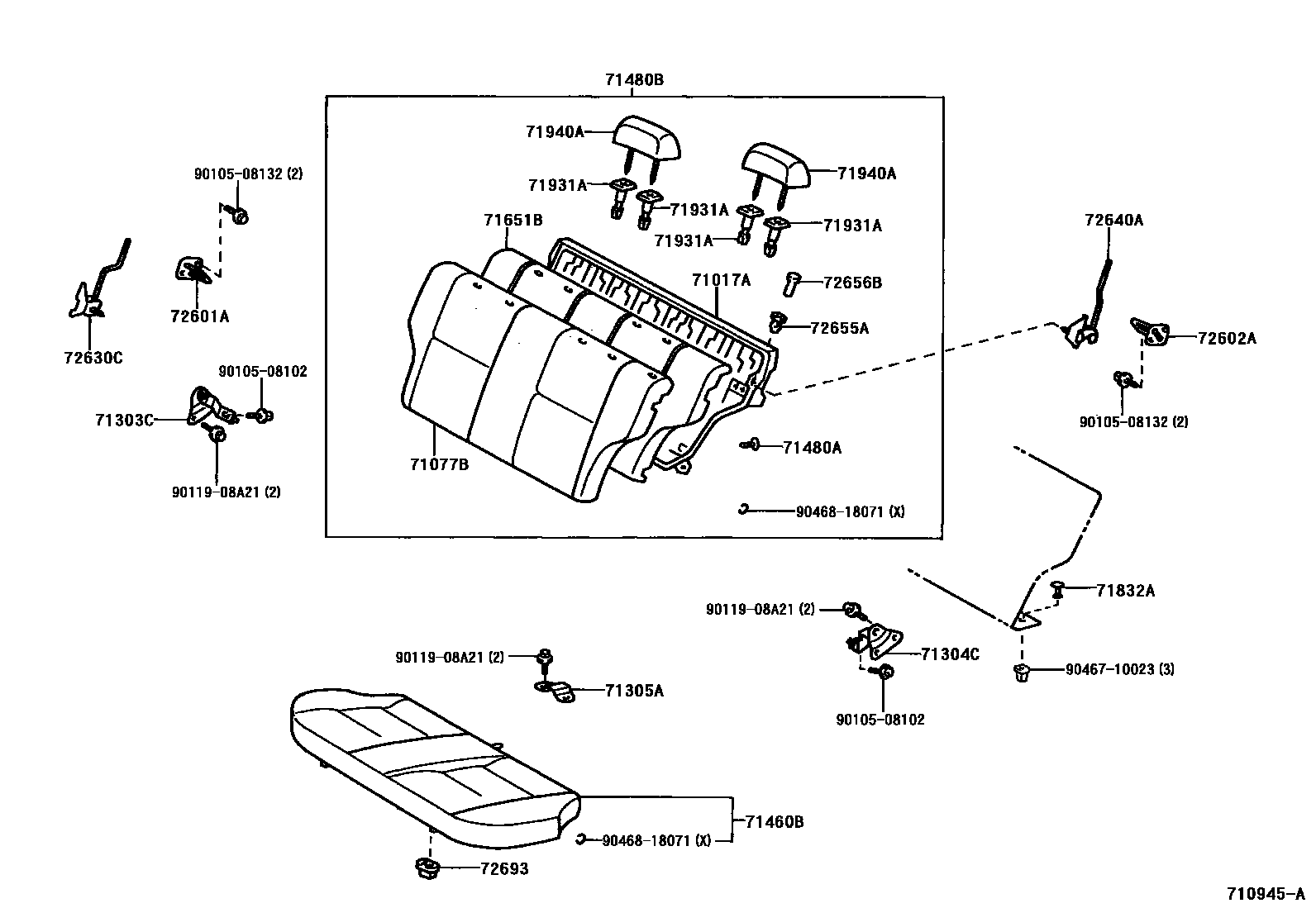

Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102
Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017A | Rear seat back frame sub-assembly | 71017-16180 · 71017-16260 |
| 71303C | Rear right seat backrest hinge sub-assembly | 71303-16050 · 71303-16060 · 71303-16070 |
| 71304C | Rear left seat back hinge sub-assembly | 71304-16010 · 71304-16040 · 71304-16050 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71343-16070 · 71343-16090 |
| 71651B | Rear seat back cushions (for bench seats) | 71651-16340 · 71651-16380 |
| 72601A | Right rear seat back lock sub-assembly | 72601-16070 · 72601-16100 |
| 72602A | Rear left seat back lock sub-assembly | 72601-16070 · 72601-16100 |
| 72630C | Rear right seat back lock assembly | 72630-16100 · 72630-16220 |
| 72640A | Rear left seat back lock assembly | 72640-16080 · 72640-16150 |
| 72693 | Rear seat cushion hook | 72693-20040 |
