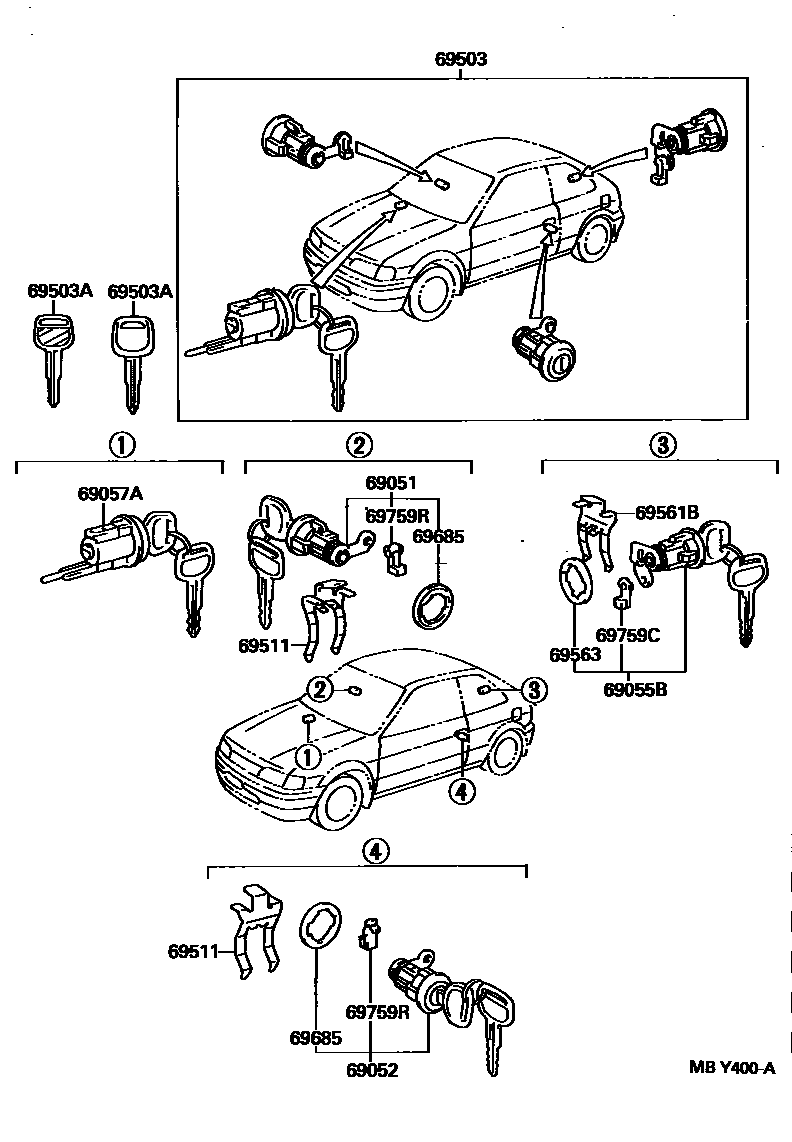

Toyota COROLLA 锁芯组件 — Figure 6712
Toyota COROLLA EPC diagram 6712, 锁芯组件, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-16250 · 69051-16290 · 69051-16320 |
| 69052 | Left door lock cylinder and key assembly | 69052-16230 · 69052-16270 · 69052-16300 |
| 69055B | Rear door lock cylinder and key assembly | 69055-16390 · 69055-16490 · 69055-16560 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-16160 · 69057-16170 · 69057-16230 · 69057-16240 · 69057-16290 |
| 69503 | Door lock cylinder components | 69005-16870 · 69005-16880 · 69005-1G200 · 69005-1G210 · 69005-1G390 |
| 69503A | external tooth key | 90999-00166 · 90999-00167 · 90999-00236 |
| 69511 | Front door lock cylinder fixing parts | 69511-16030 |
| 69561B | Rear door lock cylinder fixing parts | 69511-16030 · 69561-16070 |
| 69563 | Rear door lock cylinder gasket | 69563-16050 · 69563-16060 |
| 69685 | Lock cylinder liner | 69563-16050 |
| 69759C | Back door lock cylinder buckle | 69759-24080 |
| 69759R | Front door lock cylinder buckle | 69759-30040 · 69759-30050 |
