Toyota COROLLA 背门锁和背门把手 — Figure 6709

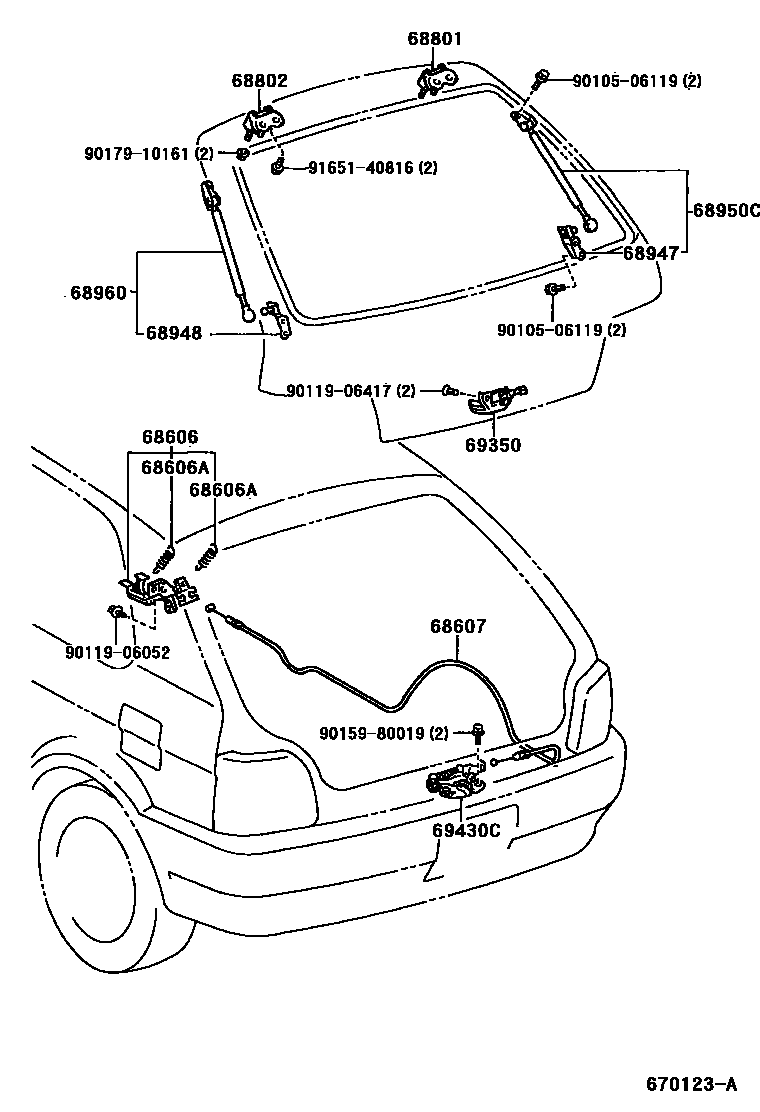

Toyota COROLLA EPC diagram 6709, 背门锁和背门把手, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68606 | Rear door lock opening lever sub-assembly | 64606-16050 |
| 68606A | Tension spring (for the rear door lock opening lever) | 90506-09004 |
| 68607 | Rear door lock control cable sub-assembly | 64607-16330 |
| 68801 | Back door upper right hinge sub-assembly | 68801-10030 |
| 68802 | Back door upper left hinge sub-assembly | 68801-10030 |
| 68947 | Back door right damping strut lower bracket | 68947-16022 |
| 68948 | Rear door left damping strut lower bracket | 68948-16022 |
| 68950C | Back door right support rod assembly | 68950-80040 · 68950-80041 |
| 68960 | Back door left support rod assembly | 68960-80006 · 68960-80007 |
| 69350 | Rear door lock assembly | 69350-16140 |
| 69430C | Back door lock assembly | 69430-16190 |
