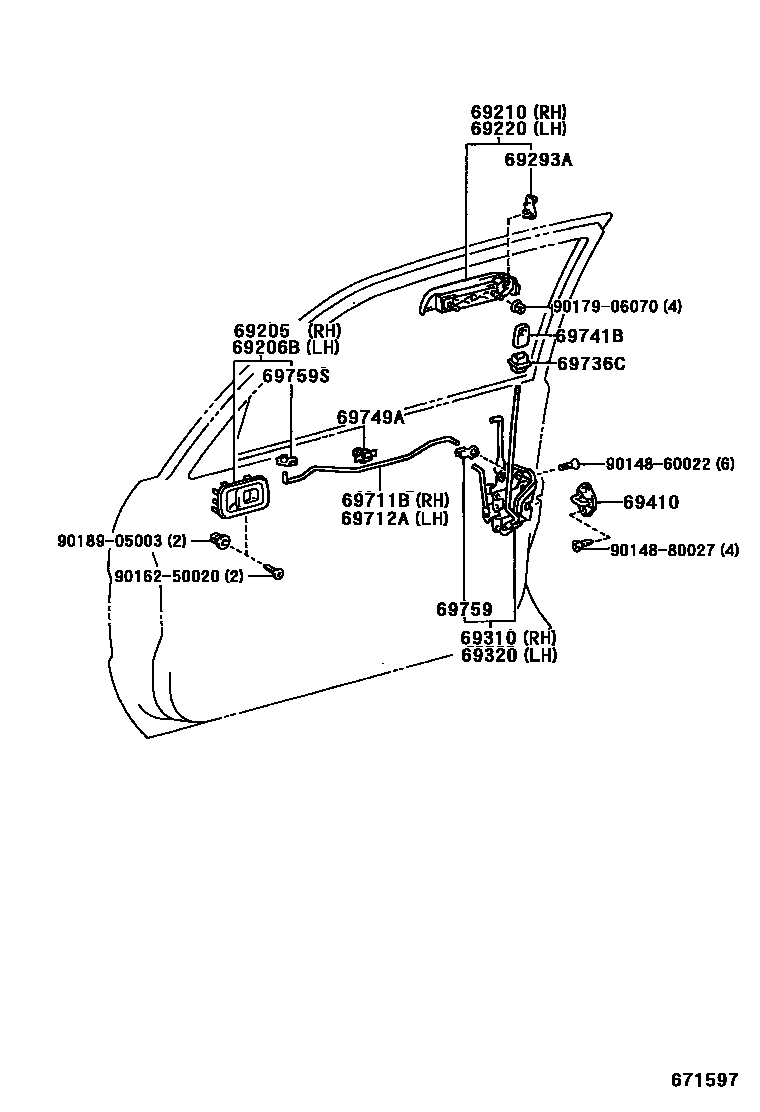

Toyota COROLLA 前门锁和车门把手 — Figure 6703
Toyota COROLLA EPC diagram 6703, 前门锁和车门把手, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69210 | Right front door outer handle assembly | 69210-16090 · 69210-16091 · 69210-16120 |
| 69220 | Left front door outer handle assembly | 69220-16090 · 69220-16091 · 69220-16120 |
| 69293A | Front door outer handle buckle | 69293-10010 · 69293-10020 |
| 69310 | Right front door lock assembly | 69030-16160 · 69310-16320 |
| 69320 | Left front door lock assembly | 69040-16160 · 69320-16320 |
| 69410 | Front door lock plate assembly | 69410-16010 |
| 69711B | Right front door lock remote control lever | 69711-16100 |
| 69712A | Left front door lock remote control lever | 69712-16100 |
| 69736C | Front door locking link guide block | 69736-16040 |
| 69749A | Front door lock No. 1 link clamp | 69749-12070 · 69749-50020 |
| 69759 | Rear door lock No. 1 control link buckle | 69759-20080 · 69759-20090 |
| 69759S | Front door inner handle buckle | 69759-20060 · 69759-20070 |
