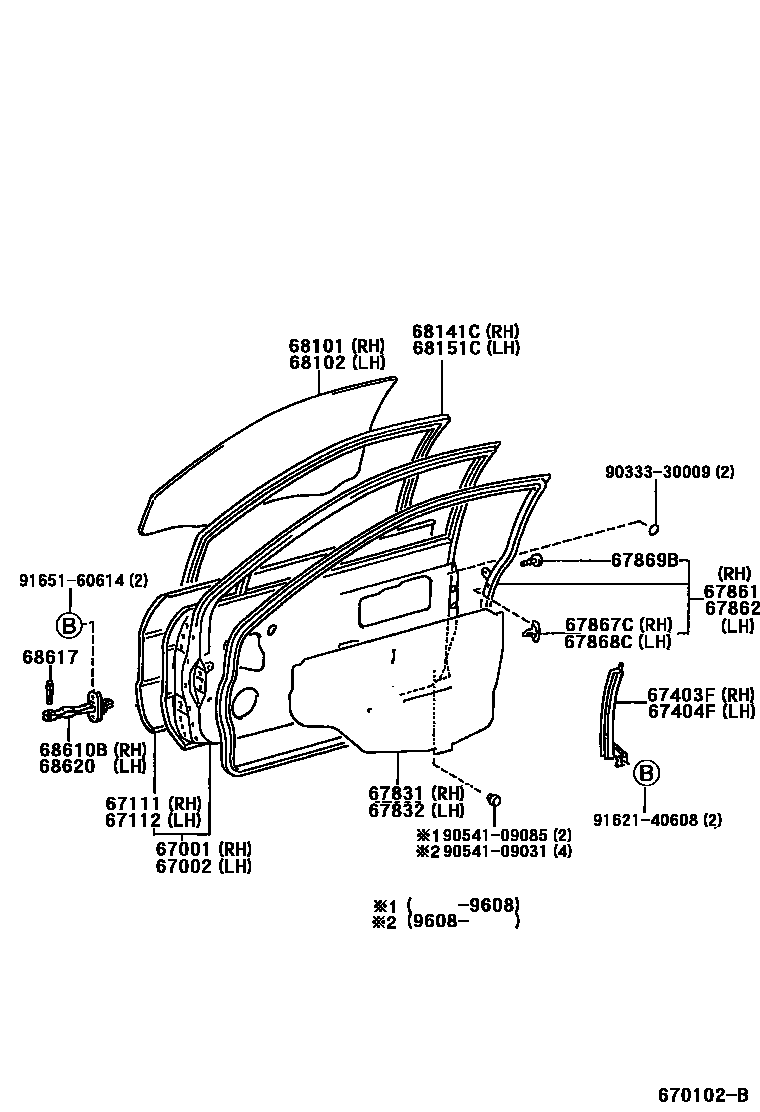

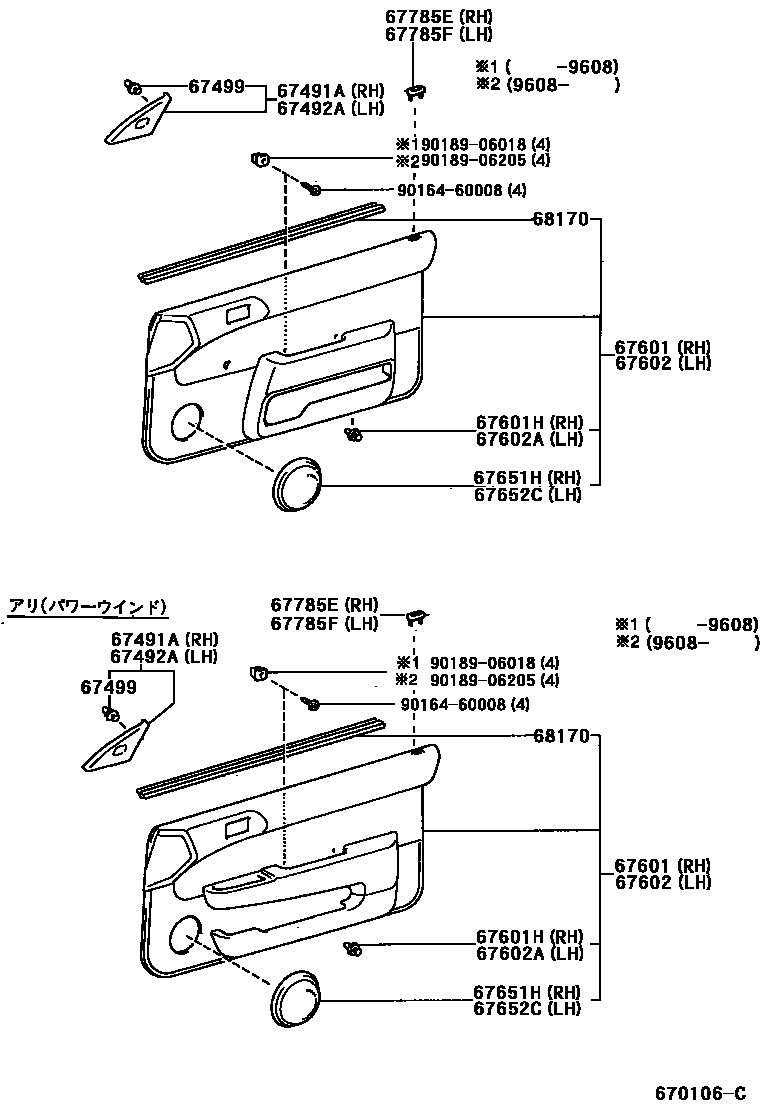

Toyota COROLLA 前门板和前门玻璃 — Figure 6701
Toyota COROLLA EPC diagram 6701, 前门板和前门玻璃, with 3 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-16611 · 67001-16620 |
| 67002 | Left front door panel sub-assembly | 67002-16541 · 67002-16550 |
| 67111 | Outer right front door panel | 67111-16230 |
| 67112 | Outer left front door panel | 67112-16220 |
| 67403F | Right front door rear lower door frame sub-assembly | 67403-16130 · 67403-16180 |
| 67404F | Left front door rear lower door frame sub-assembly | 67404-16130 · 67404-16180 |
| 67491A | Right front door lower door frame bracket decorative strip | 67491-16110 · 67491-16111 · 67491-16230 |
| 67492A | Left front door lower door frame bracket decorative strip | 67492-16110 · 67492-16111 · 67492-16230 |
| 67499 | Front door lower door frame bracket trim strip fixing | 67771-30070 |
| 67601H | Right door trim panel fixing | 67771-12050 · 67771-16120 · 67771-16160 |
| 67602A | Left door trim panel fixing | 67771-12050 · 67771-16120 · 67771-16160 |
| 67831 | Right front door access hole cover | 67831-16410 · 67831-16420 |
| 67832 | Left front door access hole cover | 67831-16410 · 67832-16130 |
| 67861 | Right front door seal | 67861-16290 |
| 67862 | Left front door seal | 67862-16310 |
| 67867C | Right front door seal strip fixing | 67867-12150 |
| 67868C | Left front door seal strip fixing | 67867-12150 |
| 67869B | Front door seal strip clip | 67869-30020 |
| 68101 | Right front door glass sub-assembly | 68110-16150 · 68110-16170 · 68110-16220 · 68110-16230 |
| 68102 | Left front door glass sub-assembly | 68120-16150 · 68120-16160 · 68120-16170 · 68120-16220 · 68120-16230 |
| 68141C | Right front door glass lift channel | 68141-16220 |
| 68151C | Left front door glass lift channel | 68151-16050 |
| 68170 | Front door glass inner sealing strip assembly | 68171-16120 · 68171-16160 · 68171-16200 · 68172-16150 · 68172-16180 · 68172-16220 |
| 68610B | Right front door opening limiter assembly | 68610-16090 |
| 68617 | Front door opening limiter pin | 68617-12030 · 68617-20011 |
| 68620 | Left front door opening limiter assembly | 68610-16090 |
