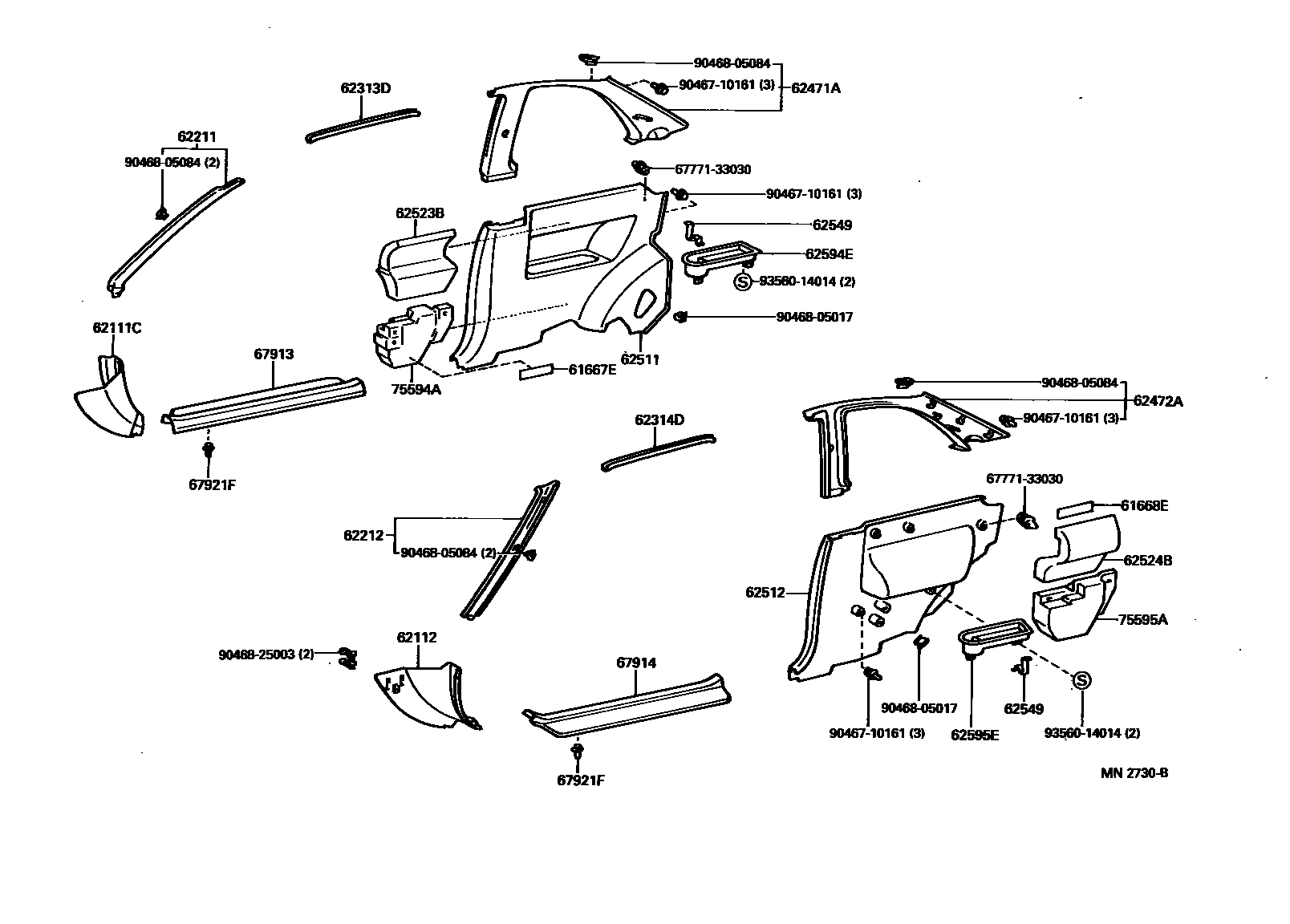

Toyota COROLLA 内饰板和车门防水胶条 — Figure 6401
Toyota COROLLA EPC diagram 6401, 内饰板和车门防水胶条, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 61667E | No. 1 side panel seal | 61667-16040 |
| 61668E | No. 2 side panel seal | 61668-16040 |
| 62523B | Right side decorative panel corner pad | 62523-16020 |
| 62524B | Left side decorative panel corner pad | 62524-16020 |
| 62549 | No. 2 side decorative panel reinforcement | 62549-16040 |
| 67921F | Front door wear plate fixings | 67921-16020 |
| 75594A | Right side panel decorative panel lining | 75594-16010 |
| 75595A | Left side panel decorative panel lining | 75595-16010 |
