Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104
Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 2 images and 41 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

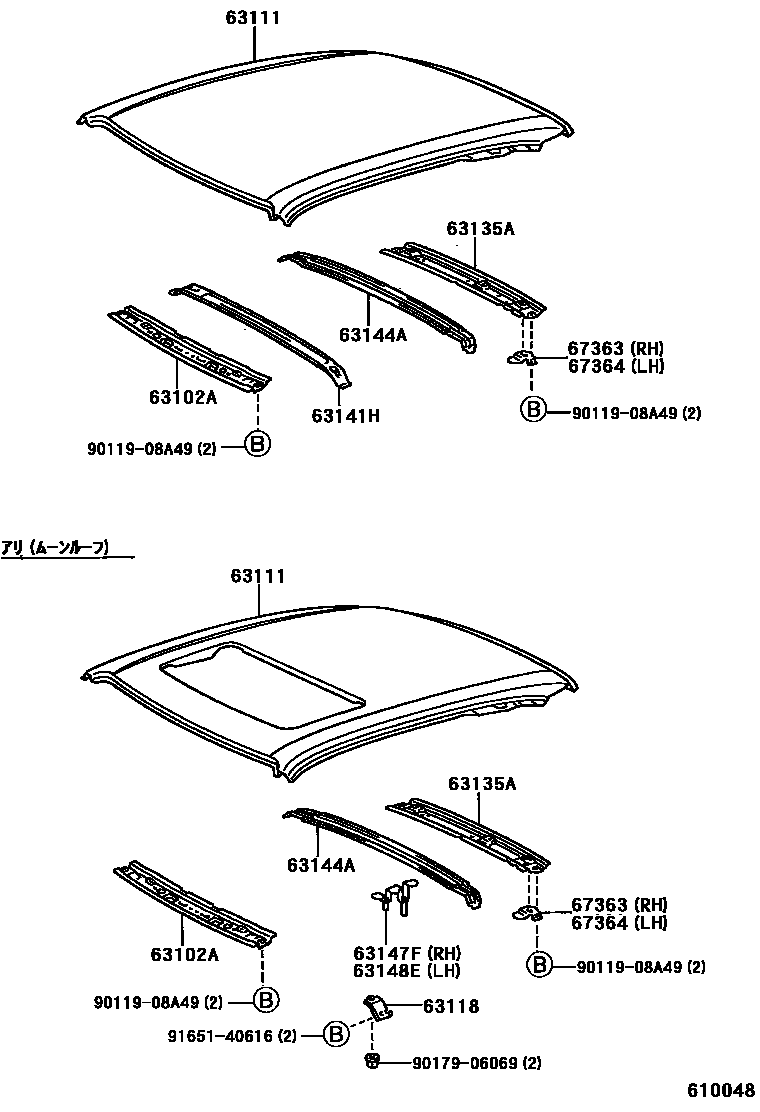

| 63102A | Windshield roof sub-assembly | 63132-16080 |
| 63111 | roof panel | 63111-16240 · 63111-16900 |
| 63118 | Right roof panel bracket | 63118-16020 |
| 63135A | Opening frame under rear door | 63135-16080 |
| 63141H | Center roof panel reinforcement | 63141-16100 |
| 63144A | No. 4 roof panel reinforcement | 63144-16040 |
| 63147F | Right roof panel reinforcement bracket | 63147-16020 |
| 63148E | Left roof panel reinforcement bracket | 63148-16020 |

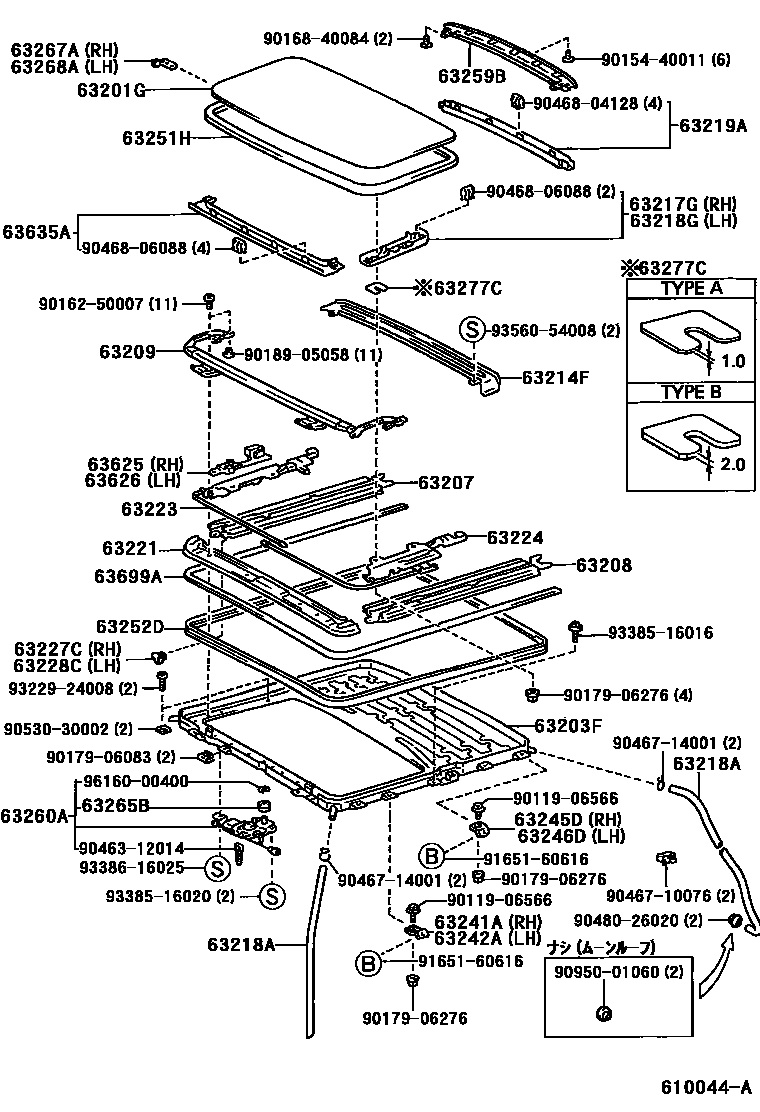

| 63201G | Sliding sunroof glass sub-assembly | 63204-16040 · 63204-16060 |
| 63203F | Sliding sunroof frame sub-assembly | 63203-20060 |
| 63207 | Right sliding sunroof guide rail sub-assembly | 63207-20071 · 63207-20090 |
| 63208 | Left sliding sunroof guide rail sub-assembly | 63208-20071 · 63208-20090 |
| 63209 | Roof deflector sub-assembly | 63209-16060 |
| 63214F | Roof rear drain channel | 63214-20050 |
| 63217G | Right sliding sunroof trim | 63217-20060 |
| 63218A | Hoses (for sliding or removable sunroof drainage) | 63249-16150 |
| 63218G | Sliding sunroof trim, left | 63218-20090 |
| 63219A | Rear sliding sunroof trim | 63219-20030 |
| 63221 | Sliding sunroof cable duct | 63221-20090 |
| 63223 | Right sliding sunroof transmission cable | 63223-20100 |
| 63224 | Left sliding sunroof transmission cable | 63224-20100 |
| 63227C | Right front sliding sunroof sunshade stop | 63227-20010 |
| 63228C | Left front sliding sunroof sunshade stop | 63228-20010 |
| 63241A | Sliding sunroof frame right front mounting bracket | 63241-16030 |
| 63242A | Sliding sunroof frame left front mounting bracket | 63241-16030 |
| 63245D | Sliding sunroof frame right rear mounting bracket | 63245-16010 |
| 63246D | Sliding sunroof frame left rear mounting bracket | 63245-16010 |
| 63251H | Sliding skylight seal | 63251-16060 |
| 63252D | Sliding skylight frame sealing strip | 63252-16040 |
| 63259B | Sliding sunroof sealing strip holder | 63259-16050 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-20110 |
| 63265B | Sliding sunroof driving gear | 63265-20010 |
| 63267A | Right sliding sunroof sealing strip protector | 63267-32020 |
| 63268A | Left sliding sunroof sealing strip protector | 63268-32020 |
| 63277C | Sliding skylight panel gasket | 63277-20030 · 63277-20050 |
| 63625 | Right sliding sunroof guide block | 63625-20020 · 63625-20040 |
| 63626 | Left sliding sunroof guide block | 63626-20020 · 63626-20040 |
| 63635A | Front sliding sunroof trim | 63635-20030 |
| 63699A | Sliding sunroof guide seals | 63699-12040 |
| 67363 | Back door No. 2 right hinge fixing piece | 67363-16020 |
| 67364 | Back door No. 2 left hinge fixing piece | 67364-16020 |
