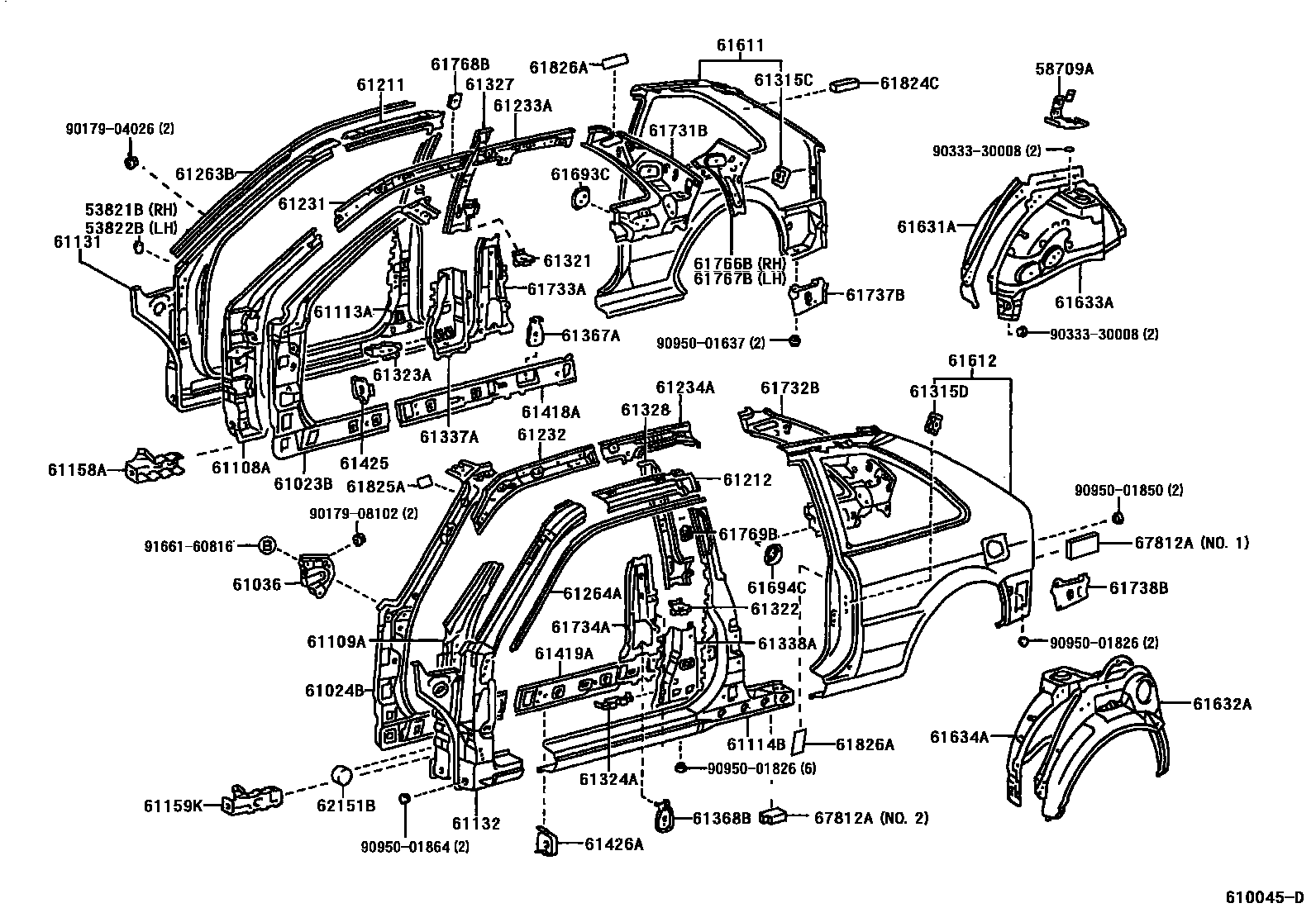

Toyota COROLLA 侧梁 — Figure 6101
Toyota COROLLA EPC diagram 6101, 侧梁, with 1 images and 61 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53821B | Right front fender rear support | 53821-16010 |
| 53822B | Left front fender rear support | 53821-16010 |
| 58709A | Jack bracket sub-assembly | 58709-16030 |
| 61023B | Right body inner front pillar sub-assembly | 61023-16100 · 61023-16170 |
| 61024B | Left body inner front pillar sub-assembly | 61024-16170 · 61024-16200 |
| 61036 | Instrument panel to left front wall side bracket sub-assembly | 61036-16030 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-16060 · 61108-16902 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-16060 · 61109-16902 |
| 61113A | No. 2 right outer panel | 61113-16060 |
| 61114B | No. 2 left outer panel | 61114-16060 |
| 61131 | Right body outer front upper pillar | 61131-16180 |
| 61132 | Left body outer front upper pillar | 61132-16210 |
| 61158A | Extension section under right front pillar | 61158-16010 |
| 61159K | Extension section under left front pillar | 61159-16020 |
| 61211 | Roof right outer longitudinal beam | 61211-16150 |
| 61212 | Roof left outer longitudinal beam | 61212-16150 |
| 61231 | Inner longitudinal beam on the right side of the roof | 61231-16220 · 61231-16250 · 61231-16300 |
| 61232 | Roof left inner longitudinal beam | 61232-16220 · 61232-16250 · 61232-16300 |
| 61233A | No. 2 longitudinal beam inside the right side of the roof | 61233-16050 · 61233-16060 · 61233-16110 |
| 61234A | No. 2 longitudinal beam on the inner left side of the roof | 61232-16130 · 61234-16050 · 61234-16060 · 61234-16110 |
| 61263B | Front drain channel on the right side of the roof | 61263-16090 |
| 61264A | Roof left front drain channel | 61264-16090 |
| 61315C | Right door latch fastener | 61315-22020 |
| 61315D | Left door latch fastener | 61315-22020 |
| 61321 | Reinforcement member on right body center pillar | 61321-16030 |
| 61322 | Reinforcement member on left body center pillar | 61322-16040 |
| 61323A | Right body center pillar lower reinforcement | 61323-16050 |
| 61324A | Left body center pillar lower reinforcement | 61323-16050 |
| 61327 | Right body outer center pillar reinforcement | 61327-16090 |
| 61328 | Left body outer center pillar reinforcement | 61328-16090 |
| 61337A | Right body inner center pillar reinforcement | 61305-16060 · 61337-16010 |
| 61338A | Left body inner center pillar reinforcement | 61306-16060 · 61338-16010 |
| 61367A | Right seat belt anchor to center pillar lower reinforcement | 61367-16030 · 61367-16040 |
| 61368B | Left seat belt anchor to center pillar lower reinforcement | 61368-16030 · 61368-16040 |
| 61418A | Right side door sill panel reinforcement | 61418-16040 |
| 61419A | Left side rocker panel reinforcement | 61419-16040 |
| 61425 | Right side door sill panel No. 4 reinforcement | 61425-16010 |
| 61426A | Left side door sill panel No. 4 reinforcement | 61426-16010 |
| 61611 | Right side hoarding | 61601-1G050 |
| 61612 | left side panel | 61602-1G390 |
| 61631A | Right wheel cover outer panel | 61631-16170 |
| 61632A | Left side wheel cover outer panel | 61632-16170 |
| 61633A | Right wheel housing lining panel | 61607-16240 · 61607-16241 · 61607-16380 · 61607-16381 · 61607-16440 · 61607-16470 |
| 61634A | Left side wheel housing lining panel | 61608-16350 · 61608-16351 · 61608-16400 · 61608-16401 · 61608-16460 · 61608-16490 |
| 61693C | Rear right seat backrest assembly fastener | 61693-16080 |
| 61694C | Rear left seat back assembly fastener | 61693-16080 |
| 61731B | Roof right inner panel | 61731-16210 · 61731-16211 |
| 61732B | Roof left inner panel | 61732-16210 · 61732-16211 |
| 61733A | Right front roof inner panel | 61707-16020 · 61733-16070 |
| 61734A | Left front roof inner panel | 61708-16020 · 61734-16060 |
| 61737B | Right inner lower panel of the roof | 61737-16080 |
| 61738B | Roof left inner lower panel | 61738-16080 |
| 61766B | Right seat belt anchor to roof inner reinforcement | 61766-16130 · 61766-16131 |
| 61767B | Left-hand seat belt anchor to roof inner reinforcement | 61767-16110 · 61767-16111 |
| 61768B | Rear right seat belt anchor to roof inner reinforcement | 61768-32010 |
| 61769B | Rear left seat belt anchor to roof inner reinforcement | 61768-32010 |
| 61824C | No. 1 silencer panel gasket | 61824-16010 |
| 61825A | Noise Control Panel No. 2 | 61825-12010 · 61825-16030 |
| 61826A | Noise Control Panel No. 3 | 61826-16030 |
| 62151B | Front cowl side silencer pads | 62151-12100 · 62151-12130 |
| 67812A | Side panel sound absorbing pads | 67812-10020 · 67812-16070 |
