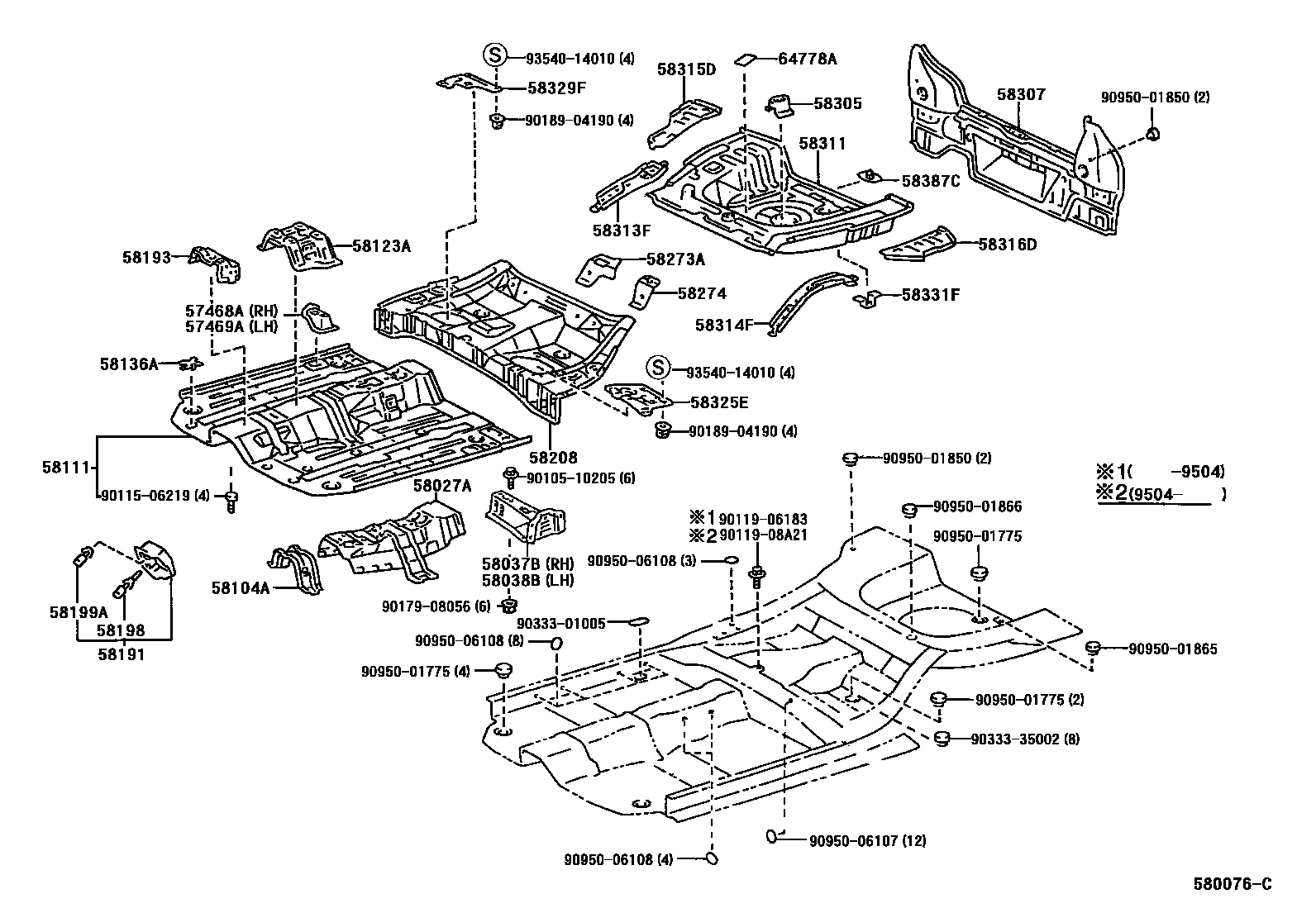

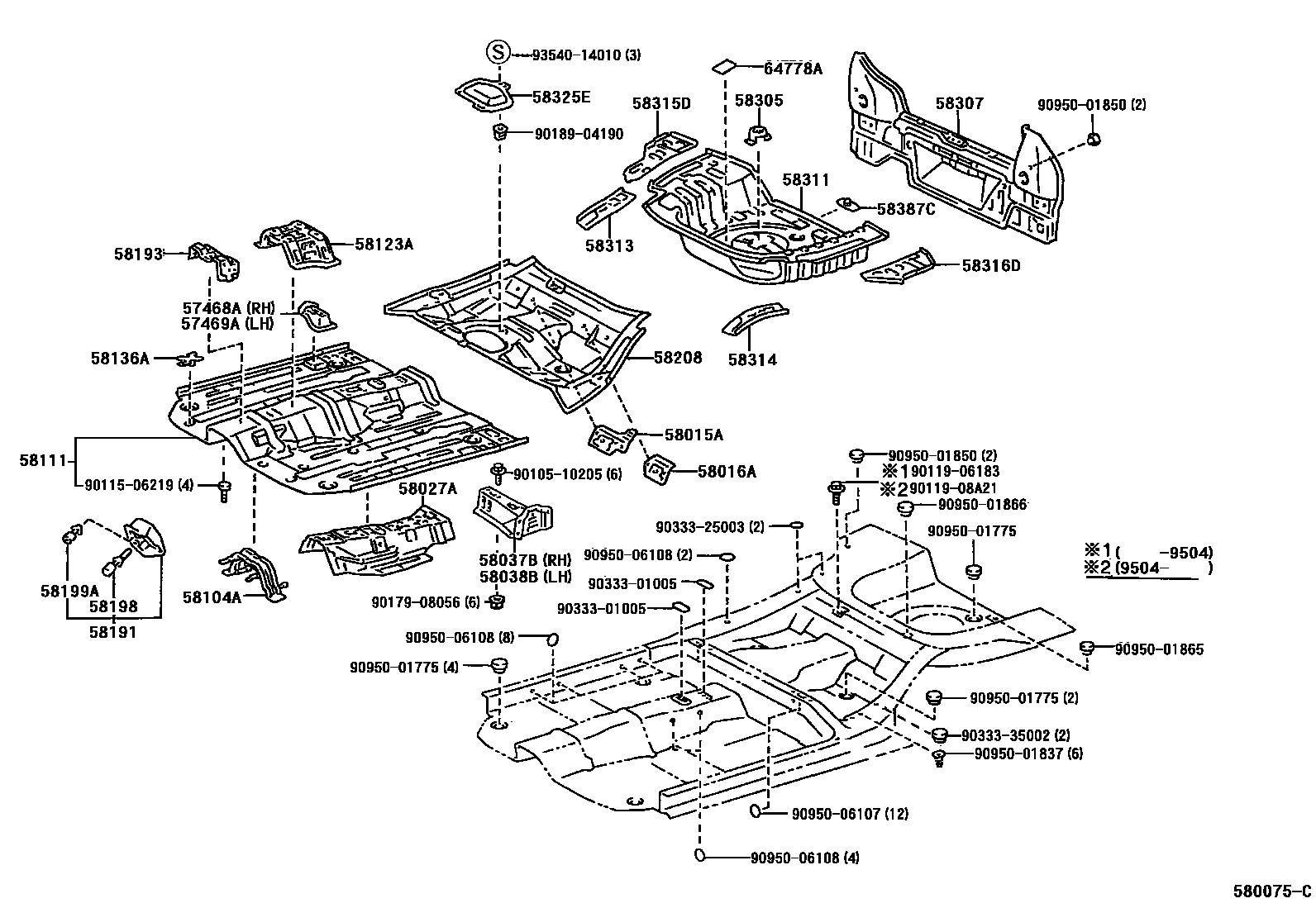

Toyota COROLLA 浅盘形地板和车身下背板 — Figure 5801
Toyota COROLLA EPC diagram 5801, 浅盘形地板和车身下背板, with 2 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57468A | Front right seat outer rear bracket | 57468-10030 |
| 57469A | Front left seat outer rear bracket | 57469-10030 |
| 58015A | Right No. 3 seat belt anchor reinforcement sub-assembly | 58015-10020 · 58015-16050 |
| 58016A | Left No. 3 seat belt anchor reinforcement sub-assembly | 58016-10020 |
| 58027A | Seat belt anchor reinforcement sub-assembly | 58027-16081 · 58027-16090 · 58027-16091 |
| 58037B | Right center pillar to floor reinforcement | 58037-16010 · 58037-16020 |
| 58038B | Left center pillar to floor reinforcement | 58038-16010 · 58038-16020 |
| 58104A | Three-way catalytic converter bracket sub-assembly | 58104-16011 · 58104-16020 · 58277-10020 |
| 58111 | front floor pan | 58111-16900 · 58111-16901 · 58111-16902 · 58111-16903 |
| 58123A | shift lever bracket | 58123-10050 · 58123-16050 |
| 58136A | Front floor access hole cover | 58136-12030 |
| 58191 | Front floor footrest | 58191-16070 |
| 58193 | Dashboard bracket mounting bracket | 58193-16040 · 58193-16060 |
| 58198 | Footrest clip | 58198-16030 |
| 58199A | Footrest clip No. 2 | 58199-16020 |
| 58208 | central floor base | 58211-16081 · 58211-16091 · 58211-16100 |
| 58273A | Right seat belt anchor to center pillar reinforcement | 58273-10031 · 58273-16040 |
| 58274 | Seat belt anchor No. 1 to center floor reinforcement | 58274-10010 |
| 58305 | Spare tire clamp bracket sub-assembly | 58305-10011 · 58351-10030 |
| 58307 | Body lower back panel sub-assembly | 58307-16400 |
| 58311 | rear floor pan | 58311-10192 · 58311-10193 · 58311-10200 · 58311-10201 |
| 58313 | Rear floor right panel | 58313-16030 |
| 58313F | Rear floor pan to right side apron extension | 58313-10030 |
| 58314 | rear floor left panel | 58314-16090 |
| 58314F | Rear floor pan to left side apron extension | 58314-10030 |
| 58315D | Rear floor pan right extension | 58315-16060 |
| 58316D | Rear floor pan left extension | 58316-16080 |
| 58325E | Rear floor access hole cover | 58031-16020 · 58325-10040 |
| 58329F | Rear floor manhole cover No. 2 | 58329-10010 |
| 58331F | Rear floor insulation pad bracket No. 3 | 58331-10011 |
| 58387C | Rear floor decorative panel | 58387-10010 |
| 64778A | Spare tire protection device | 64778-10020 · 64778-16020 · 64778-16030 |
