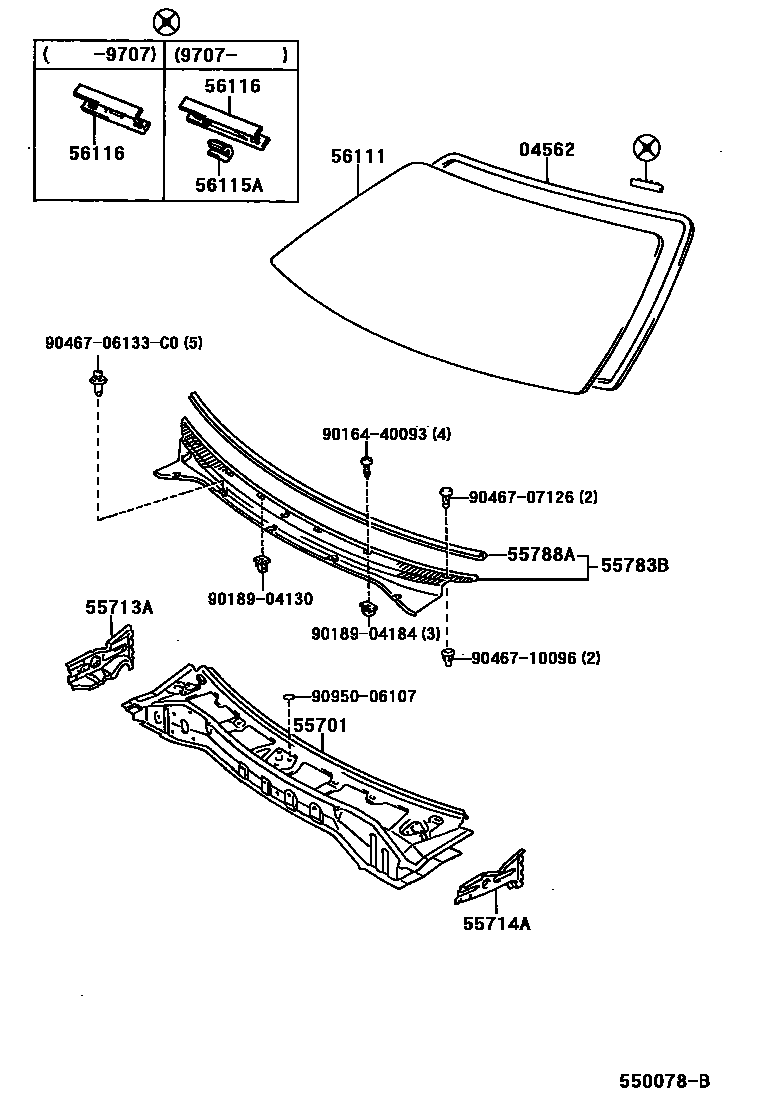

Toyota COROLLA 前围板和挡风玻璃 — Figure 5503
Toyota COROLLA EPC diagram 5503, 前围板和挡风玻璃, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04562 | Windshield sealing strip assembly | 04562-12010 |
| 55701 | Front apron sub-assembly | 55700-16250 · 55700-16270 |
| 55713A | Right front wall upper side panel | 55713-16060 |
| 55714A | Left front wall upper side panel | 55714-16060 |
| 55783B | Ventilation grille on center cowl No. 1 | 55708-16100 · 55708-16110 |
| 55788A | Ventilation grille protector on front apron | 55788-16090 · 55788-16091 |
| 56111 | windshield | 56111-16310 · 56111-16320 · 56111-16430 |
| 56115A | Windshield block No. 1 | 56115-12050 |
| 56116 | windshield spacer | 56116-16050 · 56116-22050 |
