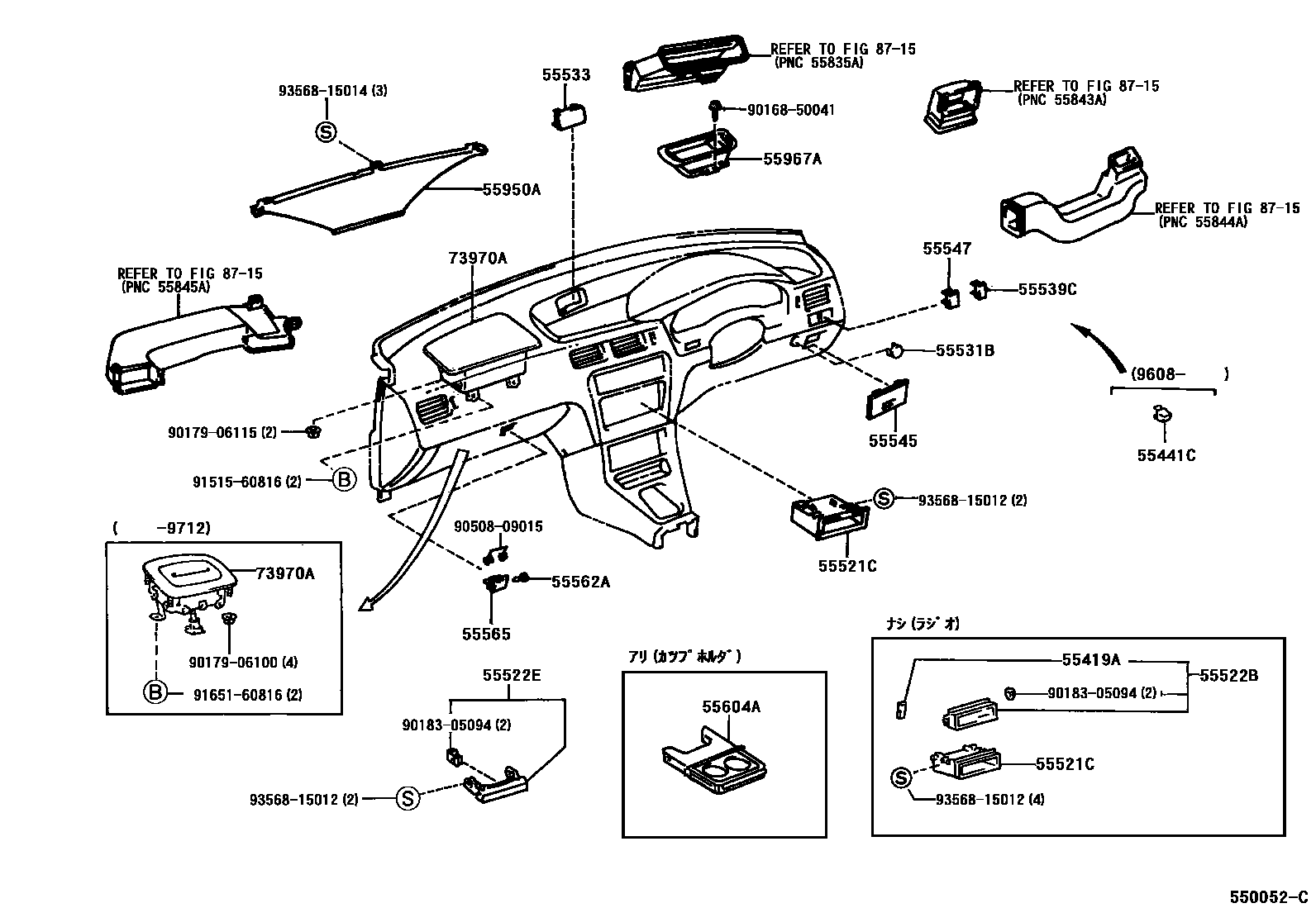

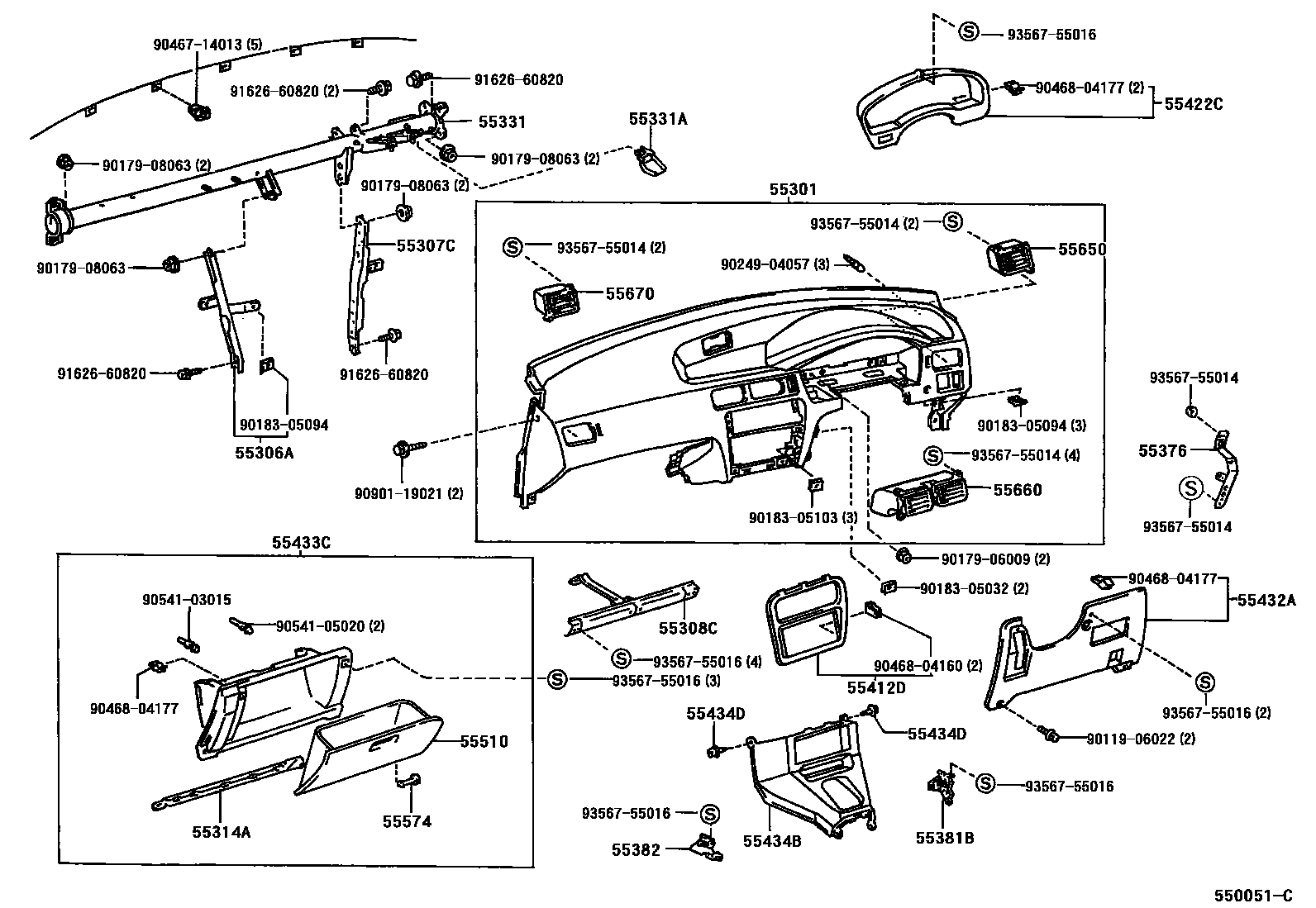

Toyota COROLLA 仪表板和手套箱 — Figure 5501
Toyota COROLLA EPC diagram 5501, 仪表板和手套箱, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-16110 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-16110 · 55307-16120 · 55307-16130 |
| 55308C | Center instrument panel bracket sub-assembly | 55308-16060 |
| 55314A | center lower instrument panel | 55314-16030 |
| 55331 | Dashboard reinforcement | 55330-16130 · 55330-16190 · 55330-16200 |
| 55331A | Instrument panel reinforcement protector | 45874-10020 · 45874-16060 |
| 55376 | Instrument panel mounting bracket No. 1 | 55376-16050 |
| 55381B | No. 1 decorative panel mounting bracket | 55381-16040 |
| 55382 | No. 2 decorative panel mounting bracket | 55382-16040 |
| 55412D | Center instrument cluster decorative panel | 55412-16110 |
| 55419A | Instrument cluster decorative panel cushion | 55419-14020 |
| 55422C | Center instrument cluster upper decorative panel | 55422-16060 |
| 55521C | stereo system hole cover | 55521-16030 |
| 55522B | Radio tuner opening cover | 55522-20070 |
| 55522E | Coaster opening cover | 55522-16030 |
| 55562A | Glove box lid lock link | 55562-10010 |
| 55574 | Glove box cover hinge shaft | 55574-10010 |
| 55604A | Dashboard cup holder sub-assembly | 55604-16040 · 55604-16041 |
| 55950A | Defroster nozzle assembly | 55950-16060 |
| 55967A | Lower defroster nozzle | 55967-16040 |
