Toyota COROLLA 前翼子板挡泥板和前围板 — Figure 5304

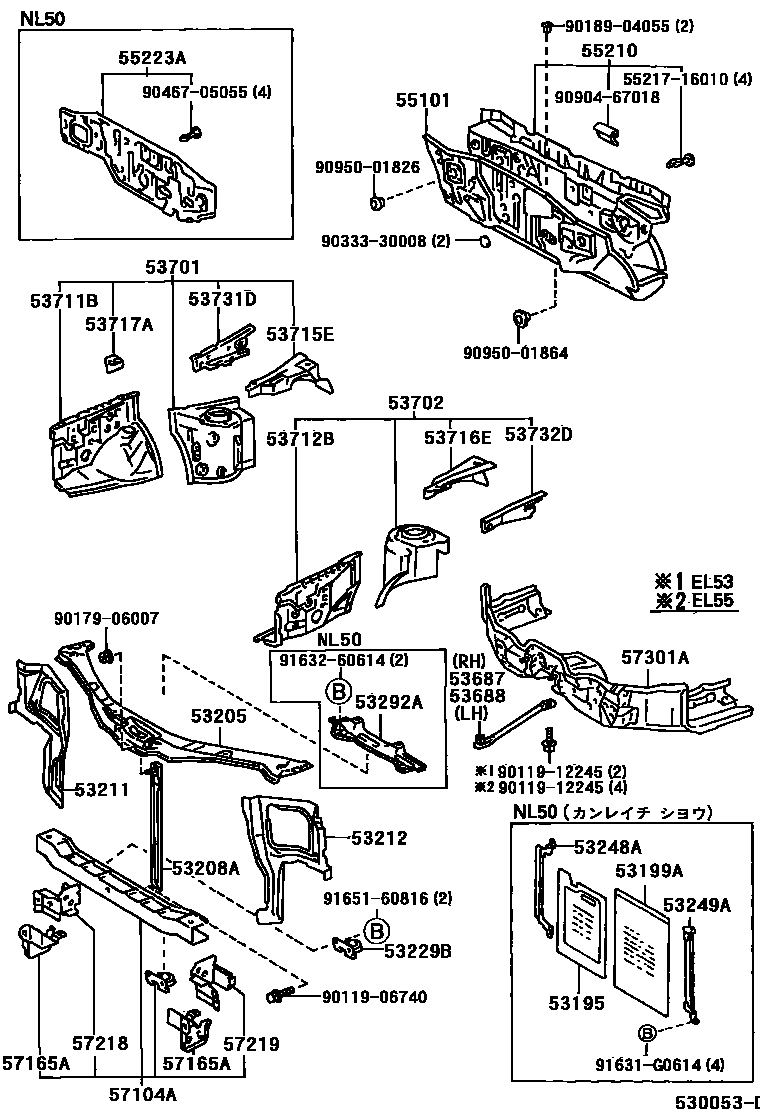

Toyota COROLLA EPC diagram 5304, 前翼子板挡泥板和前围板, with 1 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53195 | Radiator louvers | 53195-16021 |
| 53199A | Radiator louver bag | 53199-10020 |
| 53205 | Radiator upper bracket sub-assembly | 53205-16120 |
| 53208A | Engine cover lock bracket sub-assembly | 53215-16090 |
| 53211 | Radiator right side support | 53211-16120 · 53211-16121 |
| 53212 | Radiator left support | 53212-16120 |
| 53229B | Radiator No. 2 lower mounting bracket | 53229-16040 · 53229-16050 · 53229-16060 |
| 53248A | Radiator shutter right bracket | 53248-16050 |
| 53249A | Radiator shutter left bracket | 53249-16020 |
| 53292A | Radiator upper bracket seal | 53292-16020 |
| 53687 | Right side bracket (underside of front suspension to steering beam) | 53687-10030 |
| 53688 | Left side bracket (underside of front suspension to steering beam) | 53687-10030 |
| 53701 | Right front fender fender sub-assembly | 53701-16191 |
| 53702 | Left front fender fender sub-assembly | 53702-16121 |
| 53711B | Right front fender front fender | 53711-16141 |
| 53712B | Left front fender front fender | 53712-16071 |
| 53715E | Right front fender fender rear extension | 53715-10050 |
| 53716E | Left front fender fender rear extension | 53716-10050 |
| 53717A | fender fender | 53717-10040 |
| 53731D | Right front fender to cowl side upper beam | 53731-16030 |
| 53732D | Left front fender to cowl side upper beam | 53732-16030 |
| 55101 | Front apron sub-assembly | 55101-16620 · 55101-16621 · 55101-16660 · 55101-16840 · 55101-16850 · 55101-16860 · 55101-16870 · 55101-1G100 |
| 55210 | Front wall insulation pad assembly | 55210-16140 · 55210-16160 · 55210-16180 · 55210-16181 |
| 55223A | Front wall outer heat insulation pad | 55223-16041 · 55223-16042 |
| 57104A | Front cross member sub-assembly | 57104-16070 · 57104-16071 · 57104-16080 · 57104-16081 · 57104-16090 · 57104-16091 · 57104-16110 · 57104-16111 |
| 57165A | No. 2 front cross member reinforcement | 57165-16020 · 57166-16010 |
| 57218 | No. 1 front longitudinal beam corner plate | 57218-16030 · 57218-16031 |
| 57219 | No. 2 front longitudinal beam corner plate | 57219-16030 · 57219-16031 |
| 57301A | Steering housing support beam sub-assembly | 57301-16060 · 57301-16070 · 57301-16090 · 57301-16110 · 57301-16130 · 57301-16140 |
