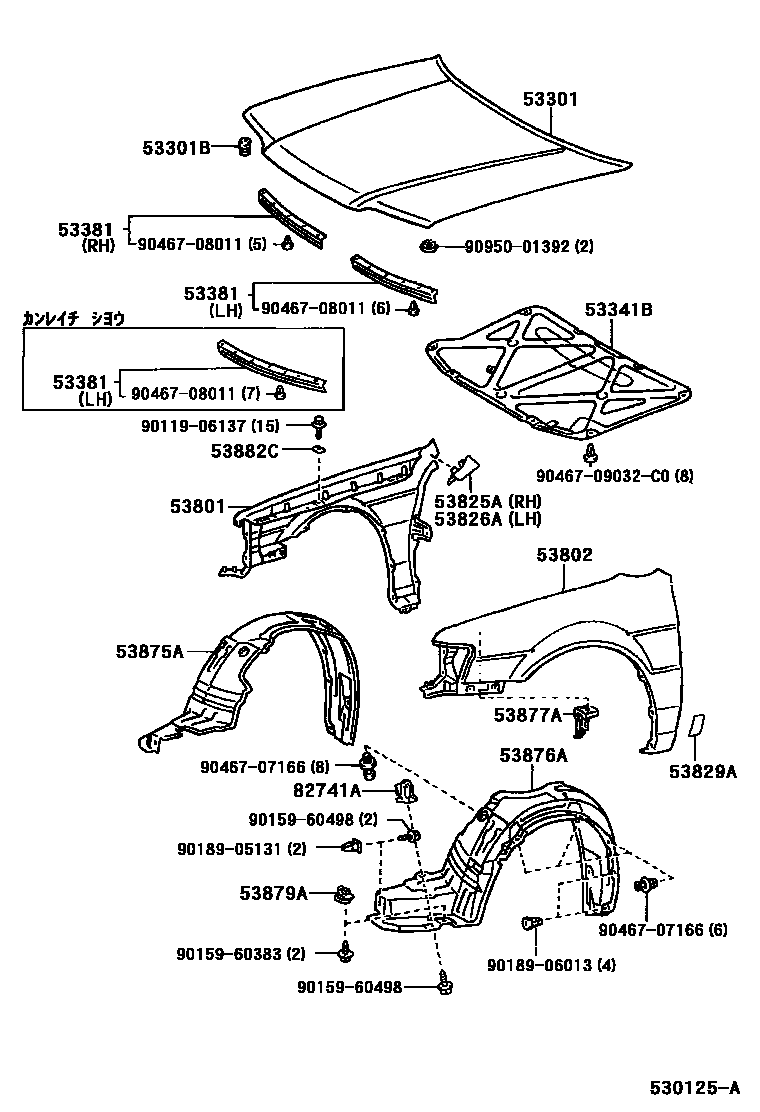

Toyota COROLLA 发动机盖和前翼子板 — Figure 5302
Toyota COROLLA EPC diagram 5302, 发动机盖和前翼子板, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53301 | Engine cover sub-assembly | 53301-16150 |
| 53301B | engine cover cushion | 90541-15010 |
| 53341B | engine cover gasket | 53341-16040 |
| 53381 | Engine cover to radiator bracket seal | 53381-16080 · 53382-16020 · 53382-16050 · 53382-16060 |
| 53801 | Right front fender sub-assembly | 53801-16430 |
| 53802 | Left front fender sub-assembly | 53802-16430 |
| 53825A | Right front fender protection piece | 53825-16030 |
| 53826A | Protection piece on left front fender | 53826-16030 |
| 53829A | Front fender lower protection parts | 53829-16010 |
| 53875A | Right front fender lining | 53875-16080 |
| 53876A | Left front fender lining | 53876-16080 |
| 53877A | Front fender splash guard bracket | 53877-16010 |
| 53879A | Front fender lining fixing parts | 53879-16010 |
| 53882C | Front fender main seal | 53882-16030 |
| 82741A | Engine room relay box bracket | 85999-16140 |
